There are two types of additional Soundsources loaded in the background that are automatically triggered depending on how a passage is performed. These consist of Release Noise articulations and Legato Soundsources (samples of actual Legato performances). Omnisphere Soundsources don’t currently use Legato Soundsources, but most Trilian Soundsources do. When using Omnisphere Library Integration, the Special Articulations section lets you control how these articulations are applied to the primary Soundsource.
Release Key Tracking
When the Release Key Tracking Button is enabled, the pitch of the Release Noises will track the keyboard. If it is disabled, the Release Noise will only play at the pitch of the root note.Transition Time
This fader affects the transition time between Sustain Soundsource and the Release Noise Soundsource. It controls how long the note-on samples decay after the note is released, so that the transition between the sustained samples and the release noise samples is musical.
At higher settings you will hear an overlap of the sustained sample release time, and the trigger of the release noise. If the fader is all the way to the left, there will be no overlap.
Release Soundsource Menu
Release Soundsources are triggered only after a note has been released.
This menu lets you select the Soundsource used for Release Noises. You can also select “No Release Soundsource” if none is desired. Some Soundsources have multiple sets of Release Noises (e.g. a softer set), and you can even use Release Noises from other Soundsources.;
NOTE: When Release Soundsources are used, the Amp Envelope Release Time affects the Release Soundsource.
This level fader is used to mix the level of the Release Soundsource. Use it together with the Soundsource Mix faders to set the balance. Experiment by mixing Release Noises louder for up-tempo tunes, and softer for tunes with slower tempos. If the fader is all the way to the left, no Release Soundsource will be heard. Moved all the way to the right, will make the Release Soundsource very prominent. A setting of around -3dB is usually a good starting point for a natural sound. Release Level works in conjunction with Mode.
NOTE: The Amp Envelope Release Time must be set long enough to hear the decay of the Release Noise Soundsource.
Amp Release and Release Soundsources
When no Release Soundsource is selected and you let go of the key, the Amp Envelope Release time has the same musical result that you would expect on any synth. For example, all the synth bass patches in Omnisphere and Trilian are programmed with no Release Soundsource, so they behave in this way.
If a Release Soundsource is selected, you will hear it replace the Sustain when the key is released, cross-fading at a rate that is dependent on the Transition Time setting. All the Electric and Acoustic Basses in Trilian are set-up this way and have their Release Times set quite high so that the full decay of the noise samples can be heard.
Transition Time is an additional control which affects how long the note-on samples decay after the note is released, so that the transition between the sustained samples and the release noise samples is musical.
When no release Soundsource is selected, you will hear the same note-on sample you initially triggered when you let go of the key, so the Amp release time has the same musical result that you would expect on any synth. For example, all the synth bass patches in Omnisphere and Trilian are programmed with no Release Soundsource, so they behave this way.
If a release Soundsource is selected, then you’ll hear that new Soundsource which consists of just the release noises triggered when you let go of the key. Note that the Amp release feature is still working, but is now affecting the amp release of the noise samples only. All the Electric and Acoustic Basses in Trilian are set-up this way and have their Release Times set quite high so that the full decay of the noise samples can be heard.
The Transition time is an additional control which affects how long the note-on samples decay after the note is released, so that the transition between the sustained samples and the release noise samples is musical.
Release Level Mode
There are several Release Noise Level modes from which to choose. They consist of settings that are set up for basses and various keyboard instrument types.
The Mode menu controls how much velocity and volume attenuation is applied to the Release Soundsource – depending on how long a note is sustained. Setting “Trilogy” has no velocity or volume attenuation (this is how release noises were handled in Trilogy). In the following Keyscape-related settings, the volume drops gradually the longer a note is held. Settings “E. Piano 1” thru “Belltone” provide various combinations of volume and velocity attenuation at different time intervals which are appropriate for different instrument types.

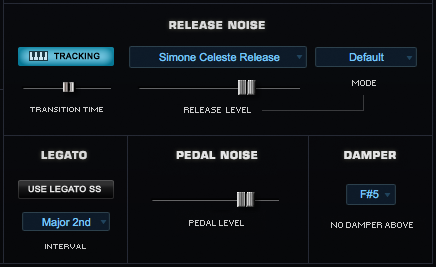

Use Legato SS
When Legato Soundsources are available and loaded, enabling the Use Legato SS button will automatically trigger these Special Articulation samples when playing legato-phrased notes within the specified Legato Interval, providing added realism and nuance to the instrument sound.
NOTE: Omnisphere sounds don’t currently include Legato Soundsources, so this control will have no effect on Omnisphere Soundsources. It is most useful when loading Trilian sounds into Omnisphere.
From this menu it is possible to select the interval within which the Legato Soundsources will be triggered. The possible ranges are from one semitone to two octaves.
In Trilian Soundsources where Legato Soundsources are available, the Use Legato SS feature enables very realistic hammer-on, pull-off and other types of performance phrasing. It allows for a very natural playing style, and great sounding Legato trills!
Enabling Use Legato SS will change the way the instrument responds to notes that are played Legato. Successive Legato notes that are played within the specified Legato Interval will behave much like a lead synth using SOLO mode. That is, the next note played will cut-off the previously played note. If you sustain the cut off note, it will sound again when you release the successive note. The key difference is that Legato Mode is actually polyphonic.
Notes which are played Legato, but are outside the specified Legato Interval, will not trigger the Use Legato SS behavior.
NOTE: In order to hear the Legato Soundsources, make sure “No Limit” is selected in the Sample Thinning – Legato menu. This will allow the Legato Soundsources to load, and can add a live, dynamic quality to the sound during performance.
NOTE: “Use Legato SS” is a Patch Common parameter. Changing its setting will affect both Layers in the Patch.
When Keyscape Soundsources that contain Pedal Noise are loaded, you can set the volume of the Pedal Noise with this slider. Selecting the APPLY FX button routes the Pedal Noise through the effects, along with the Sustains and Release Noises.
In the highest registers of certain Keyscape instruments, such as acoustic pianos, electric pianos, and celestes, there is less sustain, therefore no need for dampers. Here, you can set the highest note that uses the dampers. Notes above the selected pitch ring out, just like the real instrument.
