FM stands for Frequency Modulation. FM has been a feature on synthesizers since the 1960s, but it was popularized in Yamaha’s DX/TX series of digital synthesizers in the 1980s. It was well known for producing glassy, metallic sounds and for creating sound that are more harmonically complex.

FM is a form of audio synthesis where the timbre of one waveform, called the “carrier,” is changed by modulating it with the frequency of another waveform, called the “modulator” – hence Frequency Modulation synthesis.

FM can take simple waveforms, like sine waves, and make them sound quite complex. In Omnisphere, the exciting thing is that any Soundsource or DSP wavetable can be modulated with FM.

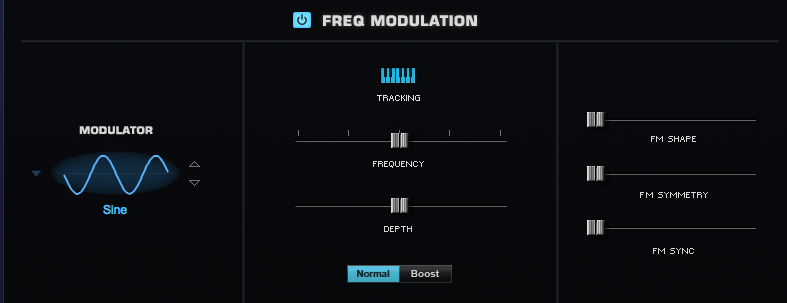

Each Layer in Omnisphere has a dedicated FM oscillator, which acts as the modulator. This dedicated oscillator can utilize different waveforms and its frequency, depth, shape, symmetry and hard sync can be modulated.

FM POWER SWITCH

Turns the FM modulating oscillator on or off.

FM MODULATOR

While many FM synthesizers use only Sine waves as modulators, Omnisphere can use any of its more than 400 wavetables. You can select them from the menu by clicking on the waveform display or by using the stepper arrows to the right of the image.

FM KEYBOARD TRACKING

The small music-keyboard switch enables or disables Keyboard Tracking. The Keyboard Tracking button determines whether the modulator oscillator tracks the keyboard.

If the Keyboard Tracking is on, the modulator oscillator will track the keyboard, meaning it will change pitch with each key. If Keyboard Tracking is off, the modulator will not change pitch with the keyboard, it will stay on the same pitch, no matter which key is played. This can be useful for more clangorous, noise-like sounds.

FM FREQUENCY

Controls the frequency of the modulator oscillator. Because the modulator is unheard, it does not change the pitch of the original Oscillator, but instead alters the timbral characteristics of the Oscillator’s waveform.

When this horizontal slider is set to just above the minimum, it can produce LFO-type pitch effects. Moving the slider towards the maximum increases the frequency and begins to oscillate fast enough that it will introduce timbre changes.

The notches along the FREQUENCY slider are markers for the frequency ratios that will produce the most musically-useful results.

These musically-useful values at the notches are decimal versions of the following ratios:

.5, 1:1, 1:1.5, 1:2, represented as .250, .500. .750 and 1.00.

Range 0.000 to 1.000

FM DEPTH

Controls the modulator’s depth. The higher the DEPTH slider is set, the more the dedicated modulator is affecting the timbre of the OSCILLATOR.

Range 0.000 to 1.000

FM DEPTH RANGE

When set to NORMAL, the DEPTH range is narrow but with more resolution, and is useful for adding a subtle FM-color to sounds. When set to BOOST, the DEPTH range is much higher, allowing you to produce more dramatic FM sounds.

FM SHAPE

Moving this slider sweeps through the wavetable selected as the Modulator, and depending on the wavetable, can create subtle or dramatic changes. The waveform display will dynamically change the waveshape as the FM SHAPE slider is moved.

FM SYMMETRY

FM SYMMETRY varies the span of the wavetable selected as the Modulator and is most commonly used for Pulse-Width modulation. This is especially useful when FM SYMMETRY is used as a modulation destination, as it adds shifting tone color and movement to the sound. The waveform display will dynamically change the waveshape as the FM SYMMETRY slider is moved.

FM HARD SYNC

Hard Sync was a feature on some analog synthesizers which gave the timbre a “throaty” diphthong type of sonic characteristic when swept. Hard Sync was popularized on synthesizers like the Prophet 5 and the early Oberheim synthesizers for a more metallic and aggressive timbre, and is especially useful for lead sounds. Hard Sync is achieved by using two oscillators, one which is the “master” and the other the “slave.” The slave is forced to restart its waveform when hard-synced with the master oscillator and the master controls the pitch. Any changes in the slave oscillator’s pitch will not change the pitch of the master – they change the overtones and harmonic structure instead. The waveform display will dynamically change the waveshape as the FM HARD SYNC slider is moved.

In the past, an oscillator would need to be sacrificed to get the hard-sync effect, but Omnisphere has a hidden, dedicated oscillator just for hard-sync. The hard-sync oscillator becomes the slave and the Oscillator’s waveform is the master.
