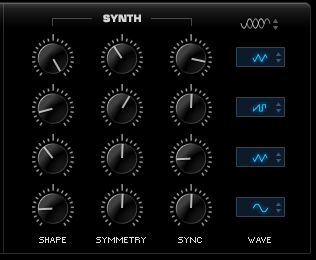

When the OSCILLATOR is set to SYNTH mode, all of the HARMONIA features in SAMPLE mode are available, as well as a second set of options that are unique to SYNTH mode. This special set of controls allows independent waveform control over each HARMONIA voice.

HARMONIA PHASE

Like the Phase Control option in UNISON, this is unique to the SYNTH Oscillators. The Phase Control allows the phase of the HARMONIA voices to be spread across a 180° range. The width of the range is controlled by stepping through the five Phase Control options, which range from in-phase to spread over 180°.

  • HARMONIA SHAPE

    This control is unique to SYNTH Oscillators. This is an offset of the SHAPE control on the MAIN OSCILLATOR page. Each of HARMONIA’s four voices can have its ownSHAPE offset.The center position indicates that the HARMONIA voice’s SHAPE is identical to the main Synth Oscillator’s SHAPE.

    NOTE: To learn more about the SHAPE functionality, check out the description in the OSC MAIN chapter.

    Range 0.000 to 1.000

    HARMONIA SYMMETRY

    This control is unique to SYNTH Oscillators. This is an offset of the SYMMETRY control on the MAIN OSCILLATOR page. Each of HARMONIA’s four voices can have its ownSYMMETRYoffset.The center position indicates that the HARMONIA voice’sSYMMETRYis identical to the main Synth Oscillator’sSYMMETRY.

    NOTE: To learn more about the SYMMETRY functionality, check out the description in the OSC SYMMETRY chapter.

    Range 0.000 to 1.000

    HARMONIA SYNC

    This control is unique to SYNTH Oscillators. This is an offset of the HARD SYNC control on the MAIN OSCILLATOR page. Each of HARMONIA’s four voices can have its own SYNC offset.The center position indicates that the HARMONIA voice’sSYNC is identical to the main Synth Oscillator’sHARD SYNC.

    NOTE: To learn more about the HARD SYNC functionality, check out the description in the OSC HARD SYNC chapter.

    Range 0.000 to 1.000

    HARMONIA WAVETABLE

    This control is unique to SYNTH Oscillators. The wavetable of each of the four HARMONIA voices can be set by clicking on this display, which will bring up the wavetable menu, or stepped through by using the steppers. All the wavetables available for the main oscillator can be used in each of the Harmonia voices (Noise is not available). When the display is set to OSC, means the HARMONIA wavetable will follow the primary Oscillator’s current wavetable selection.

    NOTE: To learn more about the wavetables functionality, refer to the Wavetables page.
