LIVE MODE offers five ways to switch or layer the eight Parts; via MIDI Notes, MIDI CC messages, MIDI Program Change, via the mouse or with Omni TR. The first three methods use MIDI Learn to setup how the Parts will respond. Although all methods can be active at the same time, only one can be displayed at a time on the interface. The SHOW MENU lets you choose which Part selection method’s information is displayed on the LIVE MODE page.
Part Numbers or MIDI Learn assignments are displayed in the boxes to the left of the Part names, either individually or grouped with the optional Mixer Controls. When the Mixer Controls are enabled, this information is displayed in the upper-right corner of the Mixer Controls box.
In the examples below, the Parts are illustrated with and without the Mixer Controls enabled.

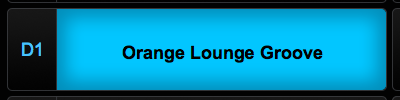

SHOW: Key Select
Displays the MIDI Note assigned to select the Part.

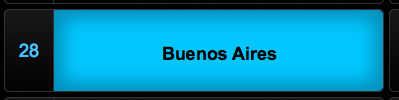

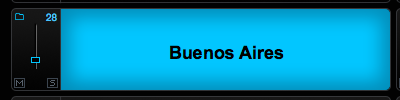

SHOW: MIDI CC
Displays the MIDI Control Change number assigned to select the Part.

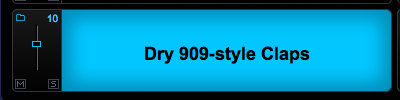

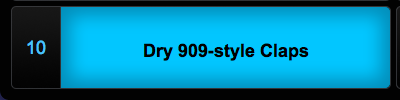

SHOW: Program Change
Displays the MIDI Program Change number assigned to select the Part.

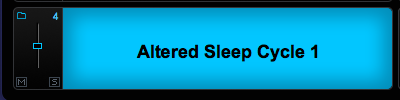

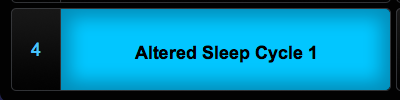

SHOW: Part Number
This is the default display, which corresponds to the actual Part Number.
