Brit-Vox

The *Brit-Vox *is modeled after the Vox AC30™ amplifier. This amp led the British Invasion of the 1960s! Comes with selectable, high-end mic and preamp combinations. Controls for the head and the cabinet which can be used separately or in combination with other amps. Mix and match heads and cabinets!

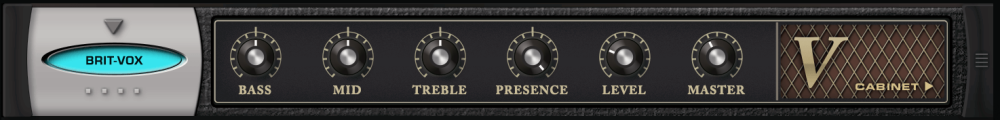

PAGE ONE CONTROLS

• BASS
  Bipolar control which cuts or boosts low frequencies.
  Range: 0.00 ~ 1.00

• MID
  Bipolar control which cuts or boosts mid-range frequencies.
  Range: 0.00 ~ 1.00

• TREBLE
  Bipolar control which cuts or boosts high frequencies.
  Range: 0.00 ~ 1.00

• PRESENCE
  Sometimes referred to as Brilliance or Edge, PRESENCE boosts very high frequencies and slightly rolls off the low end.
  Range: 0.00 ~ 1.00

• LEVEL
  The Level knob controls how much signal is sent though the “tubes” in the first gain stage. Higher settings can introduce a pleasing distortion.
  Range: -inf dB ~ 9.54 dB

• MASTER
  Master volume.
  Range: -inf dB ~ 9.54 dB

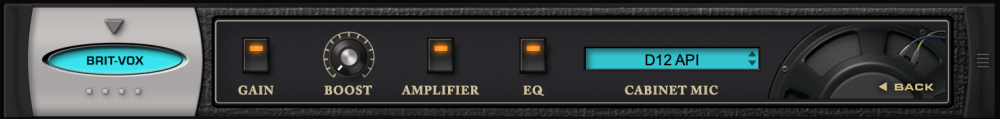

PAGE TWO CONTROLS

• GAIN
  The Gain switch introduces a gain boost into the guitar amp, like a “High Gain” switch.

• BOOST
  This is a tone control that when increased simultaneously boosts the high frequencies and attenuates the low end.
  Range: 0.00 ~ 1.00

• AMPLIFIER
  Enables or disables the amplifier model. If the switch is OFF, then none of the amplifier controls will be active. The only active control will be the Cabinet Mic menu.

• EQ
  Enables or disables the tone controls on Page One.

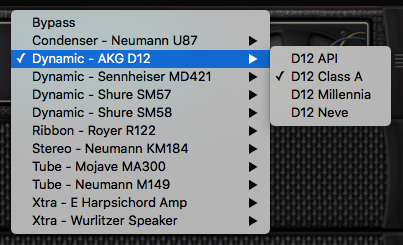

• CABINET MIC
  Drop-down menu for selecting an impulse response of the speaker cabinet using a variety of preamps and mics.
