Graphic EQ12

The Graphic 12-Band EQ is useful for tailoring a full spectrum audio source with fine controls of multiple bands for precision control. With the Q control, it’s more versatile than an average graphic EQ — it’s capable of comb filter FX and even basic speaker simulation effects.

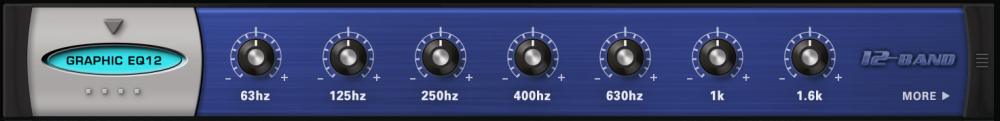

PAGE ONE CONTROLS

• 63Hz, 125Hz, 250Hz, 400Hz, 630Hz, 1k, 1.6k, 2.5k, 4k, 6.3k, 10k, 16k
  Each knob controls the boost or cut gain of the corresponding frequency.
  Range: -16 ~ +16 dB

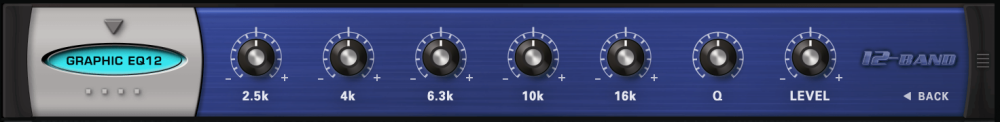

PAGE ONE CONTROLS

• Q
  Controls the Bandwidth of all twelve frequency bands.
  Range: 0.1 ~ 2

• LEVEL
  Adjusts the overall output.
  Range: 0 ~ 13 dB
