Chameleon Chorus

Featuring authentic emulations of three iconic units – the Roland Dimension-D®, the Yamaha SPX-90®, and the ARP Solina String Ensemble®, Chameleon Chorus combines three classic chorus models into a single unit. With its unique Chaos modulation, drive circuit, and stereo width control, you can bring these vintage chorus vibes into brand new territory.

• MINI-SLIDER
  Controls the mix of the dry signal and the processed signal. The number indicated is the amount of the signal that is processed.
  Range: 0 ~ 100%

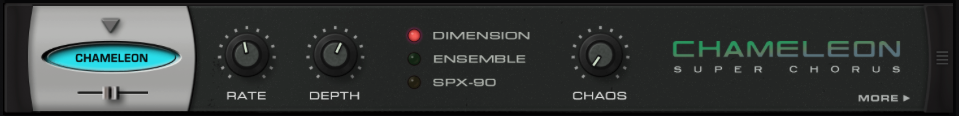

PAGE ONE CONTROLS

• RATE
  Sets the speed of the modulation.
  Range: 0.10 ~ 2.50 Hz

• SYNC ON
  If SYNC on the 2nd page is engaged, the selectable delay times will be in BPM:
  Range: 4× (4 bars) ~ 1/16 T
  (D = dotted value and T = Triplet)


• DEPTH

  Controls how much modulation is applied to the signal.

• MODE
  Selects between emulations of:
  -Roland Dimension D
  -Solina Ensemble
  -Yamaha SPX90

• CHAOS
  Adjusts the randomness of the LFOs used for the chorusing effect.
  Range: 0 ~ 100.0

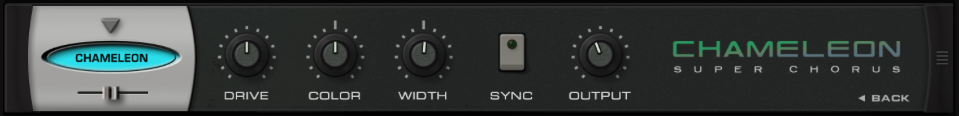

PAGE TWO CONTROLS

• DRIVE
  Controls the saturation/clipping stage placed before the input of the chorus model.
  _Range: –15.00 dB to +15.00 d_B

• COLOR

This control adjusts the LFO shapes and the amount of feedback used within the chorusing effect.
  Range: –100.0 ~ + 100.0

• WIDTH
  Sets the width of the stereo image.
  Range: –100.0 ~ + 100.0

• SYNC

  Synchronizes the modulation rate with your host’s tempo.
  Works in tandem with RATE on Page 1.

• OUTPUT

Adjusts the output level.
  Range: –15.00 dB to +15.00 dB
