Classic Tube 2-Band

The Classic Tube 2-Band is modeled after the Pultec EQP-1®—the legendary tube equalizer used on countless recordings since its creation in 1951. Recognized for its incredible low end and smooth sound, it features a design that allows boosting and attenuating the same frequency band, creating unique frequency curves. Further enhanced with a “Heat” mode to add punch and an “Ultra” mode for higher fidelity, it brings the iconic Pultec® sound to Omnisphere.

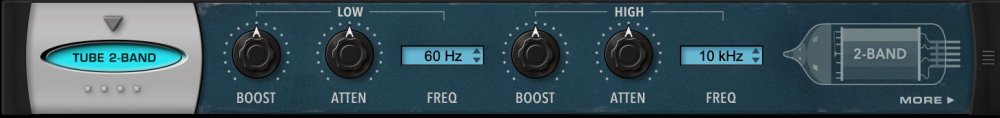

PAGE ONE CONTROLS

• [LOW] BOOST (Shelf)

Increases the amount of gain for the selected Low Frequency.
  Range: 0 dB ~ +18 dB

• [LOW] ATTEN (Shelf)
  Decreases the amount of gain for the selected Low Frequency.
  Range: 0 dB ~ –10.5 dB

• [LOW] FREQ

  Selects the Low Frequency to be boosted or attenuated.
  20, 30, 60, and 100 Hz

• [HIGH] BOOST (Peak)

Increases the amount of gain for the specified by the [HIGH] FREQ menu,
  Range: 0 dB ~ +18 dB

• [HIGH] ATTEN (Peak)
  Decreases the amount of gain for the frequency specified by the [HF] ATTEN FREQ menu on Page 2.
  Range: 0 dB ~ –10 dB

• [HIGH] FREQ

Selects the High Frequency to be boosted by the [HIGH] BOOST knob.
  _3, 4, 5, 8, 10, 12, and 16 kHz
_

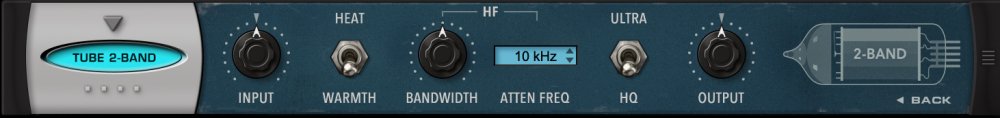

PAGE TWO CONTROLS

• INPUT

Controls the input gain. At higher settings, harmonics are introduced by non-linear components of the model.
  Range: 0– 15 dB ~ +15 dB

• HEAT / WARMTH
  This control switches between two types of saturation.

• [HF] BANDWIDTH
  Controls the bandwidth or “Q” of the [HIGH] BOOST filter.

• [HF] ATTEN FREQ (Shelf)
  Selects the frequency to be attenuated by the [HIGH] ATTEN control on Page 1.
  5, 10, or 20 kHz

• ULTRA / HQ
  Engages internal oversampling for the effect when ULTRA is selected.

• OUTPUT
  Controls the output gain.
  Range: 0– 15 dB ~ +15 dB
