Classic Tube Midband

Modeled after the Pultec MEQ-5®, it was built to shape frequencies between 200Hz and 7kHz. With two boosting and one attenuation band, it adds a unique musical color to anything that lives in the mid-range, like keyboards, guitars, and vocals. Set it to “Ultra” for high fidelity, or enhance transients with the special “Heat” mode.

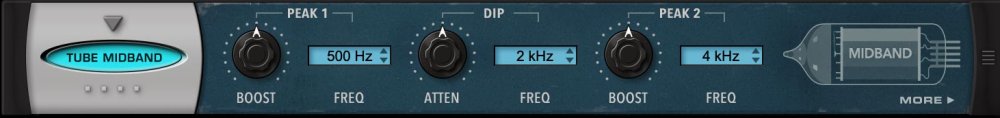

PAGE ONE CONTROLS

• [PEAK 1] BOOST

Increases the amount of gain for the selected frequency.
  Range: 0 dB ~ +12 dB

• [PEAK 1] FREQ
  Selects the frequency to be boosted.
  _200, 300, 500, 700, 1k Hz
_

• [DIP] ATTEN

  Decreases the amount of gain for the selected frequency.
  Range: 0 dB ~ –10 dB

• [DIP] FREQ

Selects the frequency to be attenuated by the [DIP] ATTEN control.
  200, 300, 500, 700, 1k, 1.5k, 2k, 3k, 4k, 5k, 7k Hz

• [PEAK 2] BOOST

Increases the amount of gain for the selected frequency.
  Range: 0 dB ~ +12 dB

• [PEAK 2] FREQ
  Selects the frequency to be boosted.
  _1.5, 2, 3, 4, 5 kHz
_

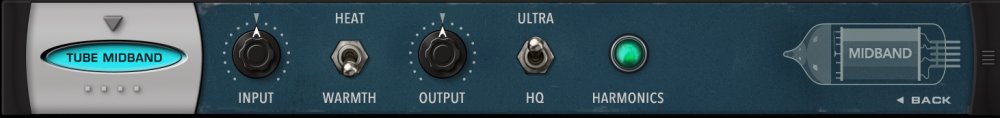

PAGE TWO CONTROLS

• INPUT

Controls the input gain. At higher settings, harmonics are introduced by non-linear components of the model.
  Range: –15 dB ~ +15 dB

• HEAT / WARMTH

This control switches between two types of saturation.

• OUTPUT
  Controls the output gain.
  Range: –15 dB ~ +15 dB

• ULTRA / HQ
  Engages internal oversampling for the effect when ULTRA is selected.

•
HARMONICS

  Harmonic distortion is introduced when inputs are overloaded and tube “saturation” occurs. The brightness of the light represents how much harmonic distortion is present.
