Main Controls

POWER SWITCH

This turns HARMONIA ON and OFF and is useful for comparison to the original sound.

MIX

This parameter controls the blend of the HARMONIA voices with the primary voice. MIX is modulatable.
Range 0.000 to 1.000

GAIN

This pull-down menu lets you adjust the output gain of the Harmonia voices. GAIN is modulatable.
Range -24dB to +10dB

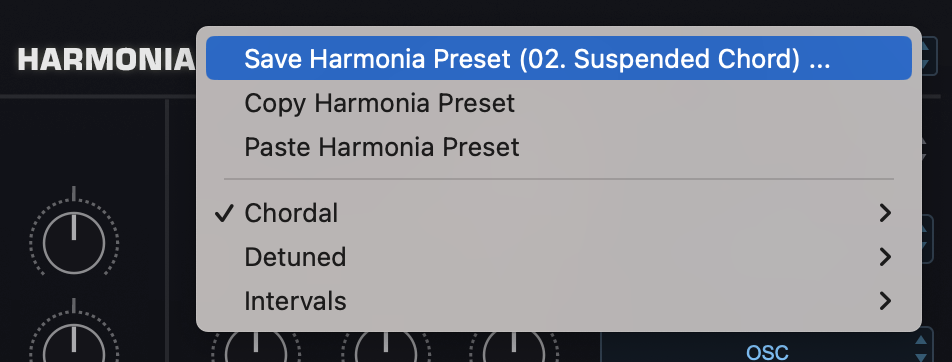

HARMONIA PRESETS

A complete set of HARMONIA presets can be accessed by selecting the menu arrow. Once a Preset haas been loaded, its name is displayed at the top of the Preset Menu.

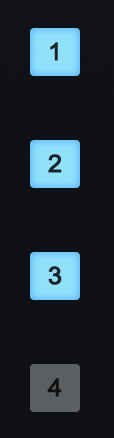

VOICES 1-4

Up to four HARMONIA voices can be stacked on top of the original voice by selecting the numbered switches in HARMONIA.

Keep in mind that adding more voices creates a higher demand on the CPU.

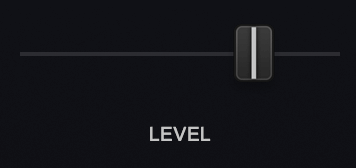

LEVEL

Controls the output level of the HARMONIA voices, so the effect of each voice can be subtle or pronounced.

The LEVEL controls are modulatable.
Range 0.000 to 1.000

PAN

Each of the HARMONIA voices can be positioned in the stereo field with the PAN controls.
Range 0.000 to 1.000

TRANSPOSE

Each of the HARMONIA voices can be transposed over a four-octave range. Clicking the INTERVAL switch will reveal a drop-down menu of half-step transpositions, either up or down by as much as two octaves.
Range -24 to +24

DETUNE

Each of the HARMONIA voices can be detuned by +/- 100 cents. When the knobs are centered, there is no detuning.

The DETUNE controls are modulatable.
Range 0.000 to 1.000

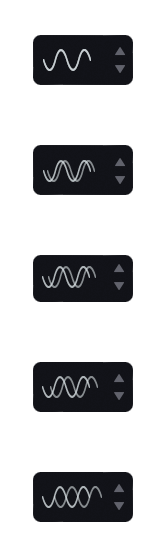

PHASE SCATTER

HARMONIA PHASE SCATTER randomizes the phase (Synth Mode) or Sample Start time (Sample Mode) of each of the Harmonia voices, eliminating the phasing artifact that can occur (particularly when using samples) when multiple voices with identical phases are triggered. Scatter excels when used in Sample Mode, because it allows you to have several versions of the same sample playing at the same time, but each one starts at a different point.
