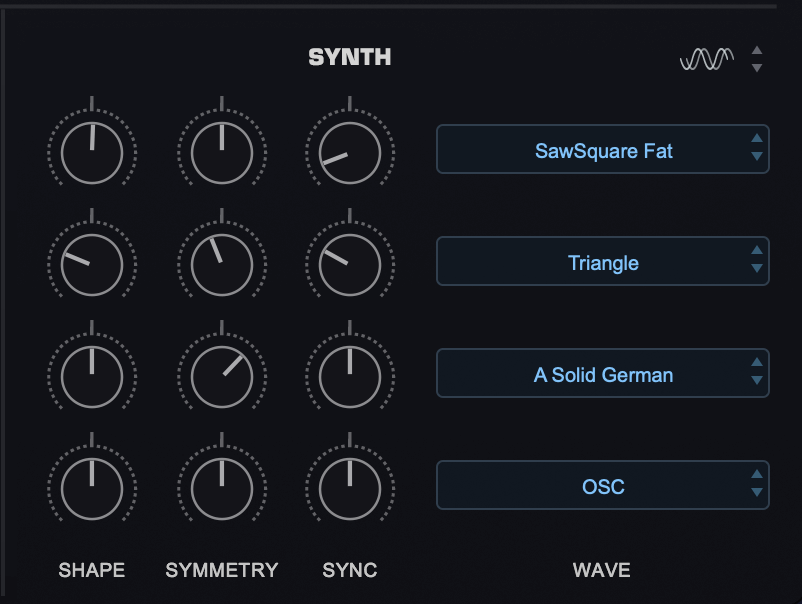

When the OSCILLATOR is set to SYNTH mode, all of the HARMONIA features in SAMPLE mode are available, as well as a second set of options that are unique to SYNTH mode. This special set of controls allows independent waveform control over each HARMONIA voice.

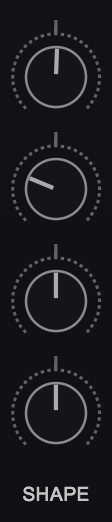

SHAPE
This control is unique to SYNTH Oscillators. This is an offset of the SHAPE control on the MAIN OSCILLATOR page. Each of HARMONIA’s four voices can have its own SHAPE offset. The center position indicates that the HARMONIA voice’s SHAPE is identical to the main Synth Oscillator’s SHAPE.
Range 0.000 to 1.000

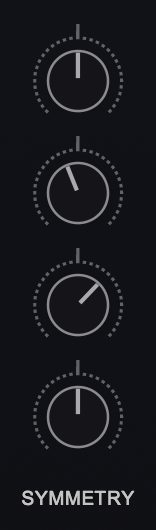

SYMMETRY
This control is unique to SYNTH Oscillators. This is an offset of the SYMMETRY control on the WAVE page. Each of HARMONIA’s four voices can have its own SYMMETRY offset. The center position indicates that the HARMONIA voice’s SYMMETRY is identical to the SYMMETRY in WAVE.
Range 0.000 to 1.000

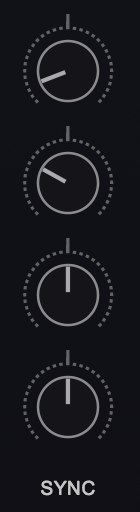

SYNC
The SYNC control is unique to SYNTH Oscillators. This is an offset of the HARD SYNC control on the WAVE page. Each of HARMONIA’s four voices can have its own SYNC offset.The center position indicates that the HARMONIA voice’s SYNC is identical to HARD SYNC in WAVE.
Range 0.000 to 1.000

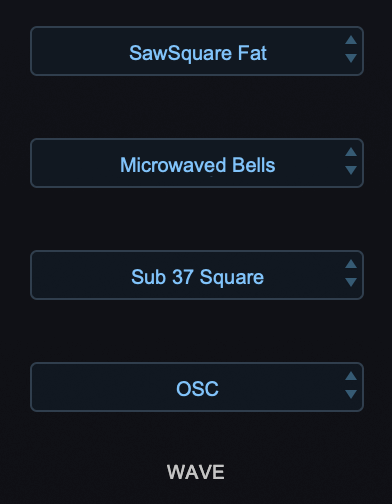

WAVETABLE
This control is unique to SYNTH Oscillators. The WAVETABLE of each of the four HARMONIA voices can be set by clicking on this display, which will bring up the WAVETABLE menu, or stepped through by using the steppers. All the wavetables available for the main Oscillator can be used in each of the HARMONIA voices (Noise is not available). When the display is set to OSC, this means the WAVETABLE will follow the primary Oscillator’s current wavetable selection.
