Gain and Headroom

GAIN

The GAIN control is at the end of the audio chain, and it allows the output level of the Part to be controlled in 1db increments. The default is -6db.

Range +10db ~ -24db.

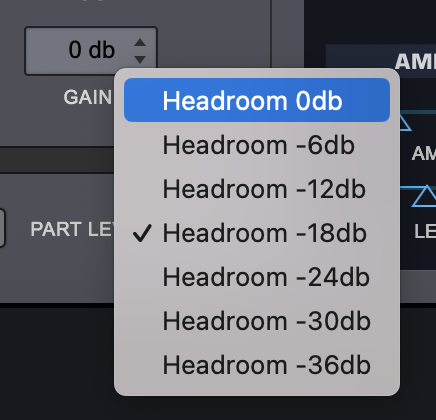

HEADROOM

The HEADROOM control is at the beginning of the audio chain and controls the output level of the Oscillator Sources, which affects how filters and effects react to the incoming signal. The level can be controlled in 6db increments.

Range 0db ~ –36db.
