Multiband Distortion

Sculpt your perfect distortion sound! The first of its kind, with Multiband Distortion you can have different classic stompboxes on each of the three assignable frequency bands. Featuring authentic modeling of distortion pedals and tube simulations, the possibilities are endless—from gentle warmth to full-blown chaos. Perfect for distortion fans!

• MINI-SLIDER
  Controls the balance of the dry signal and the processed (distorted) signal. The percentage indicates the amount of the signal that is distorted.
  Range: 0 ~ 100%

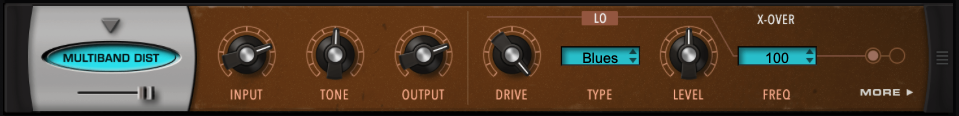

PAGE ONE CONTROLS

• INPUT GAIN

Controls the input level to the compressor.
  Range: –inf dB to +9.54 dB

• TONE

  Controls the tone of the distortion, creating darker results at low settings and brighter results at higher settings. TONE responds differently depending on the selected type.
  -For Triode, Pentode, and Special, the TONE control is a lowpass filter.
  Range: 6.5k ~ 20k Hz

• OUTPUT

  Controls the overall output.
  Range: –inf dB to +9.54 dB

• [LO] DRIVE
  Controls the amount of overdrive applied to the LO frequency band.
  Range: 0 ~ 10.0

• [LO] TYPE
  Selects the type of distortion, from stompboxes to tubes.

• [LO] LEVEL
  Controls the output of the LO frequency band only.
  Range: 0 dB to +30 dB

• X-OVER FREQ (Between LO and MID)
  Selects the frequency at which LO and MID intersect.
  Range: 20 Hz ~ 10 kHz

PAGE TWO CONTROLS

• [MID] DRIVE
  Controls the amount of overdrive applied to the MID frequency band.
  Range: 0 ~ 10.0

• [MID] TYPE
  Selects the type of distortion.

• [MID] LEVEL

Controls the output of the MID frequency band only.
  Range: 0 dB to +30 dB

• X-OVER FREQ (Between MID and HIGH)
  Selects the frequency at which MID and HIGH intersect.
  Range: 100 Hz ~ 18 kHz

• [HIGH] DRIVE

Controls the amount of overdrive applied to the HIGH frequency band.
  Range: 0 ~ 10.0

• [HIGH] TYPE
  Selects the type of distortion.

• [HIGH] LEVEL

  Controls the output of the HIGH frequency band only.
  Range: 0 dB to +30 dB
