Refraction Delay

Transform your audio into beams of sound! By combining delays with an inverse reverb, Refraction Delay can create anything from echo taps with a swelling aftermath to ethereal evolutions. Use the Inverse and Stretch controls to adjust the level and length of the “beams”, and the filter and Spread to shape the tone.

• MINI-SLIDER
  Controls the mix of the dry signal and the processed signal. The number indicated is the amount of the signal that is processed.
  Range: 0 ~ 100%

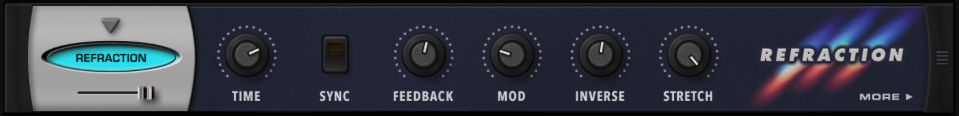

PAGE ONE CONTROLS

• TIME
  Sets the delay time.
  Range: 0.001 sec ~ 5.000 sec
  If the Sync button is engaged, the selectable delay times will be in BPM:
  Range: 1/16 ~ 2/1
  (D = dotted value and T = Triplet)


• SYNC

  Synchronizes the delay times with your host’s tempo.

• FEEDBACK

  Controls the amount of repetitions fed back into the unit for echo repeats.
  This control is dependent on the DAMP settings on Page 2.
  Range: 0.00% ~ 100.00%

• MOD
  Adjusts the speed of a subtle time modulation.
  Range: 0.08 Hz ~ 8.80 Hz

• INVERSE
  Adds delays that are reversed copies of the original audio.
  Range: 0.00% ~ 100.00%

• STRETCH
  Adds length (time) to the inverted delays.
  Range: 0.10 ~ 1.50 seconds

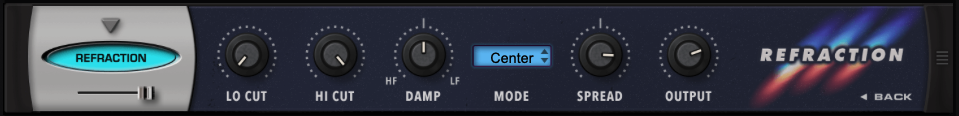

PAGE TWO CONTROLS

• LO CUT

  Cuts low frequencies below a selectable point, allowing high frequencies to pass.
  Range: 30 Hz ~ 720 Hz

• HI CUT

  Cuts high frequencies above a selectable point, allowing low frequencies to pass.
  Range: 720 Hz ~ 18 kHz

• DAMP

Use this control to filter out highs or lows in the delays. This can have a dramatic effect on the amount of apparent repeats set by the FEEDBACK control on Page 1.
  -The DAMP knob controls LP/HP filters in the feedback path of the delay.
  -The filters are placed in the feedback loop, so the amount of filtering/damping increases with each feedback repeat.
  Range:
  20 to 20k Hz Lowpass –100.00 ~ 0.00%
  20 to 2k Hz Highpass 0.00 ~ +100.00%

• MODE

  Selects the stereo operation of the delays.
  Center, Ping L, Pong R

• SPREAD

Adjusts the stereo width of the sound by changing the amount of delay time offset between the left and right channels.
  Range Left of Center Detent: Mono ~ 100% Stereo
  Range Right of Center Detent: 1ms ~ 100ms Stereo

• OUTPUT

  Adjusts the output level.
  _Range: –inf dB to +9.54 dB _
