Ring of Fire

Designed for the bold and adventurous, Ring of Fire taps into the experimental side of sound design with a cascading series of ring modulators followed by a distortion module with 8 distortion types. From classic sci-fi to total sonic corruption, Ring of Fire explores the unconventional!

• MINI-SLIDER
  Controls the balance of the dry signal and the processed signal. The percentage indicates the amount of the signal that is processed.
  Range: 0 ~ 100%

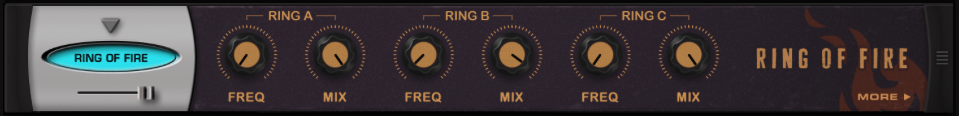

PAGE ONE CONTROLS

• [RING A] FREQ
  Controls the frequency of the first modulator.
  Range: 1.0 kHz ~ 53.7 Hz

• [RING A] MIX
  Controls the level of the first modulator.
  Range: 0 ~ 100%

• [RING B] FREQ
  Controls the frequency of the second modulator.
  Range: 1.0 kHz ~ 900.9 Hz

• [RING B] MIX
  Controls the level of the second modulator.
  Range: 0 ~ 100%

• [RING C] FREQ
  Controls the frequency of the third modulator.
  Range: 1.0 kHz ~ 2000.8 Hz

• [RING C] MIX
  Controls the level of the third modulator.
  Range: 0 ~ 100%

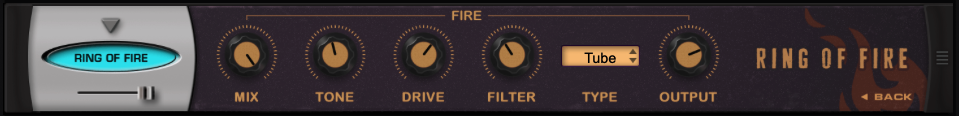

PAGE TWO CONTROLS

• MIX
  Controls the amount of the FIRE channel that is blended with the RING channel.
  Range: 0% ~ 100%

• TONE
  Controls the color of the distortion, creating darker results at lower settings and brighter results at higher settings. TONE responds differently depending on the selected distortion TYPE.
  Range: 6.5 kHz ~ 20 kHz

• DRIVE
  Controls the amount of distortion applied to the signal from
  Range: 0 ~ 100%

• FILTER
  Controls the cutoff frequency of a lowpass filter.
  Range: 100 Hz ~ 5 kHz

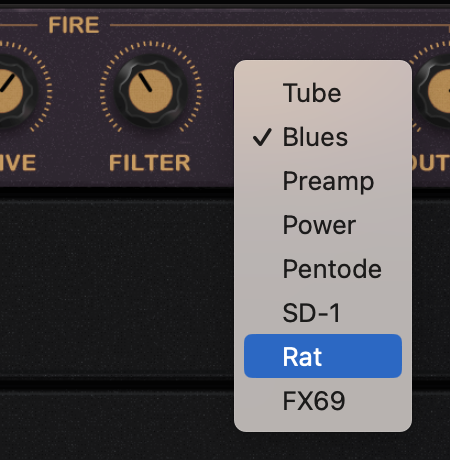

• TYPE
  Selectable menu lets you choose the distortion type.

• OUTPUT

  Controls the overall output level.
  Range: –inf dB ~ 9.54 dB
