CC Mode

When CC Mode is selected, Part Regions can be switched or cross-faded using MIDI Control Change messages from a MIDI hardware slider, knob, or wheel. Each Region can be mapped to specific values across the MIDI CC’s range. The MIDI CC number that STACK MODE uses is chosen from the MIDI CC menu in the top left of the STACK MODE page.

All of the Regions will respond to selected CC number. The current MIDI CC value is displayed as a single vertical blue bar in the footer of the Grid and will update as you move the control.

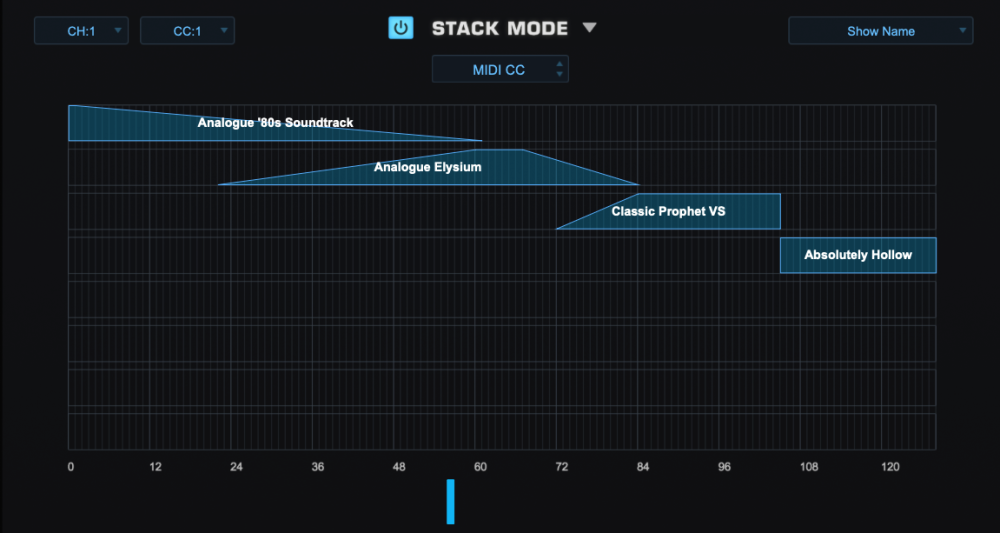

• In the example above, CC1 (Mod Wheel) is chosen.
• In the bottom range of the wheel, you will only hear “Analogue ’80s Soundtrack.”
• As you push the Mod Wheel up past 24, the sound crossfades to “Analogue Elysium.”
• In the middle range, as you move the wheel between 60 and 72, you will only hear “Analogue Elysium.”
• Between 72 and 84, the sound will crossfade into “Classic Prophet VS.”
• When the wheel 105, the sound will abruptly switch to “Absolutely Hollow.”


NOTE: When using CC MODE, all Parts in the Grid will be triggered simultaneously, even if their Regions are outside the mapped range and are not outputting audio. Therefore, this feature can put a high demand on the CPU on your system.
