Setup
To control Omnisphere using the Argon8, you’ll need to do the following:
- Using a USB cable, connect the Argon8 h to your computer.
- Enable “Argon8” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
- Activate the Argon8 Hardware Profile in Omnisphere 3 or later.
HOST CONNECTION

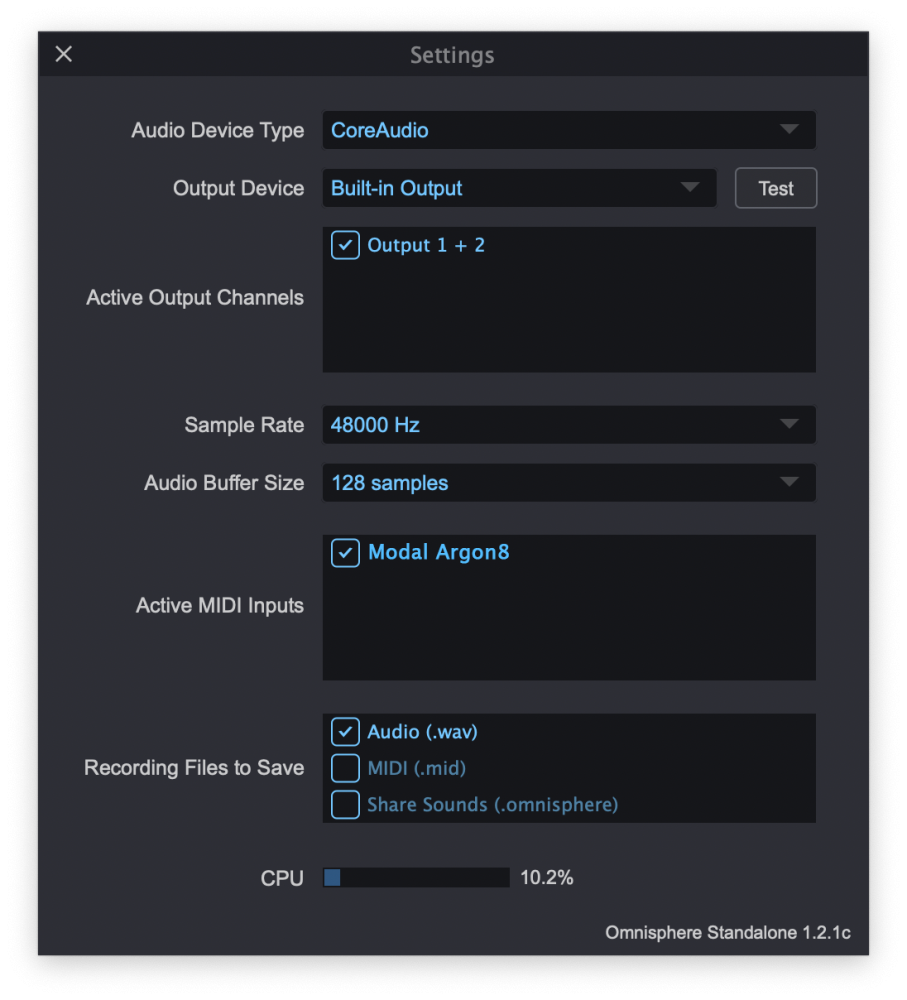

Open your host (DAW, Standalone, etc.) and make sure the Argon8 is enabled as a MIDI input device.
 |
 |
| Omnisphere Standalone | Pro Tools |
OMNISPHERE SETUP
Open Omnisphere and from the header, select the HW menu button:

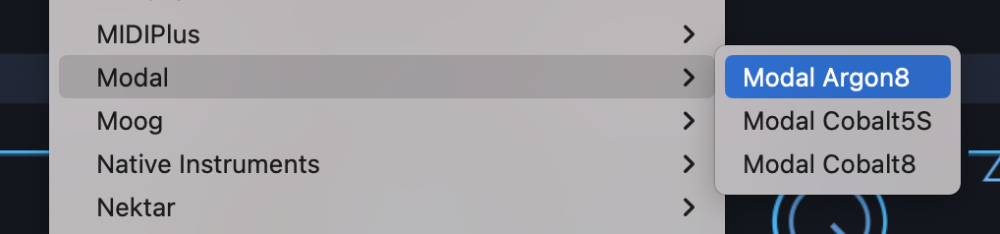

From the drop-down menu, select “Modal>Modal Argon8” to activate that Hardware Profile.
LOADING OMNISPHERE PATCHES FROM THE Argon8
If you want the load Omnisphere Patches from the Argon8, follow these steps:
Profile Notes
EFFECTS
- FX1 is assigned to Global Ambience and Global Limiter, and does not support custom selection of FX types. Use FX2 and FX3 to select any of the available effect types.
- Shift FX parameters are not supported.
Unassigned Controls
The following Argon8 controls have no effect on Omnisphere:
- Shift FX parameters
- Play
- Record
- Mute
- Init
- Patch
- Save
- Page Param
- Shift + Audio In
- Shift + Mode
- Shift + Seq
- Shift + Random
- Shift + Anim1
- Shift + Anim2
- Shift + Anim3
- Shift + Bank
Troubleshooting
Not working? Here are some things to try:
- Make sure the MIDI Channel is set to Ch.1.
- If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Argon8 matches the MIDI channel of the Omnisphere part you want to control.
- Make sure your DAW is configured to correctly route the MIDI output of the Argon8 to the MIDI channel assigned to the desired Part in Omnisphere.
