Omnisphere 3 Hardware Guide

Setting up the Cobalt5S

Setup

To control Omnisphere using the Cobalt5S, you’ll need to do the following:

  • Using a USB cable, connect the Cobalt5S to your computer.
  • Enable “Cobalt5S” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
  • Activate the Cobalt5S Hardware Profile in Omnisphere 3 or later.

HOST CONNECTION

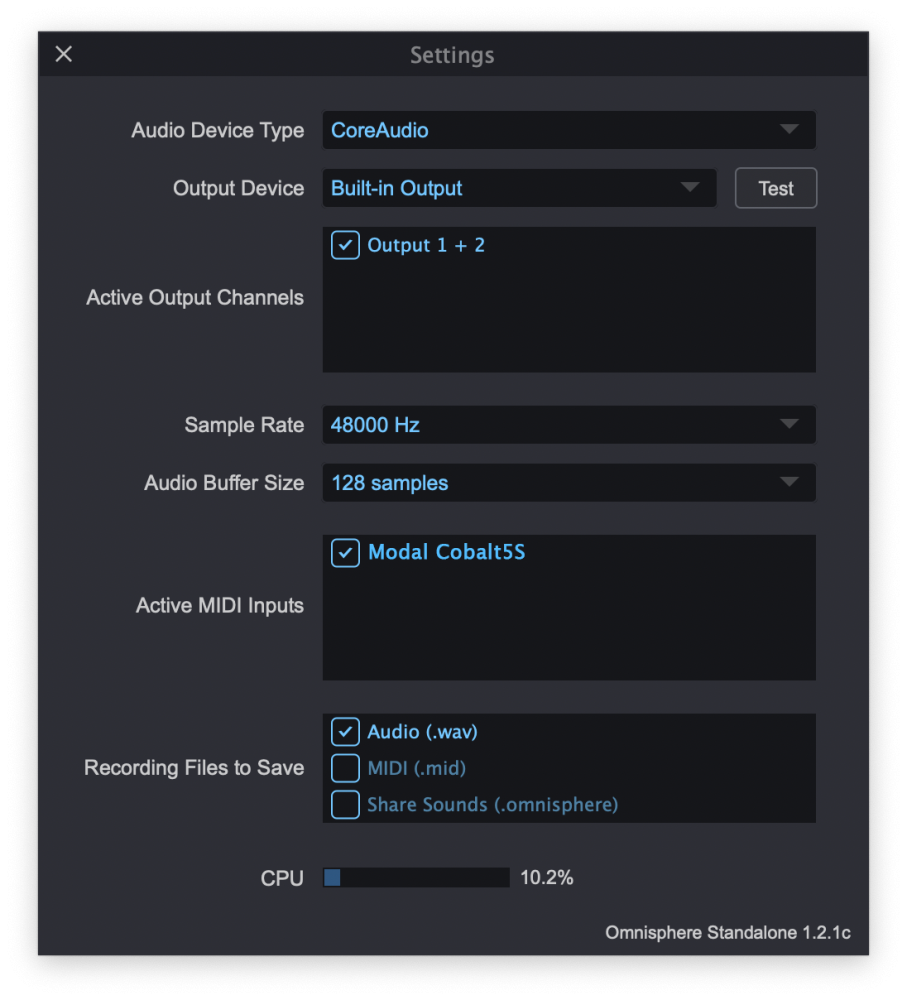

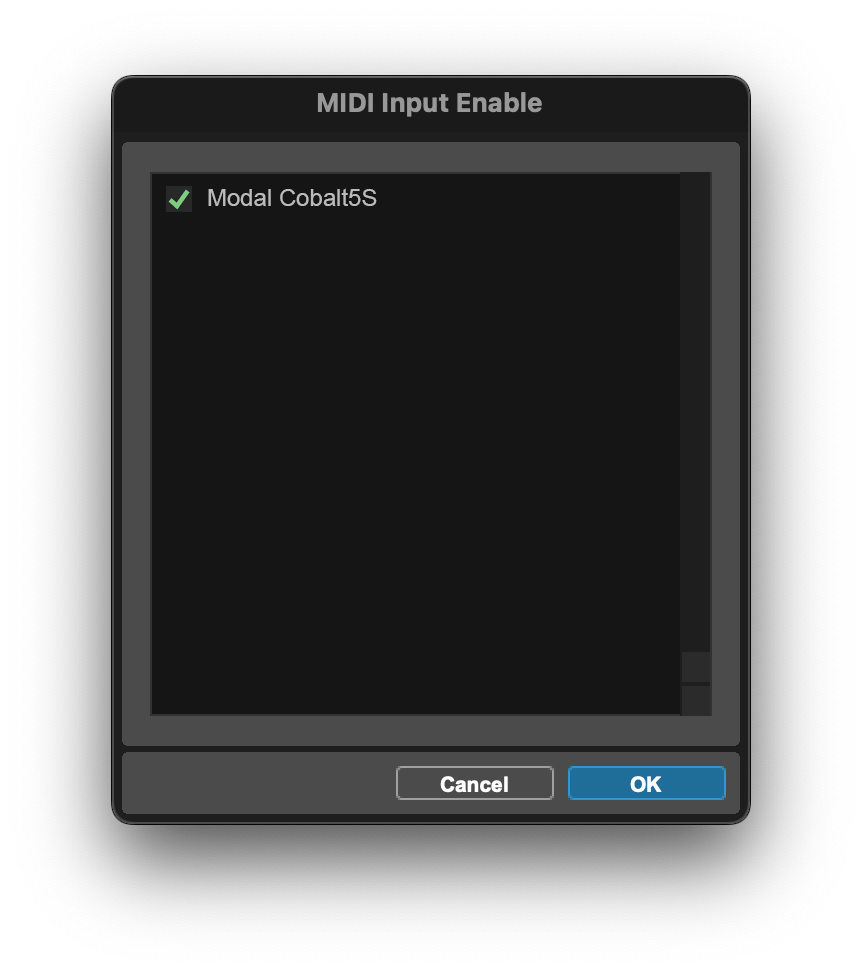

Open your host (DAW, Standalone, etc.) and make sure the Cobalt5S is enabled as a MIDI input device.
Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “Modal>Modal Cobalt5S” to activate that Hardware Profile.

Profile Notes

  • FX1 is assigned to control Omnisphere’s Analog Chorus, instantiated in the Common Rack.
  • FX2 is assigned to control Omnisphere’s Global Ambience.

Unassigned Controls

The following Cobalt5S controls have no effect on Omnisphere:

  • Save
  • Init
  • Rand
  • Seq
  • Patch
  • Bank

Troubleshooting

Not working? Here are some things to try:

  • Make sure the MIDI Channel is set to Ch.1.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Cobalt5S matches the MIDI channel of the Omnisphere part you want to control.
  • Make sure your DAW is configured to correctly route the MIDI output of the Cobalt5S to the MIDI channel assigned to the desired Part in Omnisphere.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
