Omnisphere 3 Hardware Guide

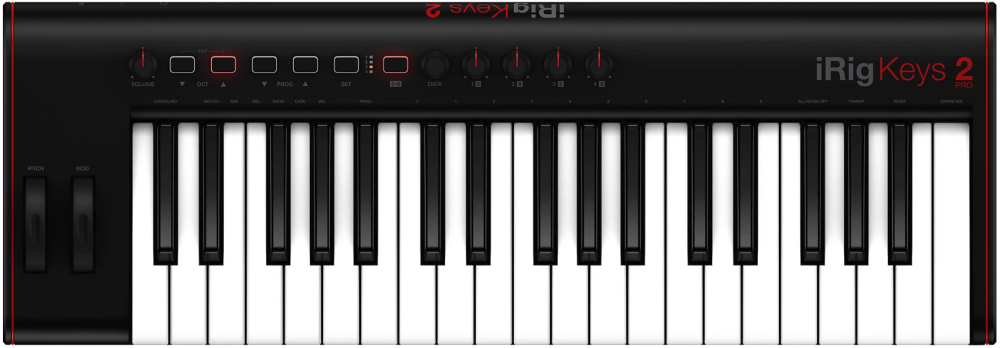

Setting Up the iRig Keys 2 Pro

When using the IK Multimedia iRig Keys 2 Pro to control Omnisphere, the knobs on the iRig Keys 2 Pro are assigned to the following Omnisphere parameters:

First Bank:

  • Knob 1 (CC#12) – Global Controls Cutoff
  • Knob 2 (CC#13) – Global Controls Resonance
  • Knob 3 (CC#14) – Global Controls Filter Envelope Amount
  • Knob 4 (CC#15) – Global Controls Vibrato Depth

Second Bank:

  • Knob 5 (CC#16) – Global Controls Ambience Amount
  • Knob 6 (CC#17) – Global Controls Ambience Length
  • Knob 7 (CC#18) – Global Controls Unison
  • Knob 8 (CC#19) – Global Controls Glide

Setup

To control Omnisphere using the iRig Keys 2 Pro, you’ll need to do the following:

  1. Connect the iRig Keys 2 Pro to your computer via USB.
  2. Set up the iRig Keys 2 Pro to control Omnisphere.
  3. Enable the iRig Keys 2 Pro as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the iRig Keys 2 Pro Hardware Profile in Omnisphere 3 or later.

IRIG Keys 2 Pro SETUP

Omnisphere relies on the factory default settings of a User SET on the iRig Keys 2 Pro.

  • If you haven’t customized any User SET on the iRig Keys 2 Pro, then you can move on to the next steps under “HOST CONNECTION.”
  • If you have customized one of the FOUR User SETs on the iRig Keys 2 Pro, you can simply press the [SET] button until the LED of any unused SET is lit.
  • If you have customized all four User SETs then you’ll need to reporgram one of the SETs on iRig Keys 2 Pro and assign each knob to their factory default settings listed at the top of the page.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the iRig Keys 2 Pro is enabled as a MIDI input device.

OMNISPHERE SETUP

  • Open Omnisphere and from the header, select the HW menu button.

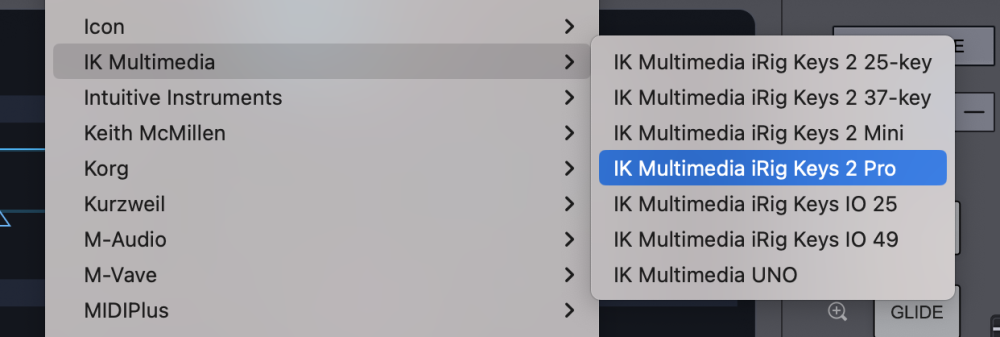

  • From the drop-down menu, select “IK Multimedia > IK Multimedia iRig Keys 2 Pro” to activate the iRig Keys 2 Pro hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the iRig Keys 2 Pro?
  • Make sure your DAW is configured to correctly route the MIDI output of the iRig Keys 2 Pro to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the iRig Keys 2 Pro matches the MIDI channel of the Omnisphere Part you want to control.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
