Setup
To control Omnisphere using the Roland Jupiter-Xm you’ll need to do the following:
- Connect the Jupiter-Xm to your computer via USB.
- Download and install the Jupiter-Xm USB driver.
- Set up the Jupiter-Xm panel controls to transmit MIDI.
- In the Jupiter-Xm, make sure that “Model Bank” is set to 1 (Jupiter).
- In the Jupiter-Xm, make sure DUAL is disabled.
- Enable “Jupiter-Xm” as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
- Activate the Jupiter-Xm Hardware Profile in Omnisphere 3 or later.
NOTE: If you are attempting to use this Hardware Profile on Windows, please read this first.
USB DRIVER
Check to see if the necessary USB driver has already been installed by opening up the Omnisphere Standalone (or your preferred DAW) and verify the Jupiter-Xm is on your list of MIDI inputs.
If the Jupiter-Xm is not on your list of MIDI inputs, access the Roland website to download and install the latest Jupiter-Xm MIDI Driver.
MIDI OUTPUT SETUP
- Select the Menu button on the Jupiter-Xm.
- Press the “ENTER” button too access the “SYSTEM” page.

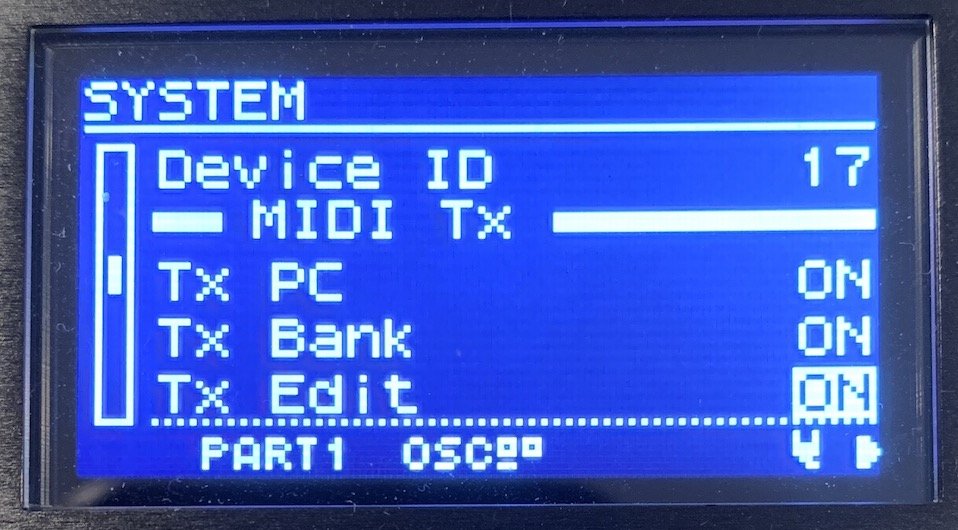

- Scroll down to select the page MIDI TX: TX Edit and make sure that’s set to “ON.”
- Press the “EXIT” button.
MODEL SET UP
In the Jupiter-Xm, press the button “MODEL BANK” and verify button number 1 (Jupiter) is lit.
DISABLE DUAL

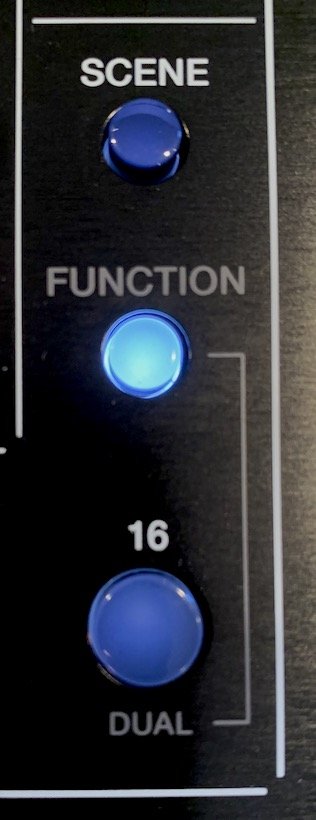

In the Jupiter-Xm, press the “FUNCTION” button and make sure button number 16 (Dual) is disabled.
HOST CONNECTION

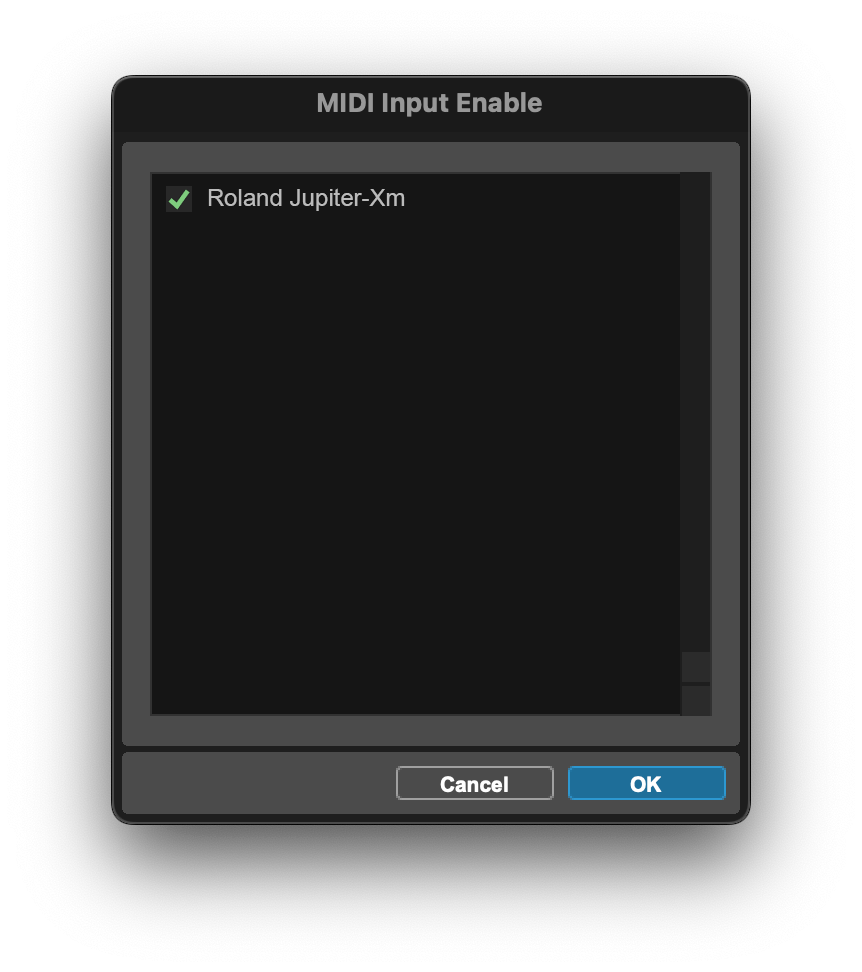

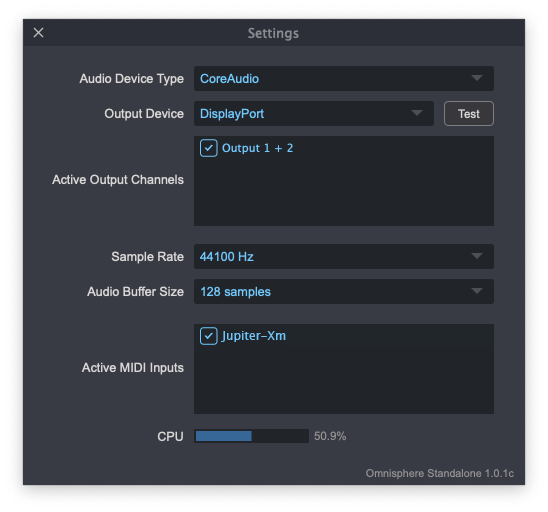

Open your host (DAW, Standalone, etc.) and make sure the Roland Jupiter-Xm is enabled as a MIDI input device.
 |
 |
| Omnisphere Standalone | Pro Tools |
OMNISPHERE SETUP
Open Omnisphere and from the header, select the HW menu button:

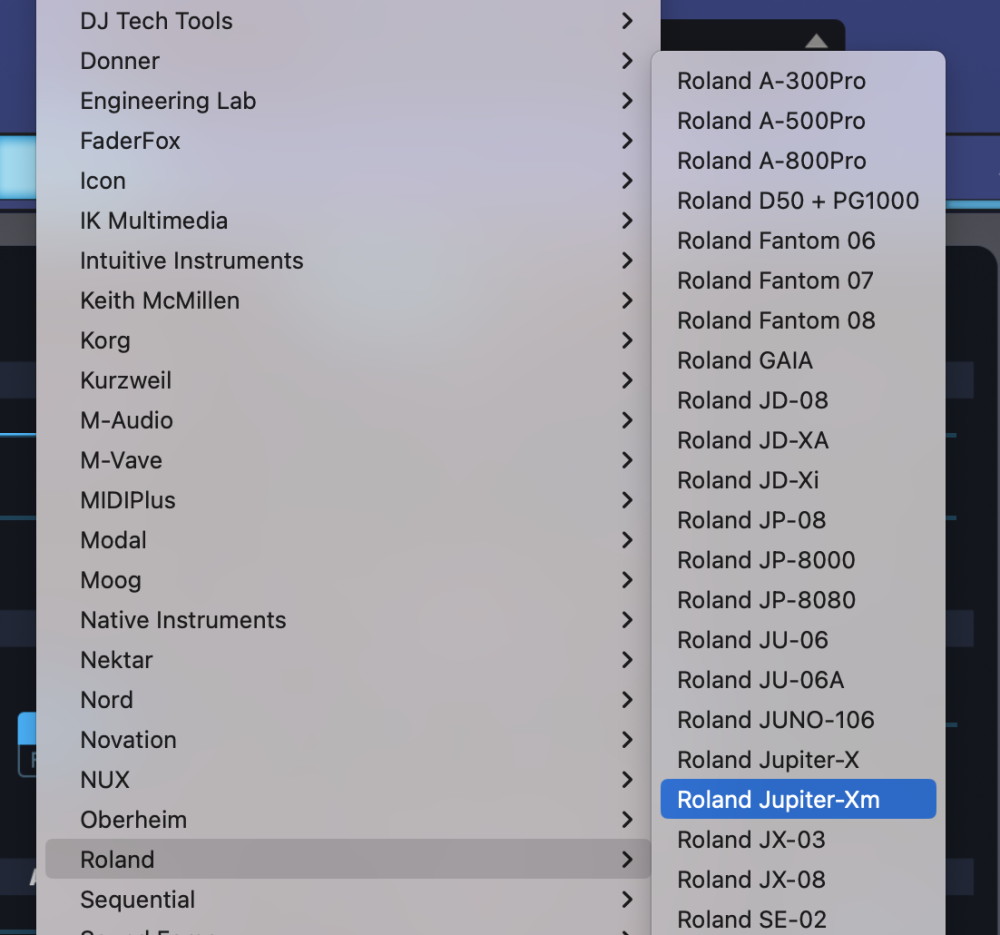

From the drop-down menu, select “Roland>Roland Jupiter-Xm” to activate that Hardware Profile.
Most controls in the Jupiter-Xm send System Exclusive (SysEx) messages. For Omnisphere to support this type of messages, the hardware synth must be connected to the computer before you select the corresponding Hardware Profile from the profile menu. If it’s not connected, you may see the following message:
If you connect the synth later, select “None” from the HW menu, then select the profile again.
Profile Notes
- When set to modulate PITCH, LFO1 DEPTH in the Jupiter-Xm is assigned to Global Vibrato Depth in Omnisphere.
Unassigned Controls
The following Jupiter-Xm controls have no effect on Omnisphere:
- Master Volume
- Controls not available in the “Jupiter” model
Troubleshooting
Not working? Here are some things to try:
- If you are trying to use the Jupiter-Xm on Windows, please read this.
- Is your DAW receiving MIDI from the Jupiter-Xm?
- Is the Jupiter-Xm set up to send MIDI from the front panel?
- If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Jupiter-Xm matches the MIDI channel of the Omnisphere Part you want to control.
- Make sure your DAW is configured to correctly route the MIDI output of the Jupiter-Xm to the MIDI channel assigned to the desired Part in Omnisphere.
- Are you using a USB hub? Try connecting your Jupiter-Xm or MIDI Interface directly to your computer.
