Omnisphere 3 Hardware Guide

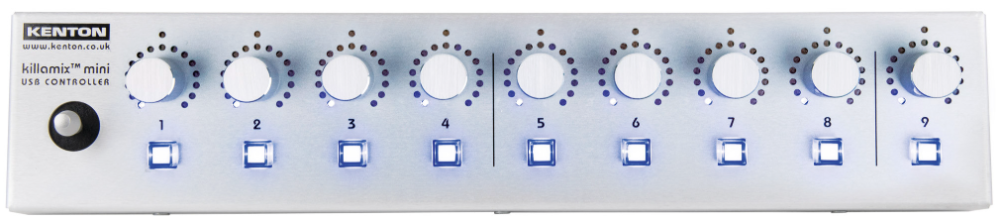

Setting Up the Killamix Mini

When using the Kenton Killamix Mini to control Omnisphere, the knobs and buttons on the Killamix Mini are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#01) – Mod Wheel
  • Knob 2 (CC#02) – Global Controls Cutoff
  • Knob 3 (CC#03) – Global Controls Resonance
  • Knob 4 (CC#04) – Global Controls Filter Envelope Amount
  • Knob 5 (CC#05) – Global Controls Vibrato Depth
  • Knob 6 (CC#06) – Global Controls Ambience Amount
  • Knob 7 (CC#07) – Global Controls Ambience Length
  • Knob 8 (CC#08) – Global Controls Unison
  • Knob 9 (CC#09) – Global Controls Glide
  • Button 1 (CC#10) – Browser Down / Next Patch
  • Button 2 (CC#11) – Browser Up / Previous Patch

Setup

To control Omnisphere using the Killamix Mini, you’ll need to do the following:

  1. Connect the Killamix Mini to your computer via USB.
  2. Enable the Killamix Mini as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  3. Activate the Killamix Mini Hardware Profile in Omnisphere 3 or later.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the Killamix Mini is enabled as a MIDI input device.

OMNISPHERE SETUP

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Kenton > Kenton Killamix Mini” to activate the Killamix Mini hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Killamix Mini?
  • Make sure your DAW is configured to correctly route the MIDI output of the Killamix Mini to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Killamix Mini matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs on the Killamix Mini sending the correct MIDI CC messages to control Omnisphere? A simple way to check this is by recording knob movement in your DAW.

NOTE: If you need to revert the knobs and buttons back to their default MIDI CC#s, please refer to the Killamix Mini user manual.
