Omnisphere 3 Hardware Guide

Setting Up the Komplete Kontrol M32

When using the NI Komplete Kontrol M32 to control Omnisphere, the knobs on the Komplete Kontrol M32 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#14) – Global Controls Cutoff
  • Knob 2 (CC#15) – Global Controls Resonance
  • Knob 3 (CC#16) – Global Controls Filter Envelope Amount
  • Knob 4 (CC#17) – Global Controls Vibrato Depth
  • Knob 5 (CC#18) – Global Controls Ambience Amount
  • Knob 6 (CC#19) – Global Controls Ambience Length
  • Knob 7 (CC#20) – Global Controls Unison
  • Knob 8 (CC#21) – Global Controls Glide

Setup

To control Omnisphere using the Komplete Kontrol M32, you’ll need to do the following:

  1. Connect the Komplete Kontrol M32 to your computer via USB.
  2. Set up the Komplete Kontrol M32 to control Omnisphere.
  3. Enable the Komplete Kontrol M32 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the Komplete Kontrol M32 Hardware Profile in Omnisphere 3 or later.

KOMPLETE KONTROL M32 SETUP

Omnisphere relies on the default settings of the M32 while in MIDI Mode.

  • You can enable “MIDI Mode” on the Komplete Kontrol S25 by pressing the [SHIFT] button and [PLUG-IN/ MIDI] button.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the Komplete Kontrol M32 is enabled as a MIDI input device.

OMNISPHERE SETUP

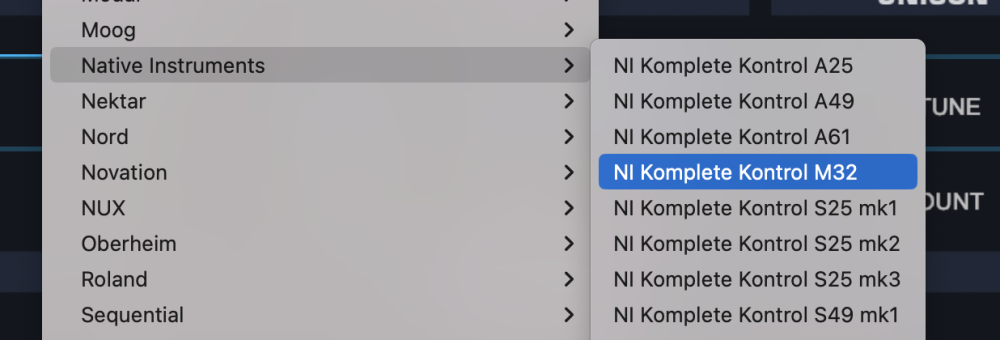

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Native Instruments > NI Komplete Kontrol M32” to activate the Komplete Kontrol M32 hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Komplete Kontrol M32?
  • Make sure your DAW is configured to correctly route the MIDI output of the Komplete Kontrol M32 to the MIDI channel assigned to the desired part in Omnisphere.
  • -If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Komplete Kontrol M32 matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs on the Komplete Kontrol M32 sending the correct MIDI CC messages? See the list at the top of the page for the correct MIDI CC numbers.
