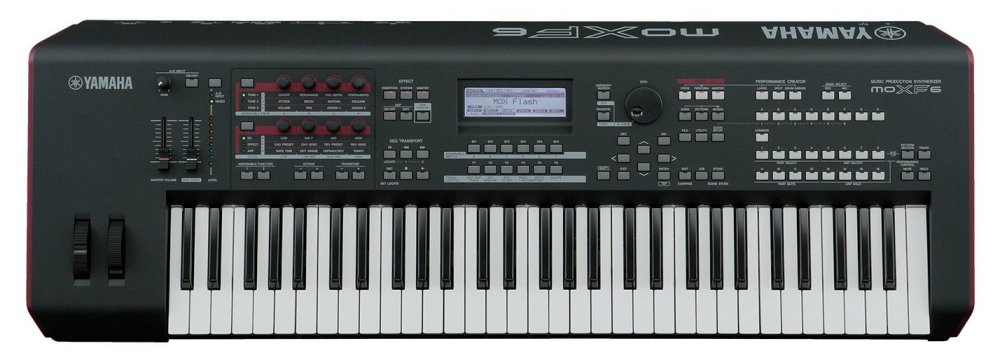

The Yamaha MOXF series are extremely powerful workstations that can be used for a wide variety of musical applications, from composition and recording to live performance, including the ability to control external devices. When using any of the MOXF workstations to control Omnisphere, the DAW Remote knobs on the MOXF will be assigned to the following Omnisphere parameters:
Bank 1:
- Knob 1 (cc74) – Global Controls Cutoff
- Knob 2 (cc71) – Global Controls Resonance
- Knob 3 (cc73) – Global Controls Filter Envelope
- Knob 4 (cc72) – Global Controls Vibrato Depth
*Bank 2: *
- Knob 5 (cc16) – Global Controls Ambience Amount
- Knob 6 (cc17) – Global Controls Ambience Length
- Knob 7 (cc18) – Global Controls Unison
- Knob 8 (cc19) – Global Controls Glide
*Bank 3: *
- Knob 09 (cc07) – Part Level
- Knob 10 (cc10) – Global Controls EQ High
- Knob 11 (cc93) – Global Controls EQ Low
- Knob 12 (cc91) – Global Controls Limiter
Setup
To control Omnisphere using the MOXF, you’ll need to do the following:
- Connect the MOXF to your computer via USB.
- Set up the MOXF to control Omnisphere.
- Download and install the Yamaha Steinberg USB Driver for your computer.
- Enable the MOXF as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
- Activate the MOXF Hardware Profile in Omnisphere 3 or later.
MOXF SETUP
Omnisphere relies on the default settings of the Generic Control Template on the MOXF while it is in DAW Remote mode.
- Activate DAW Remote mode by pressing the [DAW Remote] button, then press the Bank Select [Dec] / [Inc] buttons to switch through all the available templates until you see “50: Generic.”
- Press the [STORE] button to activate the Controller Template.
MIDI OUTPUT SETUP
Follow these steps to configure the MOXF to send MIDI through USB:
- Press the [UTILITY] button.
- Press [F6] “MIDI” button and then press [SF4] “OTHER” button.
- Set “MIDI IN/OUT” to “USB.”
- Press the [STORE] to activate these settings.
USB DRIVER
- Check to see if the necessary Yamaha Steinberg USB driver has already been installed by opening up the Omnisphere Standalone (or your preferred DAW) and verifying the MOXF is on your list of MIDI inputs.
- If the MOXF is not listed as a MIDI input, download and install the driver that is compatible with your computer’s operating system from the MOXF Downloads page.
- Restart the host and you should see the MOXF in the list of MIDI Inputs in your Host.
HOST CONNECTION
- Open your host (DAW, Standalone, etc.) and make sure the MOXF Port 2 is enabled as a MIDI input device.
OMNISPHERE SETUP

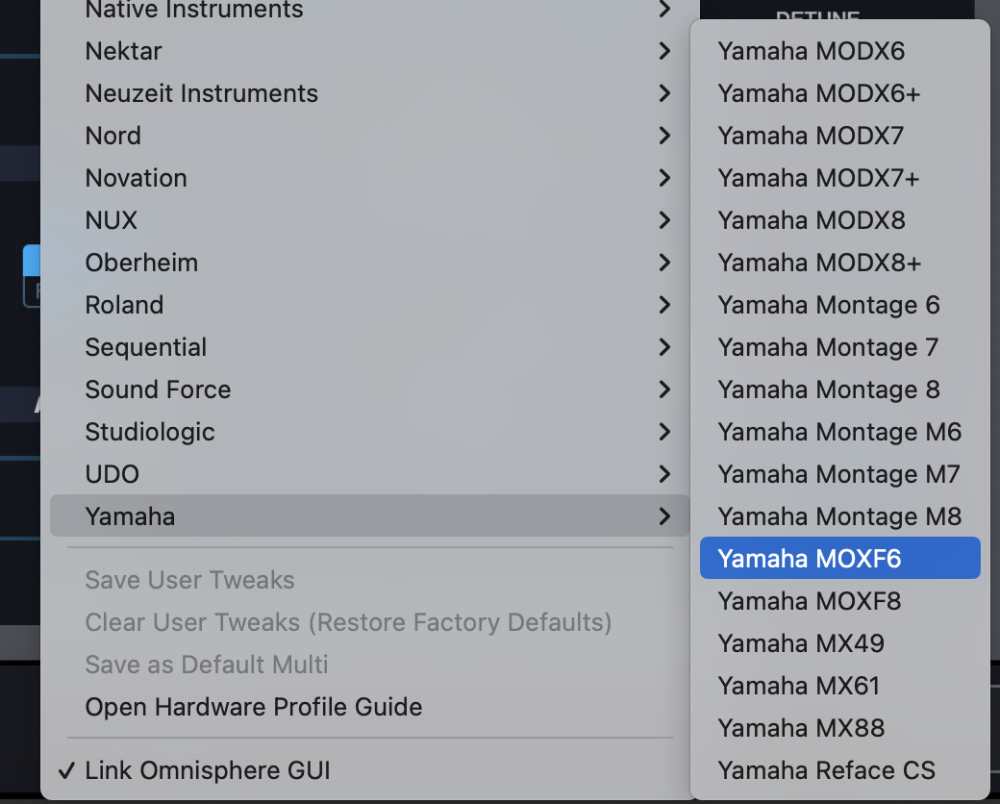

- Open Omnisphere and from the header, select the HW menu button.
- From the drop-down menu, select “Yamaha > Yamaha MOXF”, and activate the MOXF hardware profile that matches your keyboard.
NOTE: Omnisphere will respond to all three banks of knobs on the MOXF. To switch between each bank, press the [KNOB FUNCTION] button.
TROUBLESHOOTING
Not working? Are are some things to try:
- Is your DAW receiving MIDI from the MOXF?
- Make sure your DAW is configured to correctly route the MIDI output of the MOXF to the MIDI channel assigned to the desired part in Omnisphere.
- If you are using the Omnisphere standalone host, make sure the MIDI output channel of the MOXF matches the MIDI channel of the Omnisphere Part you want to control.
- Are the MOXF knobs sending the correct MIDI CC messages to control Omnisphere? A quick way to check is by connecting your MOXF to the MOXF49_MOXF61 Editor application and loading the Control Template “50: Generic” from the MOXF. See the list at the top of the page for the correct MIDI CC#s.
SUPPORT
Still not working? More questions?
Feel free to contact us directly and we can work with you:
Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time
email: info@spectrasonics.net
