Omnisphere 3 Hardware Guide

Setting up the Muse

Setup

To control Omnisphere using the Moog Muse you’ll need to do the following:

  • Using a USB cable, connect the Muse to your computer.
  • Download and install the latest Moog Muse firmware from the Moog website here.
  • Enable the Muse as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
  • Activate the Muse Hardware Profile in Omnisphere 3 or later.

HOST CONNECTION

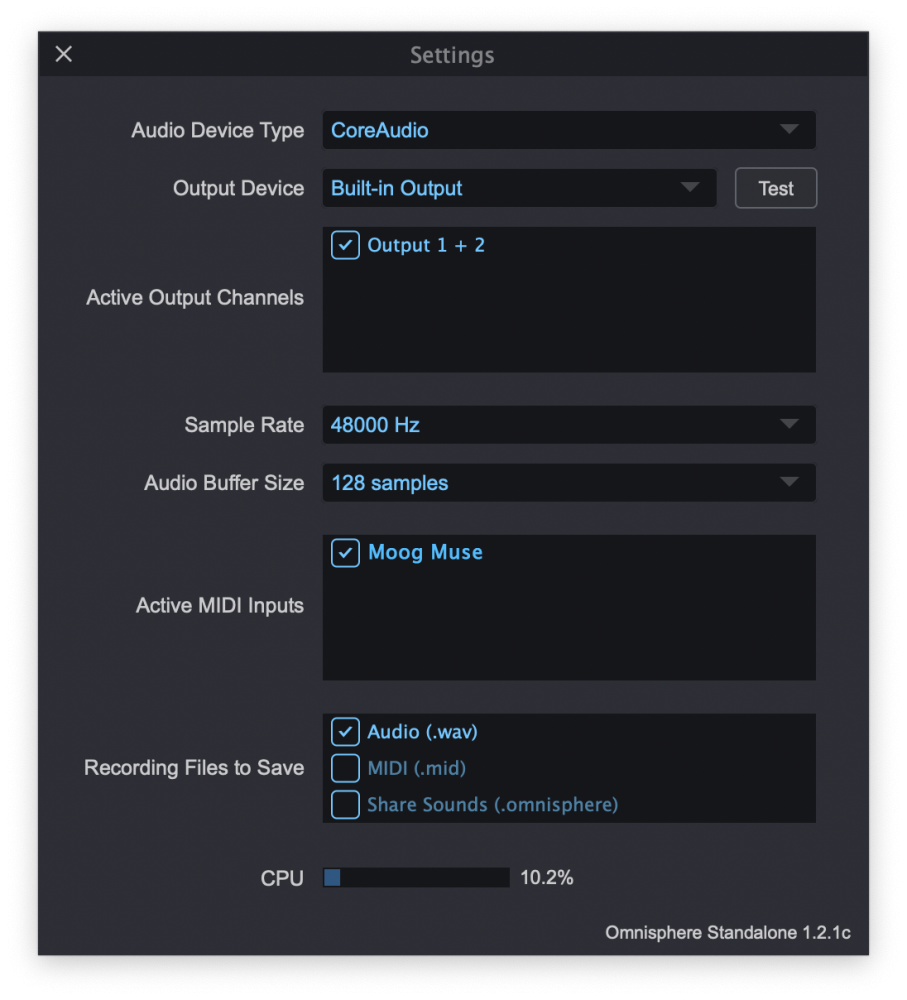

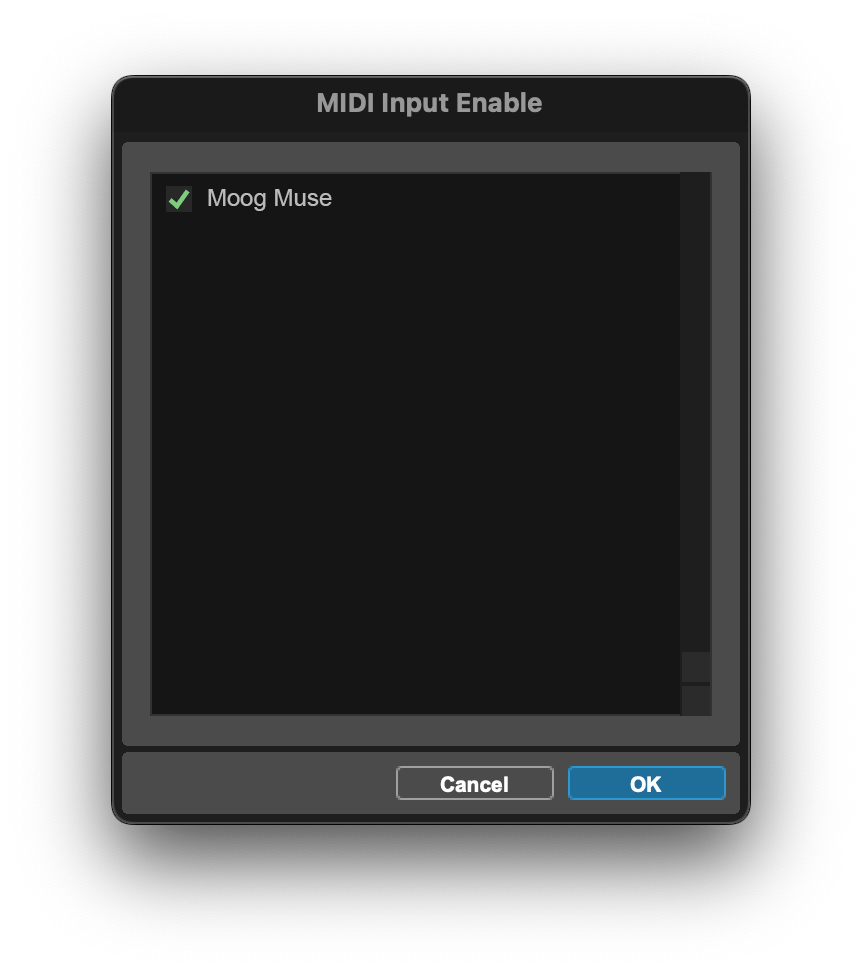

Open your host (DAW, Standalone, etc.) and make sure the Moog Muse is enabled as a MIDI input device.
Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

Open Omnisphere and from the header, select the HW menu button:

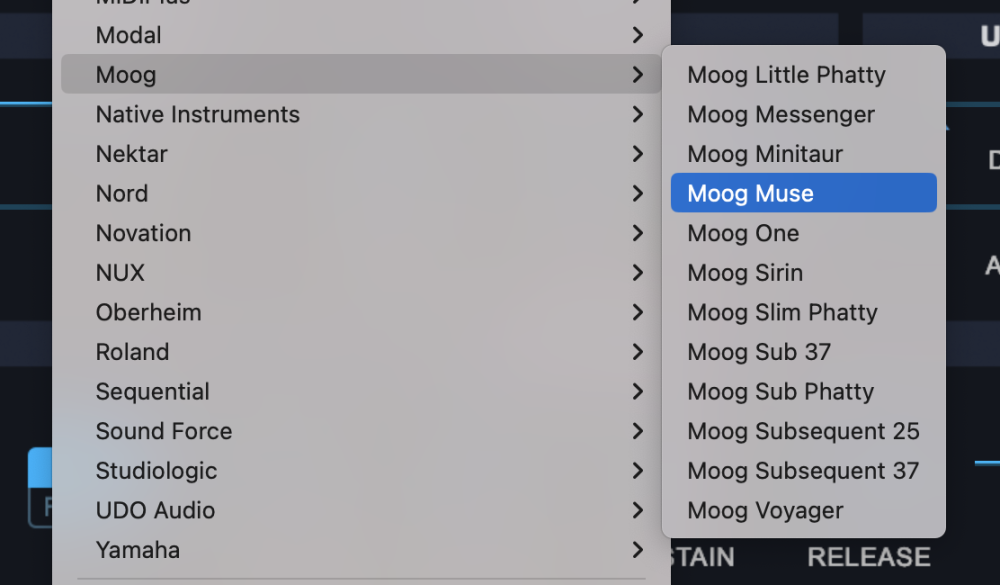

From the drop-down menu, select “Moog>Moog Muse” to activate that hardware profile.


Profile Notes

  • FILTER 1 modulations (KB TRACKING, ENVELOPE AMOUNT, and MODULATION OSCILLATOR) are monophonic.
  • MODULATION OSCILLATOR KB RESET controls Omnisphere’s LFO 6 Polyphony.
  • MODULATION OSCILLATOR AUDIO controls LFO 6 Sync.

Unassigned Controls

The following Moog Muse controls have no effect on Omnisphere:

  • Main Output
  • Mute
  • Headphones
  • Assign buttons
  • Assignable controllers
  • Pitch LFO KB Reset
  • Pitch LFO Envelope
  • Chords
  • Delay Timbre A
  • Delay Timbre B

Troubleshooting

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Muse?
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Muse matches the MIDI channel of the Omnisphere Part you want to control.
  • Make sure your DAW is configured to correctly route the MIDI output of the Muse to the MIDI channel assigned to the desired Part in Omnisphere.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
