Omnisphere 3 Hardware Guide

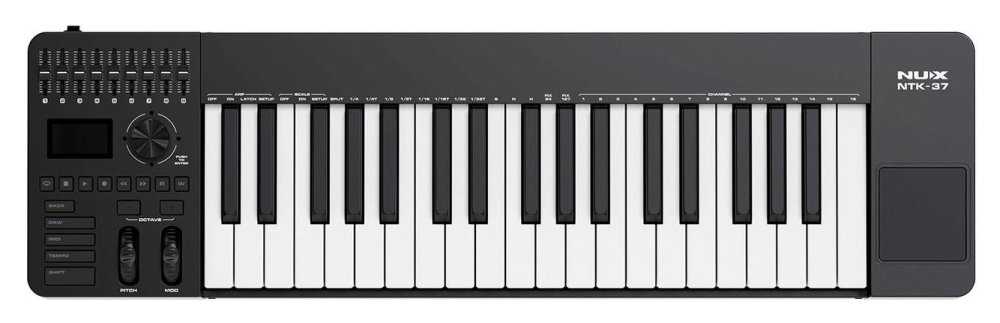

Setting Up the NTK-37

When using the NUX NTK-37 to control Omnisphere, the knobs on the NTK-37 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#00) – Global Controls Cutoff
  • Knob 2 (CC#01) – Mod Wheel
  • Knob 3 (CC#02) – Global Controls Resonance
  • Knob 4 (CC#03) – Global Controls Filter Envelope Amount
  • Knob 5 (CC#04) – Global Controls Vibrato Depth
  • Knob 6 (CC#05) – Global Controls Ambience Amount
  • Knob 7 (CC#06) – Global Controls Ambience Length
  • Knob 8 (CC#07) – Global Controls Unison Amount and Detune
  • Knob 9 (CC#08) – Global Controls Glide

Setup

To control Omnisphere using the NTK-37, you’ll need to do the following:

  1. Connect the NTK-37 to your computer via USB.
  2. Set up the NTK-37 to control Omnisphere.
  3. Enable the NTK-37 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the NTK-37 Hardware Profile in Omnisphere 3 or later.

NTK-37 SETUP
Omnisphere relies on the factory default settings of a Scene on the NTK-37 while in MIDI Mode for external control.

Here’s how to set this up:

  • First, enable MIDI Mode by pressing the [MIDI] button on the NTK-37.

Next, you’ll need to load a Scene:

  • If you haven’t customized any Scene on the NTK-37, then you can move on to next steps under “HOST CONNECTION.”
  • If you have customized one of the 16 Scenes on the NTK-37, you can simply load an unused Scene that has not been customized by long-pressing the [MIDI] button to enter the “Scene” settings, then use the 5-way master encoder to select the unused Scene.
  • If you have customized all 16 Scenes then you’ll need to use NUX’s NTKEditor to reset a Scene back the factory default settings and then send that Scene to the NTK-37. See the list at the top of the page for the correct MIDI CC#s.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the NTK-37 is enabled as a MIDI input device.

OMNISPHERE SETUP

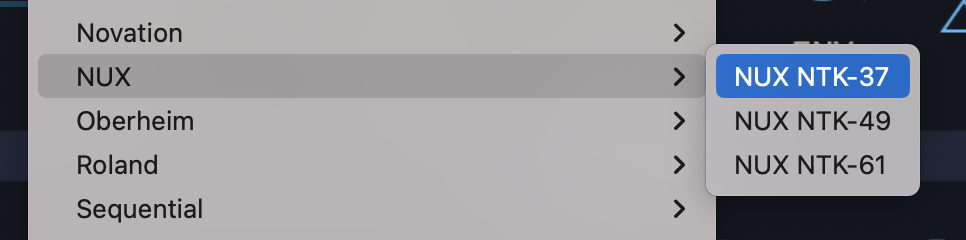

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “NUX > NUX NTK-37” to activate the NTK-37 hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the NTK-37?
  • Make sure your DAW is configured to correctly route the MIDI output of the NTK-37 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the NTK-37 matches the MIDI channel of the Omnisphere Part you want to control.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
