Setup
To control Omnisphere using the Moog One you’ll need to do the following:
- Connect the Moog One to your computer via USB.
- Download and install the Moog One firmware from the Moog website here.
- Set the front panel to send NRPNs.
- Activate the Moog One Hardware Profile in Omnisphere 3 or later.
FRONT PANEL SETUP

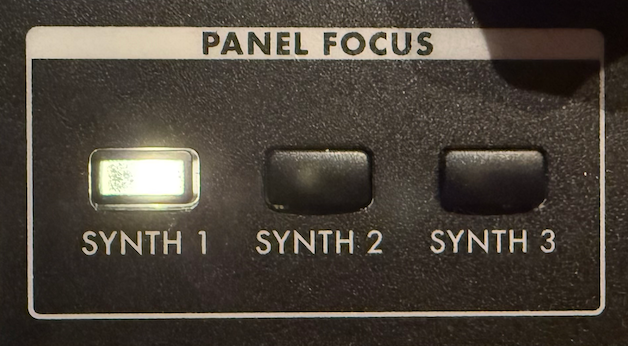

- On the Moog One, set the PANEL FOCUS to SYNTH 1.
- From the Moog One’s Global menu, select “MIDI CONTROL” and “MIDI CONTROL OUTPUT”
- Select “NRPN” as the setting.
HOST CONNECTION

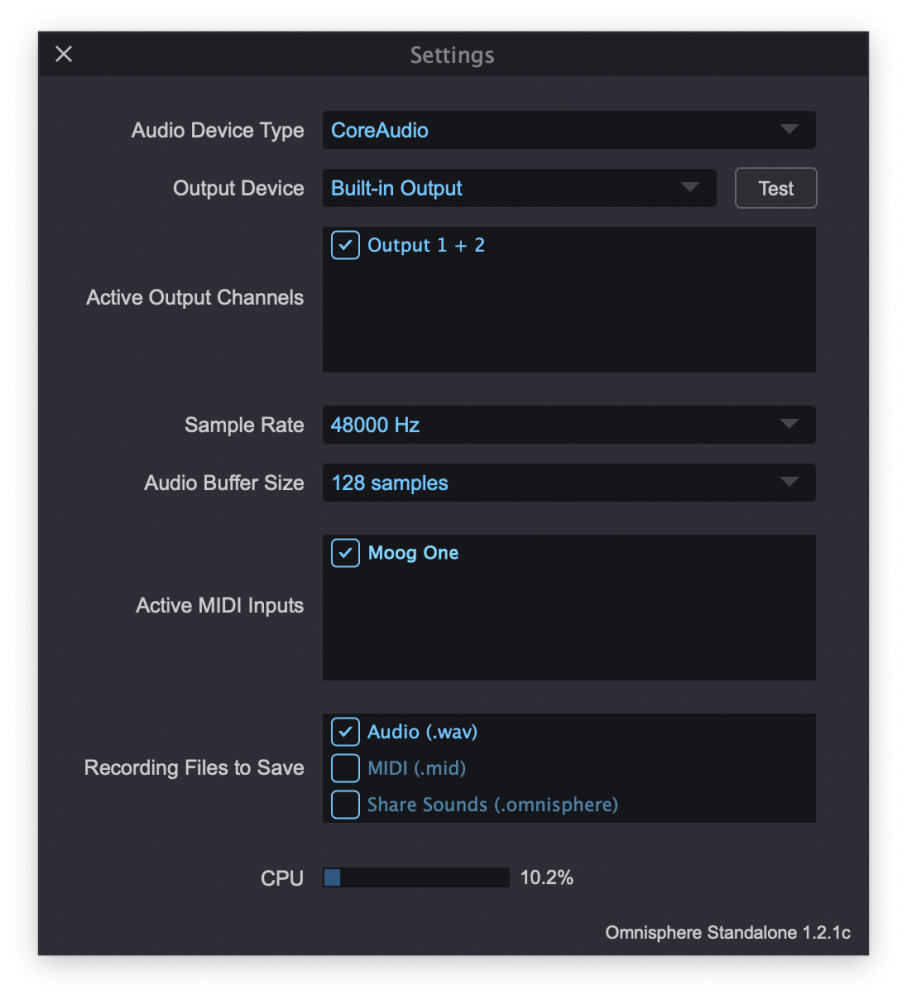

Open your host (DAW, Standalone, etc.) and make sure the Moog Minitaur is enabled as a MIDI input device.
 |
 |
| Omnisphere Standalone | Pro Tools |
OMNISPHERE SETUP
Open Omnisphere and from the header, select the HW menu button:
From the drop-down menu, select “Moog>Moog One” to activate that hardware profile.
Profile Notes

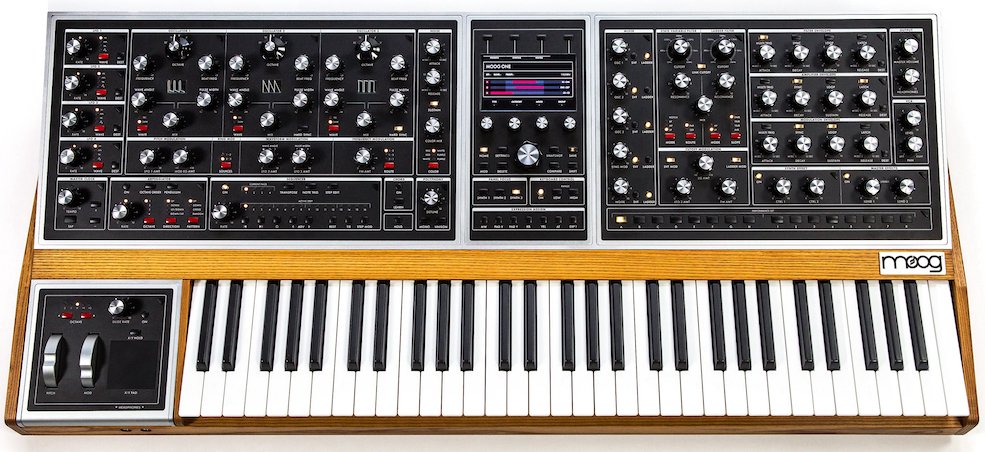

In addition to being a great synth, the Moog One is a good controller for Omnisphere. In designing this hardware profile, we aimed to strike a balance between staying faithful to the original design of the Moog One and using its panel creatively to maximize control over Omnisphere—especially as a workaround for the many controls that do not transmit MIDI data. Below are a few assignments worth noting:
- CUTOFF MODULATION FM AMOUNT controls Filter Saturation.
- VCA LEVEL controls Tube Overdrive.
- HEADPHONE controls Global Ambience Amount.
- FILTER 1 modulations (EG AMT and LFO2 AMT) are monophonic.
- RM MOD LADDER ON/OFF is assigned to switch between “Normal” and “Boost” in Omnisphere’s Ring Modulation page.
- RM MOD SVF ON/OFF is assigned to switch between “Pre Filter” and “Post Filter” in Omnisphere’s Ring Modulation page.
Unassigned Controls
The following Moog One controls have no effect on Omnisphere:
- Modulation Matrix
- Modulation Destination Buttons
- FX Section
- Glide On
- X/Y Hold
- Chord On
- Chord Learn
- Hold
- Filter Envelope Multi Trig
- Filter Envelope Latch
- Amp Envelope Multi Trig
- Amp Envelope Latch
- Modulation Envelope Multi Trig
- Modulation Envelope Latch
Troubleshooting
Not working? Here are some things to try:
- Is your DAW receiving MIDI from the Moog One?
- If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Moog One matches the MIDI channel of the Omnisphere Part you want to control.
- Make sure your DAW is configured to correctly route the MIDI output of the Moog One to the MIDI channel assigned to the desired Part in Omnisphere.
SUPPORT
Still not working? More questions?
Feel free to contact us directly and we can work with you:
Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time
email: info@spectrasonics.net
