Omnisphere 3 Hardware Guide

Setting Up the Oxygen 8

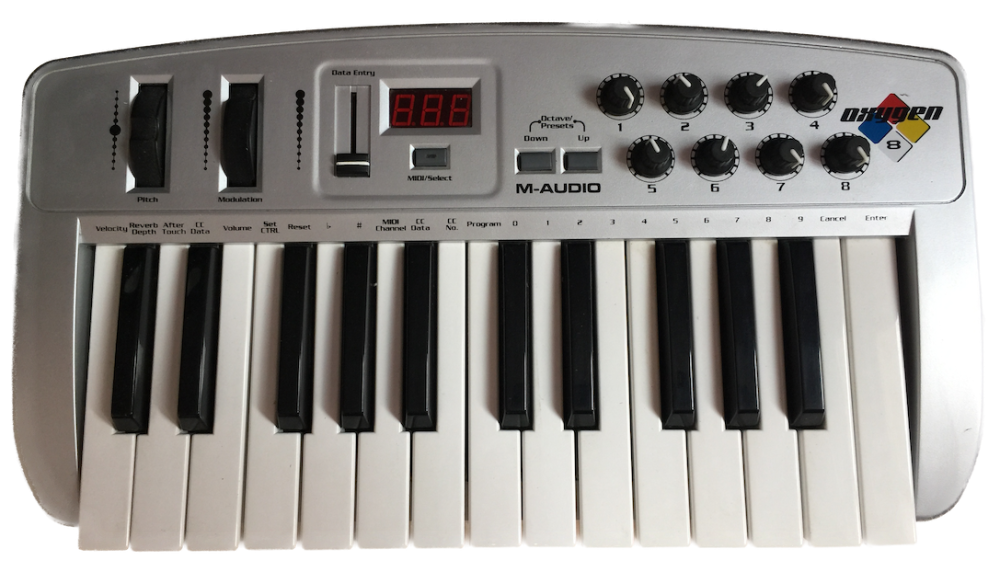

When using the M-Audio Oxygen 8 to control Omnisphere, the knobs on the Oxygen 8 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#10) – Global Controls Cutoff
  • Knob 2 (CC#11) – Global Controls Resonance
  • Knob 3 (CC#12) – Global Controls Filter Envelope Amount
  • Knob 4 (CC#13) – Global Controls Vibrato Depth
  • Knob 5 (CC#14) – Global Controls Ambience Amount
  • Knob 6 (CC#15) – Global Controls Ambience Length
  • Knob 7 (CC#16) – Global Controls Unison
  • Knob 8 (CC#17) – Global Controls Glide

Setup

To control Omnisphere using the Oxygen 8, you’ll need to do the following:

  1. Connect the Oxygen 8 to your computer’s MIDI interface.
  2. Enable the Oxygen 8 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  3. Activate the Oxygen 8 Hardware Profile in Omnisphere 3 or later.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the Oxygen 8 is enabled as a MIDI input device.

OMNISPHERE SETUP

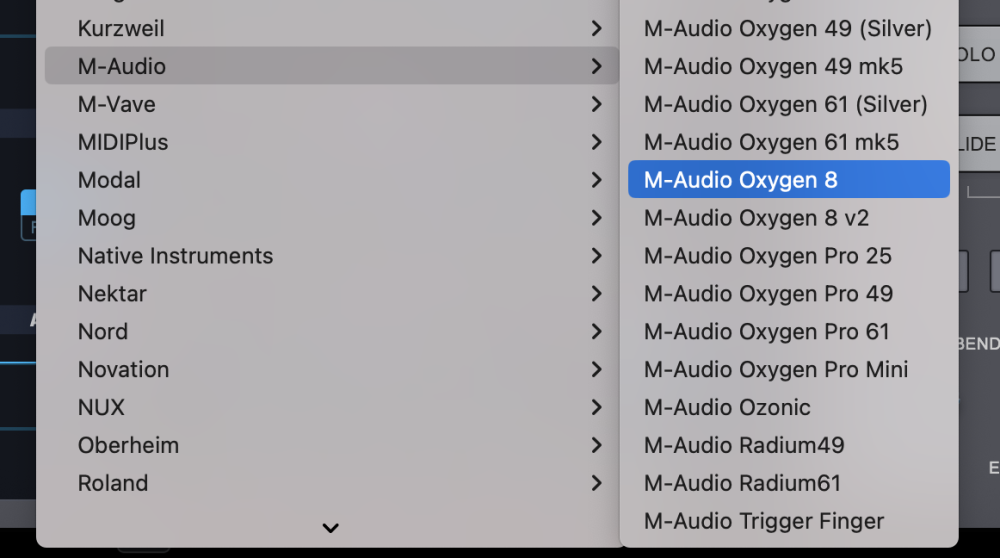

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “M-Audio > M-Audio Oxygen 8” to activate the Oxygen 8 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Oxygen 8?
  • Make sure your DAW is configured to correctly route the MIDI output of the Oxygen 8 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Oxygen 8 matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs on the Oxygen 8 sending the correct MIDI CC messages to control Omnisphere? A simple way to check this is by using MIDI Monitor by Snoize or recording knob movement in your DAW and check to see if the MIDI CC number for each knob matches the MIDI CC#s at the top of the page.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
