Omnisphere 3 Hardware Guide

Setting Up the Oxygen Pro 25

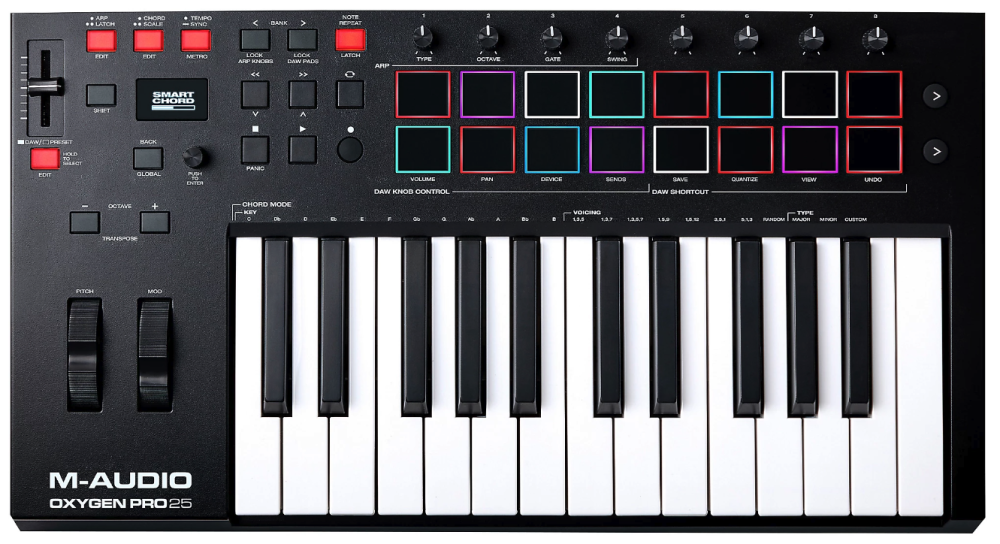

When using the M-Audio Oxygen Pro 25 to control Omnisphere, the knobs and buttons on the Oxygen Pro 25 are assigned to the following Omnisphere parameters:

  • Knob 1 (cc44) – Global Controls Cutoff
  • Knob 2 (cc45) – Global Controls Resonance
  • Knob 3 (cc46) – Global Controls Filter Envelope Amount
  • Knob 4 (cc47) – Global Controls Vibrato Depth
  • Knob 5 (cc62) – Global Controls Ambience Amount
  • Knob 6 (cc63) – Global Controls Ambience Length
  • Knob 7 (cc75) – Global Controls Unison
  • Knob 8 (cc76) – Global Controls Glide
  • Bottom [ > ] Button (cc108) – Browser Down / Next Patch
  • Top [ > ] Button (cc107) – Browser Up / Previous Patch

Setup

To control Omnisphere using the Oxygen Pro 25, you’ll need to do the following:

  1. Connect the Oxygen Pro 25 to your computer via USB.
  2. Set up the Oxygen Pro 25 to control Omnisphere.
  3. Enable the Oxygen Pro 25 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the Oxygen Pro 25 Hardware Profile in Omnisphere 3 or later.

OXYGEN PRO 25 SETUP

Omnisphere relies on the factory default settings of Preset 16 while in Preset Mode on the Oxygen Pro 25 for external control.

  • Activate Preset mode by pressing the [DAW/ PRESET] button until the [DAW/ PRESET] button is dark / dimmed – this indicates that the Oxygen 25 is in Preset mode.
  • Lastly, activate Preset 16 by using the scroll encoder to scroll through the various presets until you see Preset 16 displayed.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the Oxygen Pro 25 is enabled as a MIDI input device.

OMNISPHERE SETUP

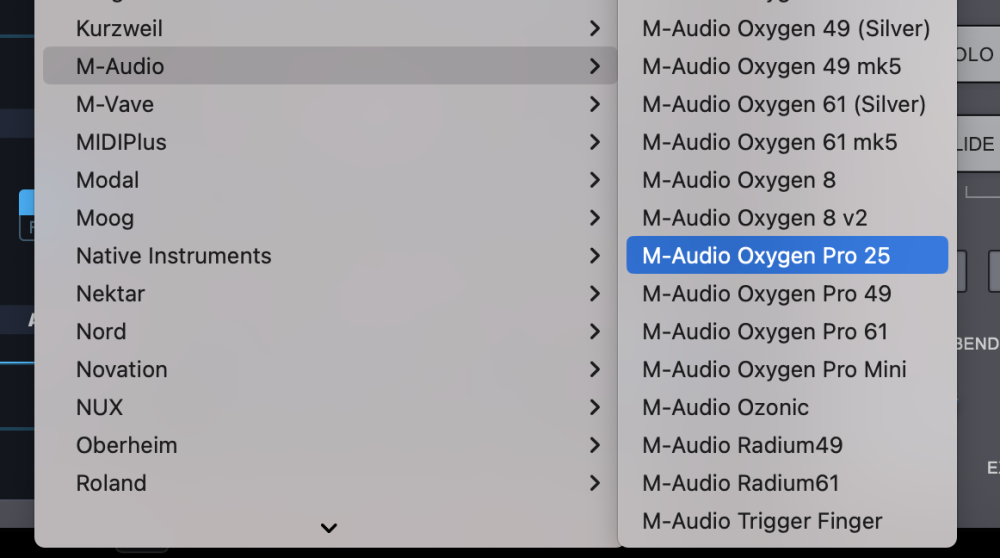

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “M-Audio > M-Audio Oxygen Pro 25” to activate the Oxygen Pro 25 hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Oxygen Pro 25?
  • Make sure your DAW is configured to correctly route the MIDI output of the Oxygen Pro 25 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Oxygen Pro 25 matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs on the Oxygen Pro 25 sending the correct MIDI CC messages? A simple way to check this is by using MIDI Monitor by Snoize or go into Edit mode on the Oxygen Pro 25 by holding [SHIFT] and press the [DAW/ PRESET] button and then checking the MIDI CC assignments for each knob. See the list above for the correct MIDI CC#s.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
