Omnisphere 3 Hardware Guide

Setting Up the PC3A

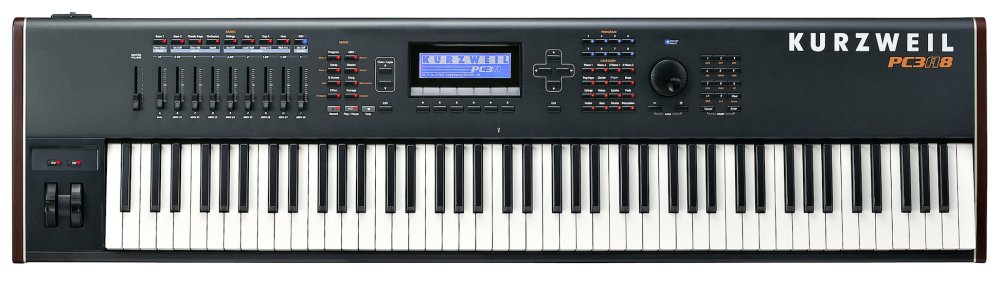

When using the Kurzweil PC3A to control Omnisphere, the sliders on the PC3A will be assigned to the following Omnisphere parameters:

  • Slider 1 (CC#13) – Global Controls Cutoff
  • Slider 2 (CC#22) – Global Controls Resonance
  • Slider 3 (CC#23) – Global Controls Filter Envelope Amount
  • Slider 4 (CC#24) – Global Controls Vibrato Depth
  • Slider 5 (CC#25) – Global Controls Ambience Amount
  • Slider 6 (CC#26) – Global Controls Ambience Length
  • Slider 7 (CC#27) – Global Controls Unison
  • Slider 8 (CC#28) – Global Controls Glide

Setup

To control Omnisphere using the PC3A, you’ll need to do the following:

  1. Connect the PC3A to your computer via USB.
  2. Set up the PC3A to control Omnisphere.
  3. Enable the PC3A as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the PC3A Hardware Profile in Omnisphere 3 or later.

PC3A SETUP

Omnisphere relies on the default settings of Control Setup #126 named “Internal Voices” for external control.

  • To load “Setup 126,” press the [Setup] button, then use the scroll wheel to step through the list of setups until you get to Setup 126 and press the [Enter] button on the numeric pad.
  • Next, configure the PC3A to send MIDI via USB by pressing the [MIDI] button and then change the “Destination:” parameter to “USB_MIDI.”

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the PC3A is enabled as a MIDI input device.

OMNISPHERE SETUP

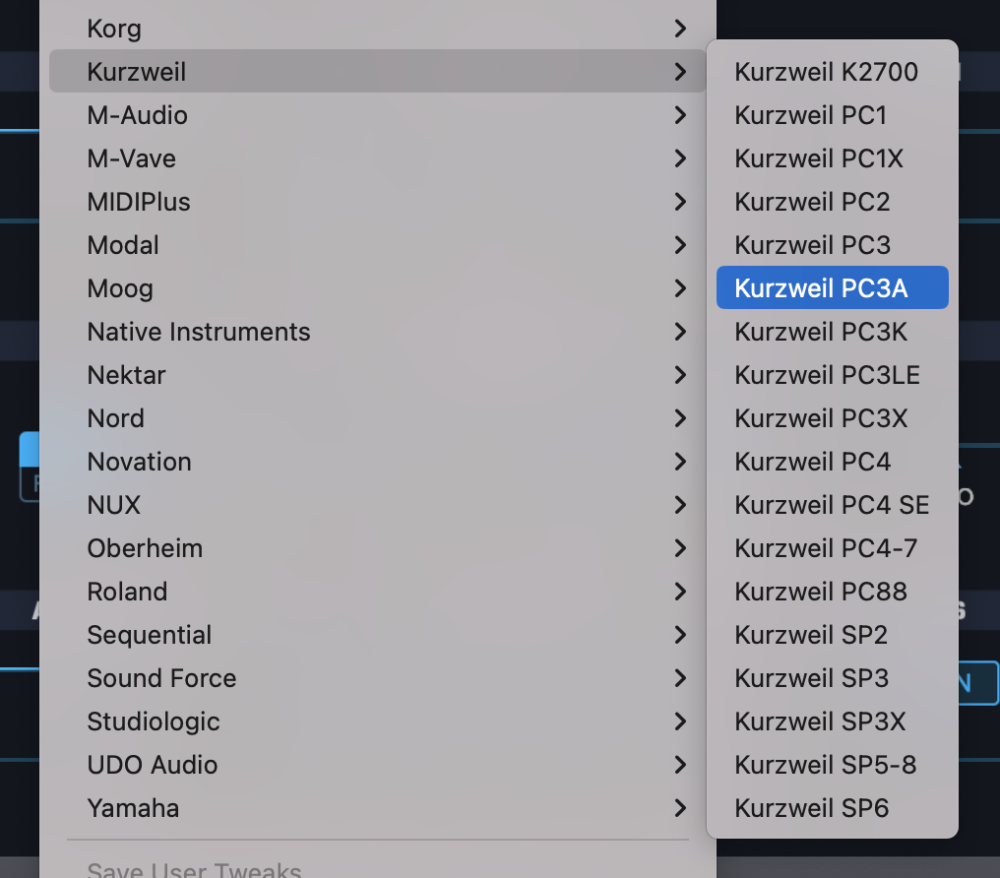

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Kurzweil > Kurzweil PC3A” to activate the PC3A hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the PC3A?
  • Make sure your DAW is configured to correctly route the MIDI output of the PC3A to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of Zone 1 on the PC3A matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the sliders on the PC3A sending the correct MIDI CC messages used to control Omnisphere?

Here’s how to check:

  1. Go to the “MIDI XMIT” page by pressing the [MIDI] button and pressing the “XMIT” soft button.
  2. Highlight Control Setup”: “126 Internal Voices.”
  3. Press “EDIT” then select the “more” soft button.
  4. Select each slider one at a time and make sure they are assigned to the default MIDI CC#s listed at the top of the page.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time
