Omnisphere 3 Hardware Guide

Setting Up the QueNeo

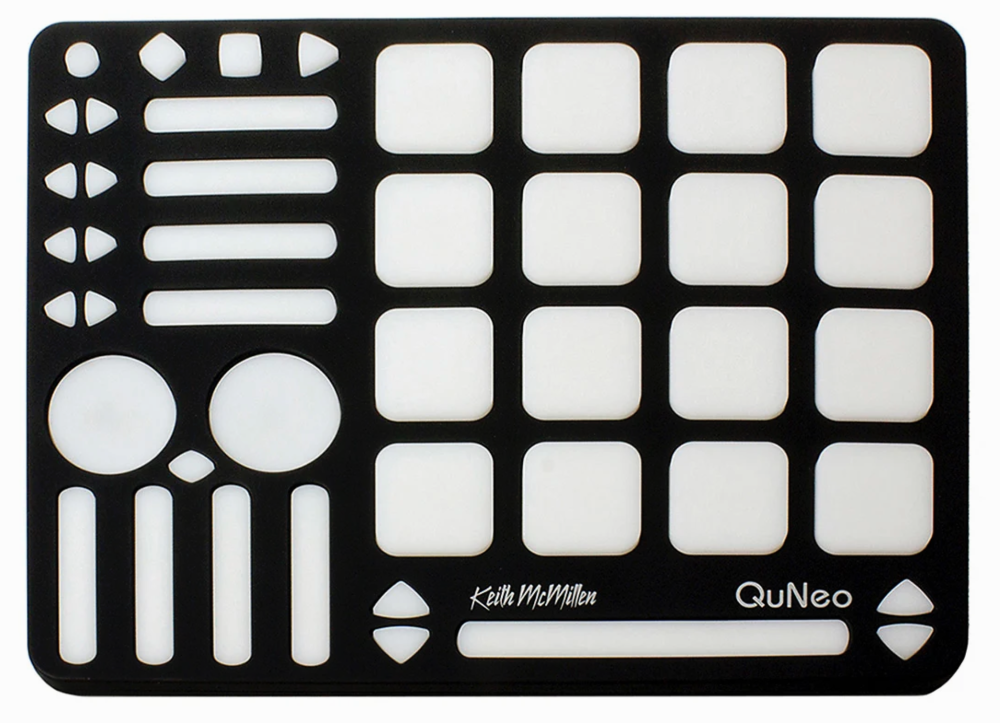

When using the Keith McMillen QueNeo to control Omnisphere, the sliders and drum pads on the QueNeo are assigned to the following Omnisphere parameters:

Top 4 Sliders:

  • Slider 1 (CC#00) – Global Controls Cutoff
  • Slider 2 (CC#01) – Mod Wheel
  • Slider 3 (CC#02) – Global Controls Unison
  • Slider 4 (CC#03) – Global Controls Glide

Bottom 4 Sliders:

  • Slider 5 (CC#04) – Global Controls Vibrato Depth
  • Slider 6 (CC#05) – Global Controls Vibrato Rate
  • Slider 7 (CC#06) – Global Controls Ambience Amount
  • Slider 8 (CC#07) – Global Controls Ambience Length

Setup

To control Omnisphere using the QueNeo, you’ll need to do the following:

  1. Connect the QueNeo to your computer via USB.
  2. Set up the QueNeo to control Omnisphere.
  3. Enable the QueNeo as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the QueNeo Hardware Profile in Omnisphere 3 or later.

QUENEO SETUP

Omnisphere relies on the factory default settings of Preset 1 on the QueNeo for external control. Typically, Preset 1 is active by default when the QueNeo is turned on.

  • If needed, you can quickly activate Preset 1 by pressing the [Mode] button on the QueNeo and then press Pad 1.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the QueNeo is enabled as a MIDI input device.

OMNISPHERE SETUP

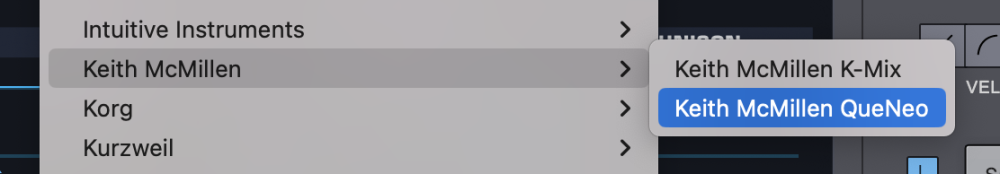

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Keith McMillen > Keith McMillen QueNeo” to activate the QueNeo hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the QueNeo?
  • Make sure your DAW is configured to correctly route the MIDI output of the QueNeo to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the QueNeo matches the MIDI channel of the Omnisphere Part you want to control.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
