Omnisphere 3 Hardware Guide

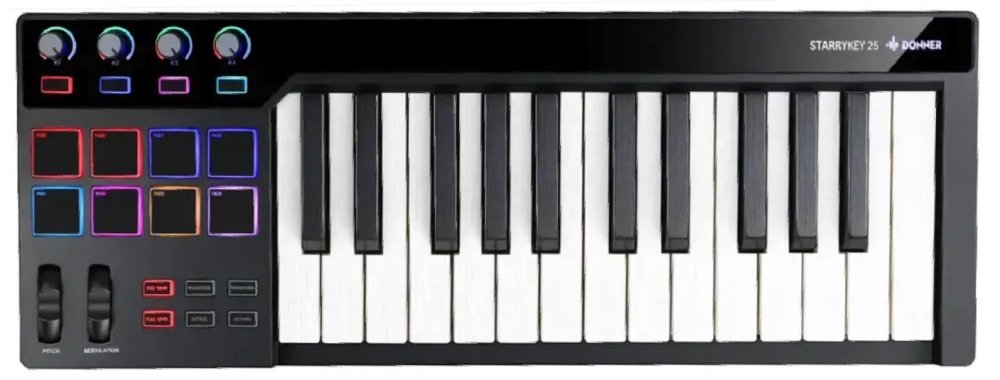

Setting Up the STARRYKEY 25


When using the Donner STARRYKEY 25 to control Omnisphere, the knobs on the STARRYKEY 25 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#20) – Global Controls Cutoff
  • Knob 2 (CC#21) – Global Controls Ambience Amount
  • Knob 3 (CC#22) – Global Controls Vibrato Depth
  • Knob 4 (CC#23) – Global Controls Glide
  • Button 1 (CC#59) – Browser Down / Next Patch
  • Button 2 (CC#60) – Browser Up / Previous Patch

Setup

To control Omnisphere using the STARRYKEY 25, you’ll need to do the following:

  1. Connect the STARRYKEY 25 to your computer via USB.
  2. Set up the STARRYKEY 25 to control Omnisphere.
  3. Enable the STARRYKEY 25 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the STARRYKEY 25 Hardware Profile in Omnisphere 3 or later.

STARRYKEY 25 SETUP

Omnisphere relies on factory default settings of the STARRYKEY 25 for external control.

  • If you have not customized the MIDI CC#s of the knobs on the STARRYKEY 25 then you can move on to the next steps under “HOST CONNECTION.”
  • If you have customized the knobs of your STARRYKEY 25, please connect your STARRYKEY 25 to the Donner STARRYKEY 25 application and reset the knobs to match the list at the top of the page.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the STARRYKEY 25 is enabled as a MIDI input device.

OMNISPHERE SETUP

  • Open Omnisphere and from the header, select the HW menu button.

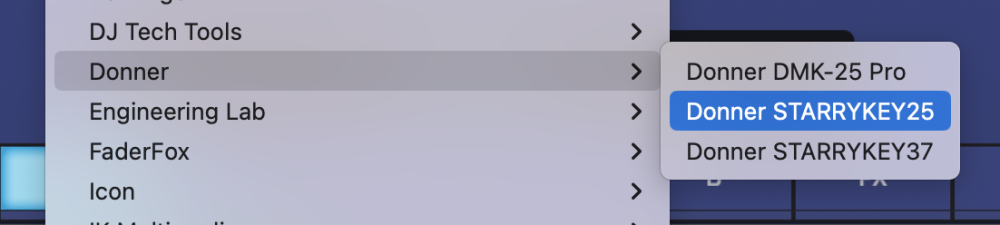

  • From the drop-down menu, select “Donner > Donner STARRYKEY 25” to activate the STARRYKEY 25 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the STARRYKEY 25?
  • Make sure your DAW is configured to correctly route the MIDI output of the STARRYKEY 25 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the STARRYKEY 25 matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs on the STARRYKEY 25 sending the correct MIDI CC#s used to control Omnisphere? A simple way to check this is by using MIDI Monitor by Snoize or recording knob movement in your DAW. See the list at the top of the page for the correct MIDI CC#s.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
