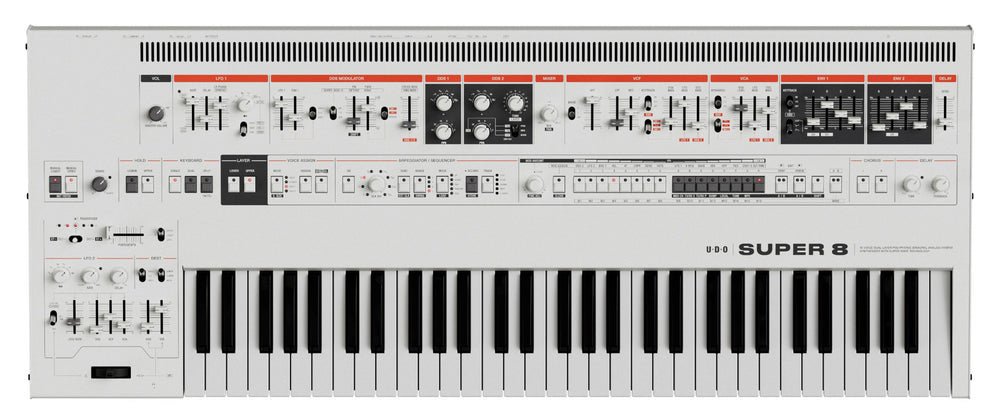

Setting Up the Super 8

Setup

To control Omnisphere using the UDO Super 8, you’ll need to do the following:

• Connect the Super 8 to your computer via USB.
• Set up the Super 8’s front panel controls to send MIDI CCs.
• Activate the Super 8 Hardware Profile in Omnisphere 3 or later.

MIDI OUTPUT SETUP

• Press the SHIFT button.
• Press the TX/RX E button, which is found on the left side of the control panel, near the SHIFT button.
• With the TX/RX E button lit, press patch button 1. The LED for patch button 1 should light up solidly, indicating that the Super 6 is set to transmit standard MIDI CC messages.
• Press SHIFT again to exit the Global Settings menu.

HOST CONNECTION

Open your host (DAW, Standalone, etc.) and make sure the Soundforce UDO Super 8 is enabled as a MIDI input device.

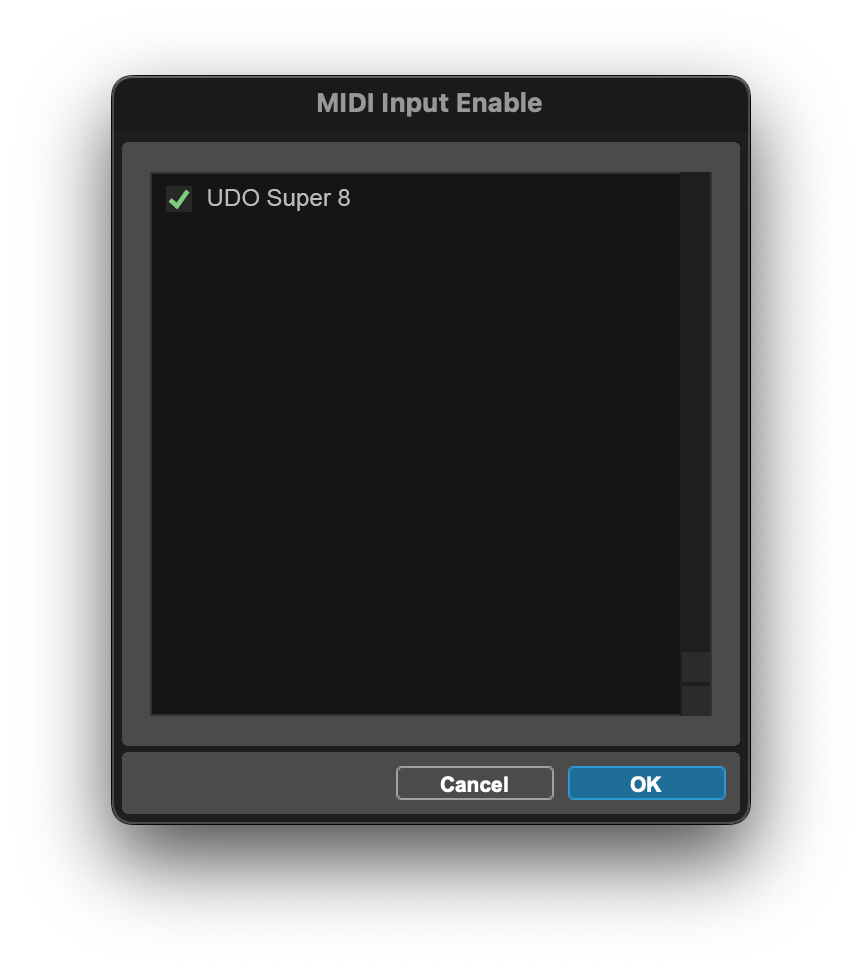

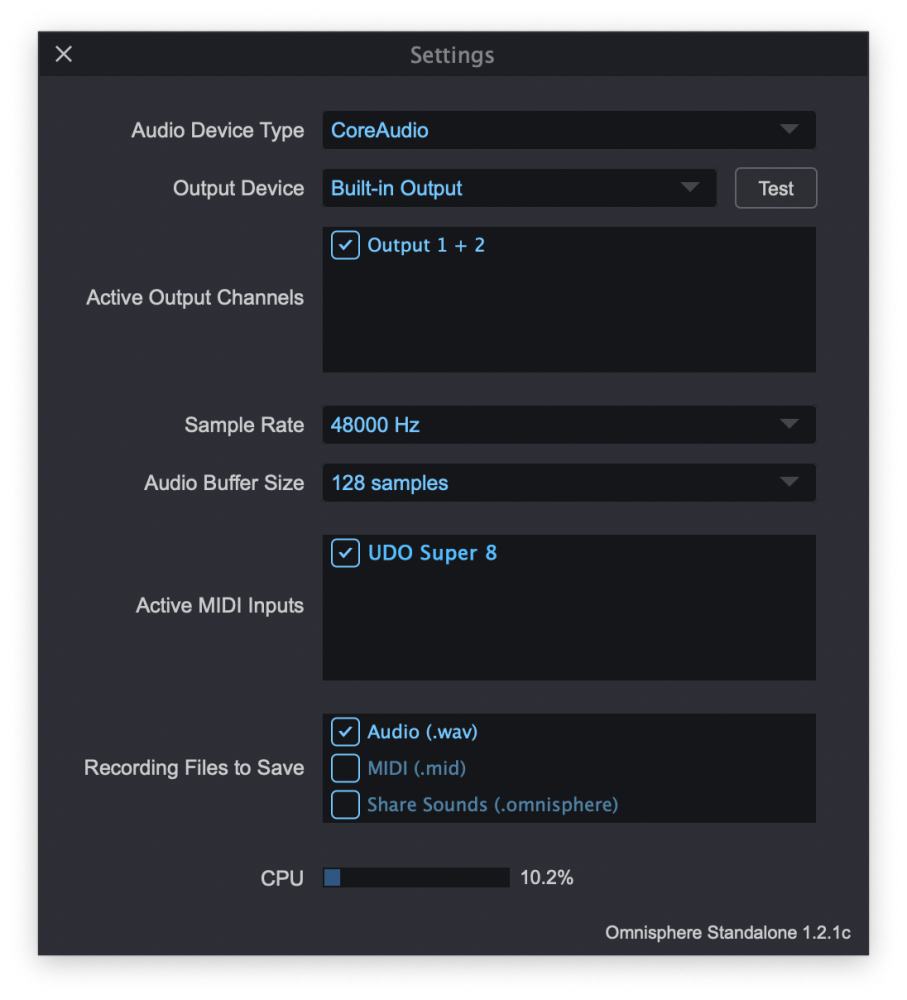

Omnisphere Standalone	Pro Tools

OMNISPHERE SETUP

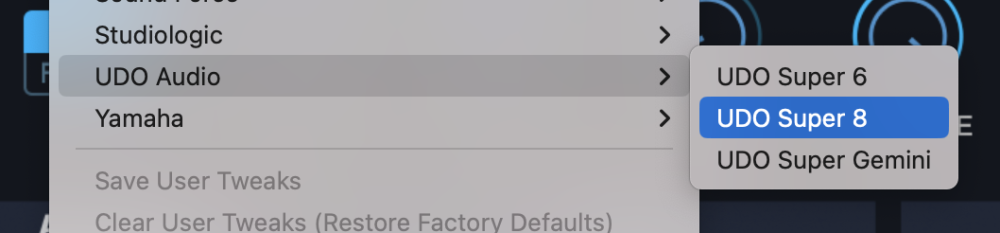

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “UDO > UDO Super 8” to activate that hardware profile.

Profile Notes

• DELAY SEND is assigned to Global Ambience Amount.
• DELAY FEEDBACK is assigned to Global Ambience Length.
• DELAY TIME is assigned to Global Limiter.
• LFO1 LR PHASE assigned to the phase start of LFO1 in Omnisphere.

Unassigned Controls

The following UDO Super 8 controls have no effect on Omnisphere:

• Master Volume
• Tempo
• Lower Detune
• Init Patch Manual Lower
• Init Patch Manual Upper
• Single
• Dual Split
• Sequencer
• Mod Matrix
• Perf
• Wave AB

Troubleshooting

Not working? Here are some things to try:

• Is your host receiving MIDI from the UDO Super 8?
• Make sure your DAW is configured to correctly route the MIDI output of the UDO Super 8 to the MIDI channel assigned to the desired Part in Omnisphere.
