Omnisphere 3 Hardware Guide

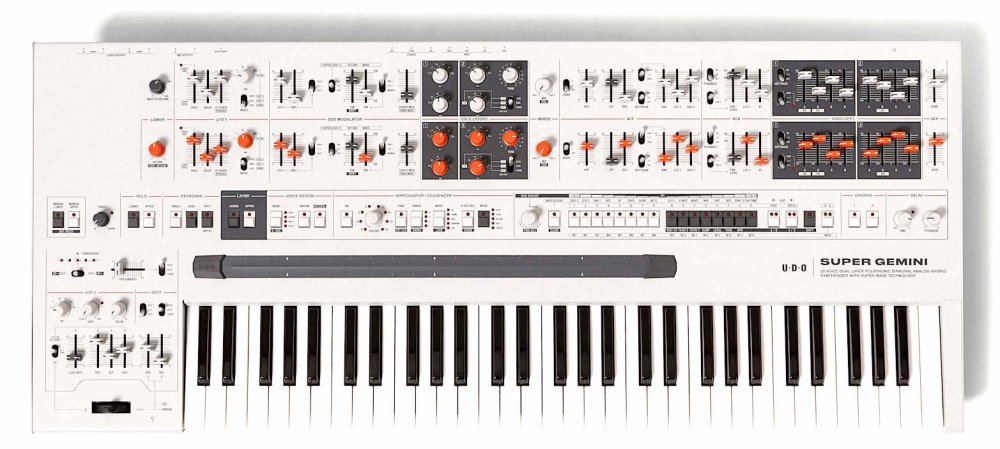

Setting up the Super Gemini

Setup

To control Omnisphere using the UDO Super Gemini, you’ll need to do the following:

  • Connect the Super Gemini to your computer via USB.
  • Set up the Super Gemini’s front panel controls to send MIDI CC messages.
  • Activate the Super Gemini Hardware Profile in Omnisphere 3 or later.

MIDI OUTPUT SETUP

  • Press the SHIFT button.
  • Press the TX/RX E button, which is found on the left side of the control panel, near the SHIFT button.
  • With the TX/RX E button lit, press patch button 1. The LED for patch button 1 should light up solidly, indicating that the Super 6 is set to transmit standard MIDI CC messages.
  • Press SHIFT again to exit the Global Settings menu.

HOST CONNECTION

Open your host (DAW, Standalone, etc.) and make sure the Soundforce UDO Super Gemini is enabled as a MIDI input device.

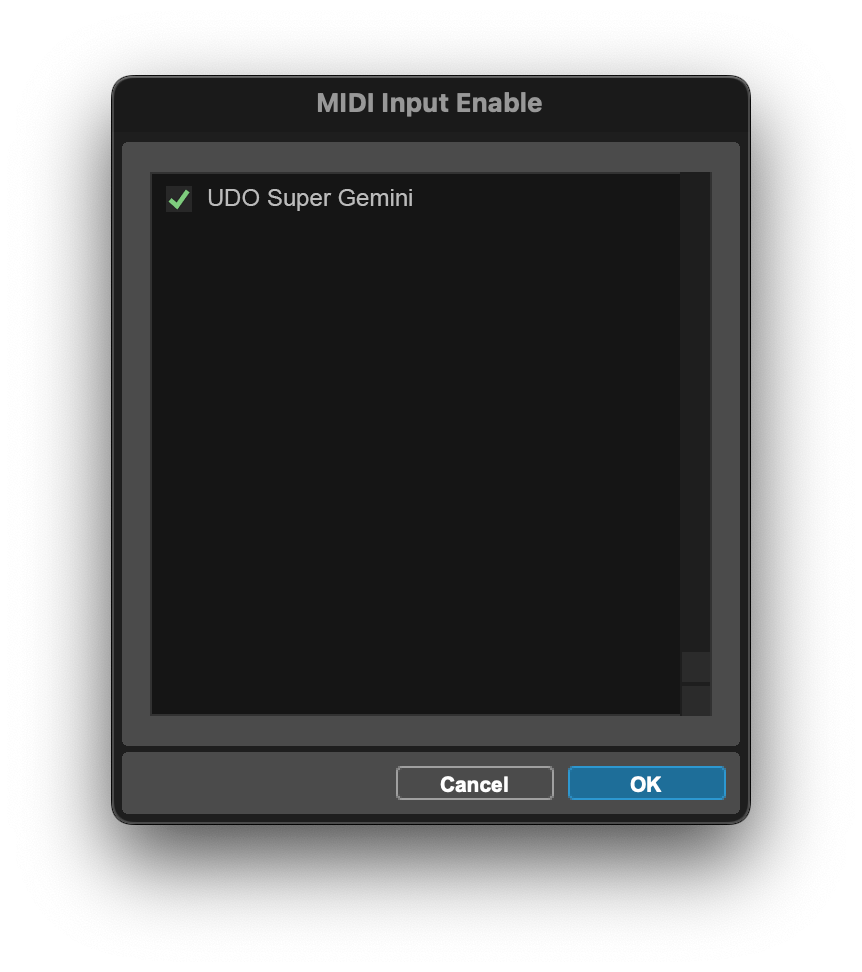

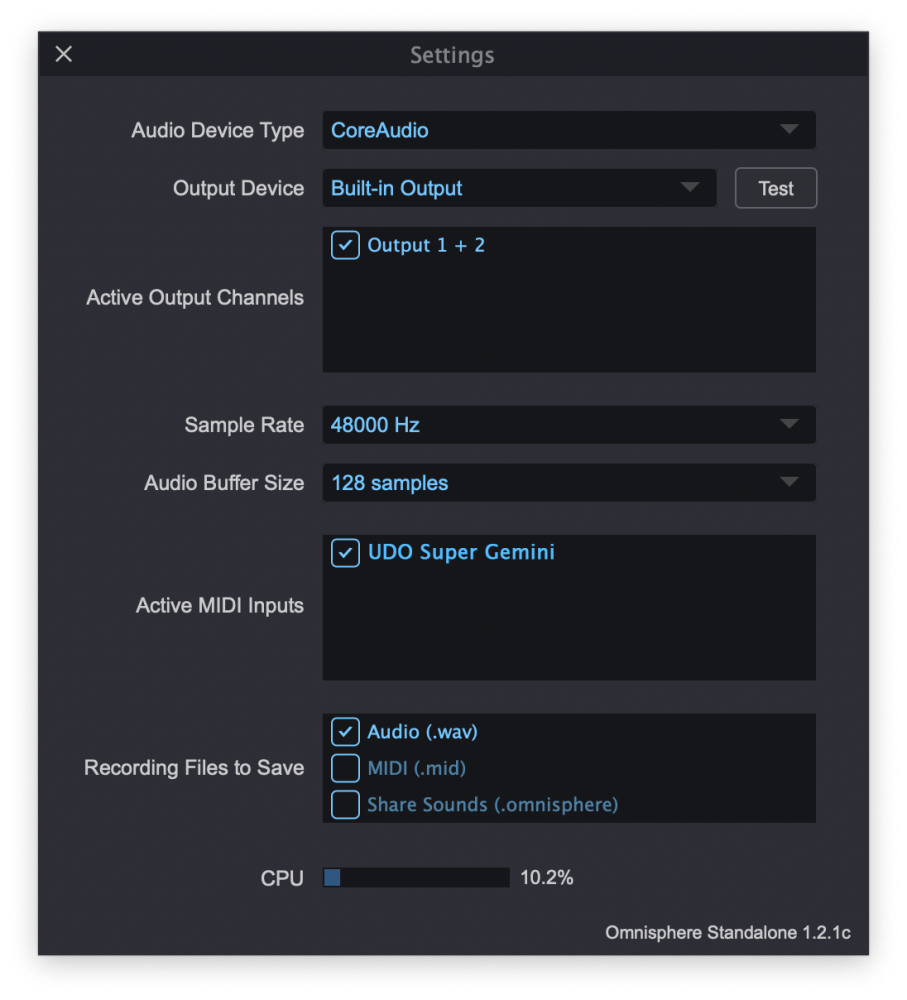

Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

Open Omnisphere and from the header, select the HW menu button:

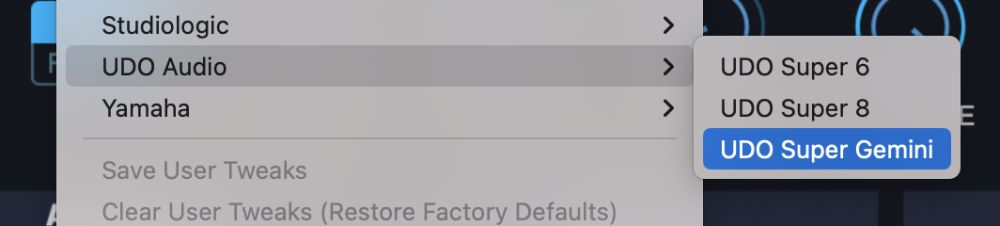

From the drop-down menu, select “UDO>UDO Super Gemini” to activate that hardware profile.


Profile Notes

  • DELAY SEND is assigned to Global Ambience Amount.
  • DELAY FEEDBACK is assigned to Global Ambience Length.
  • DELAY TIME is assigned to Global Limiter.
  • LFO1 LR PHASE assigned to the phase start of LFO1 in Omnisphere.
  • Omnisphere’s “Adaptive MIDI Scaling” should be disabled for the Super Gemini ribbon to work

Unassigned Controls

The following UDO Super Gemini controls have no effect on Omnisphere:

  • Master Volume
  • Tempo
  • Lower Detune
  • Init Patch Manual Lower
  • Init Patch Manual Upper
  • Single
  • Dual Split
  • Sequencer
  • Mod Matrix
  • Perf
  • Wave AB

Troubleshooting

Not working? Here are some things to try:

  • Is your host receiving MIDI from the UDO Super Gemini?
  • Make sure your DAW is configured to correctly route the MIDI output of the UDO Super Gemini to the MIDI channel assigned to the desired Part in Omnisphere.
