Omnisphere 3 Hardware Guide

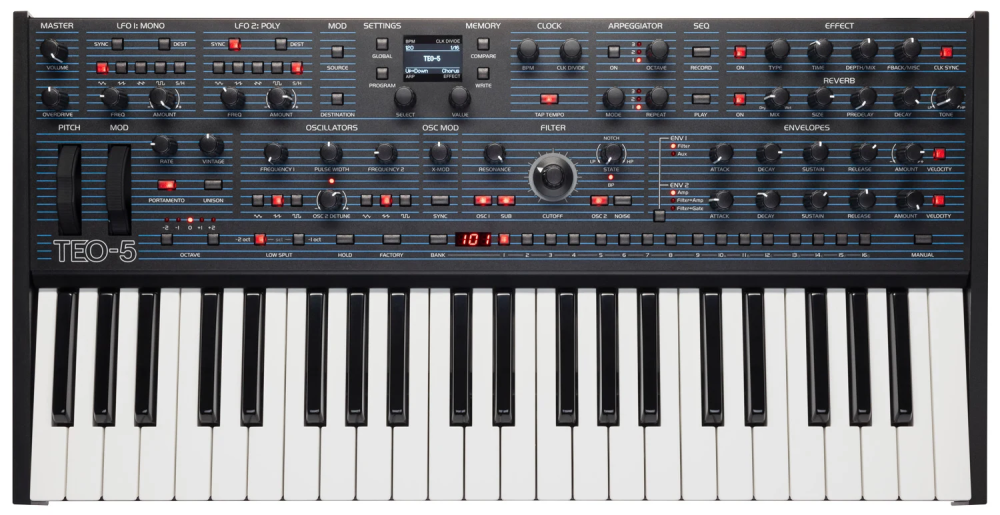

Setting Up the TEO-5

Setup

To control Omnisphere using the Oberheim TEO-5, you’ll need to do the following:

  • Using a USB cable, connect the TEO-5 to your computer.
  • Set up the front panel to send NRPNs.
  • Enable “TEO-5” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
  • Activate the TEO-5 Hardware Profile in Omnisphere 3 or later.

MIDI OUTPUT SETUP

  • Press the GLOBAL button to enter the Global menu.
  • Use the SELECT knob to navigate to parameter “MIDI Param Send”.
  • Use the VALUE knob to change the setting to NRPN.

HOST CONNECTION

Open your host (DAW, Standalone, etc.) and make sure the Oberheim TEO-5 is enabled as a MIDI input device.

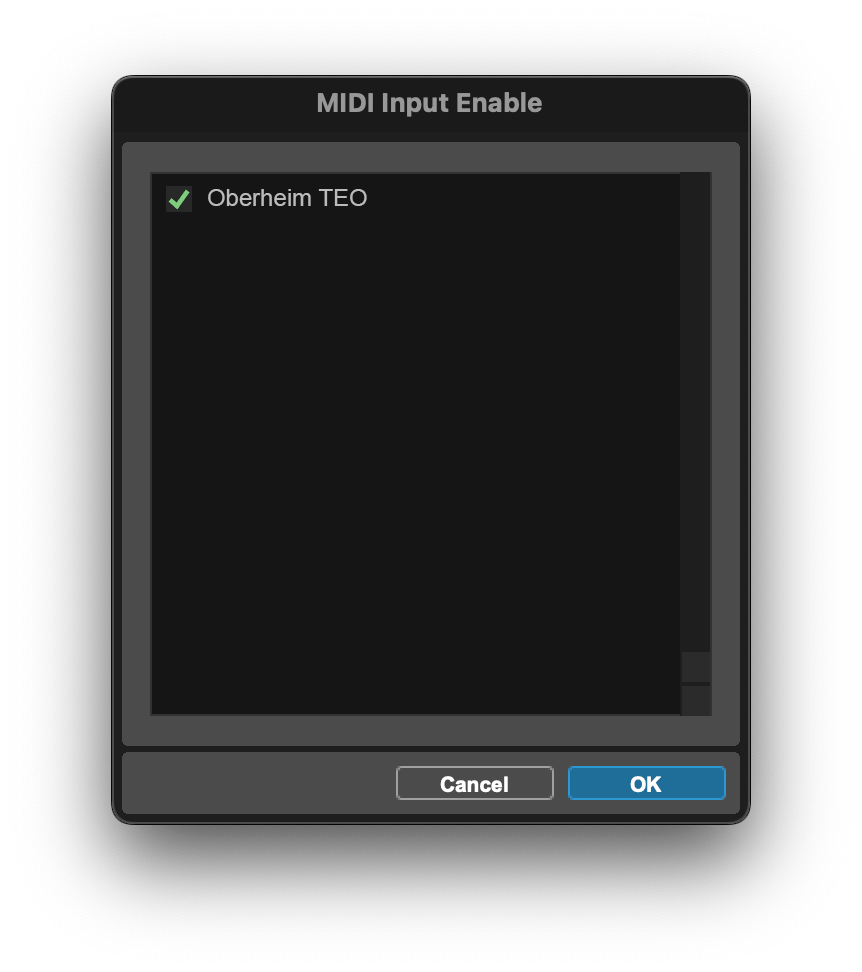

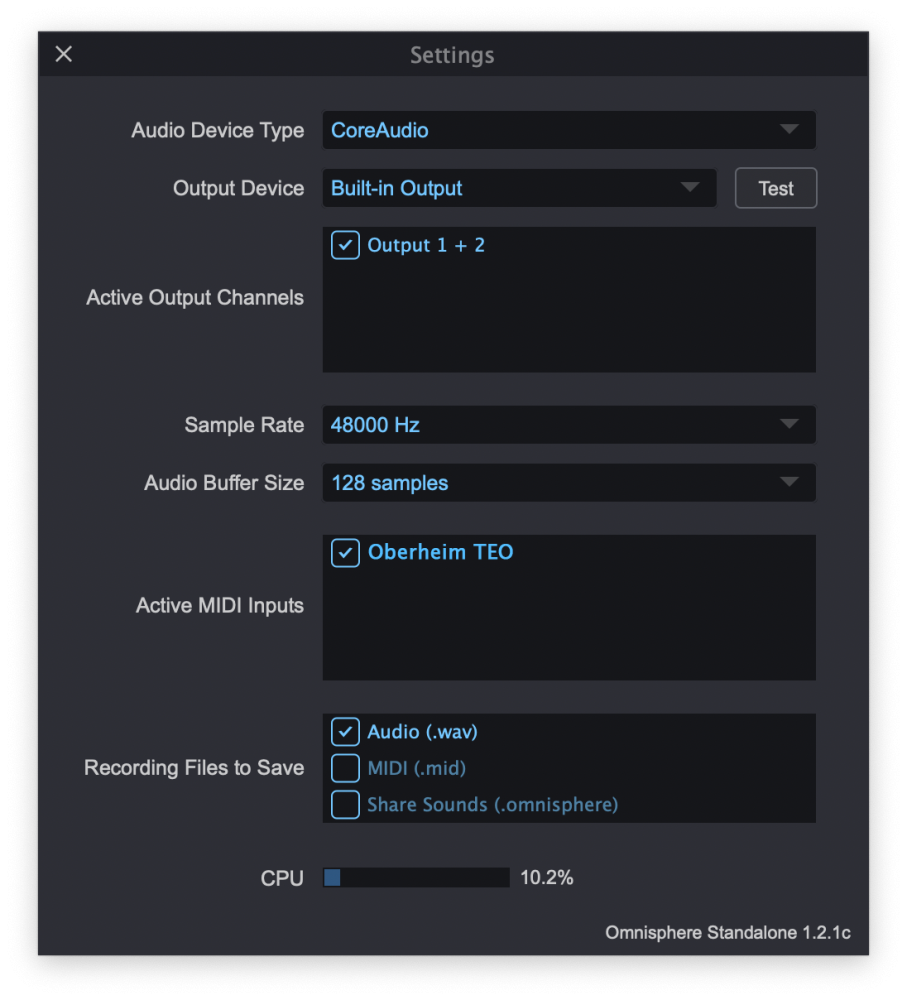

Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

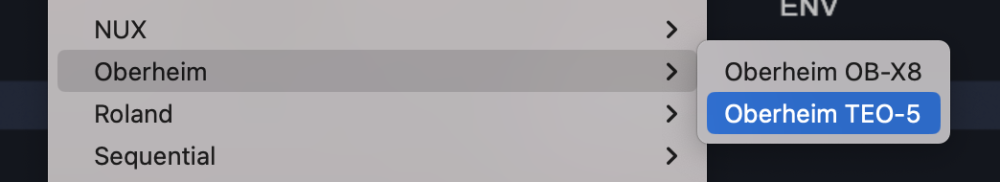

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “Oberheim>Oberheim TEO” to activate that Hardware Profile.


Profile Notes

  • ENV 1 is assigned to Omnisphere’s Global Filter Envelope
  • ENV 2 is assigned to Omnisphere’s Global Amp Envelope

Unassigned Controls

The following Oberheim TEO-5 controls have no effect on Omnisphere:

  • ENV 1/2 Toggle button

Troubleshooting

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the Oberheim TEO-5?
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Oberheim TEO-5 matches the MIDI channel of the Omnisphere Part you want to control.
  • Make sure your DAW is configured to correctly route the MIDI output of the Oberheim TEO-5 to the MIDI channel assigned to the desired Part in Omnisphere.
  • Are you using a USB hub? Try connecting your Oberheim TEO-5 or MIDI Interface directly to your computer.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
