Setting Up the Trigger-Finger

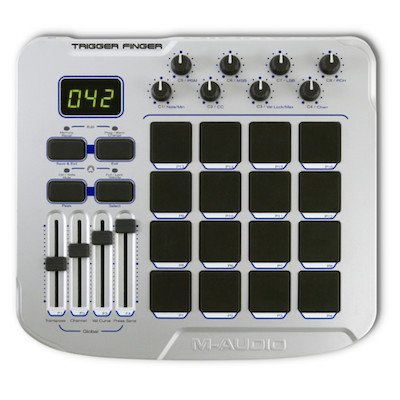

When using the M-Audio Trigger Finger to control Omnisphere, the knobs on the Trigger Finger are assigned to the following Omnisphere parameters:

• Knob 1 (CC#106) – Global Controls Cutoff
• Knob 2 (CC#107) – Global Controls Resonance
• Knob 3 (CC#108) – Global Controls Filter Envelope Amount
• Knob 4 (CC#109) – Global Controls Vibrato Depth
• Knob 5 (CC#110) – Global Controls Ambience Amount
• Knob 6 (CC#111) – Global Controls Ambience Length
• Knob 7 (CC#112) – Global Controls Glide
• Knob 8 (CC#113) – Global Controls Unison

• Slider 1 (CC#102) – Global Controls Amp and Filter Envelope Attack
• Slider 2 (CC#103) – Global Controls Amp and Filter Envelope Decay
• Slider 3 (CC#104) – Global Controls Amp and Filter Envelope Sustain
• Slider 4 (CC#105) – Global Controls Amp and Filter Envelope Release

Setup

To control Omnisphere using the Trigger Finger, you’ll need to do the following:

1. Connect the Trigger Finger to your computer via USB.
2. Set up the Trigger Finger to control Omnisphere.
3. Enable the Trigger Finger as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
4. Activate the Trigger Finger Hardware Profile in Omnisphere 3 or later.

TRIGGER FINGER SETUP

Omnisphere relies on the factory default settings of Preset 16 on the Trigger Finger for external control.

• You can quickly activate Preset 16 by pressing the [Memory Recall] button on the Trigger Finger and then press Pad 16.

HOST CONNECTION

• Open your host (DAW, Standalone, etc.) and make sure the Trigger Finger is enabled as a MIDI input device.

OMNISPHERE SETUP

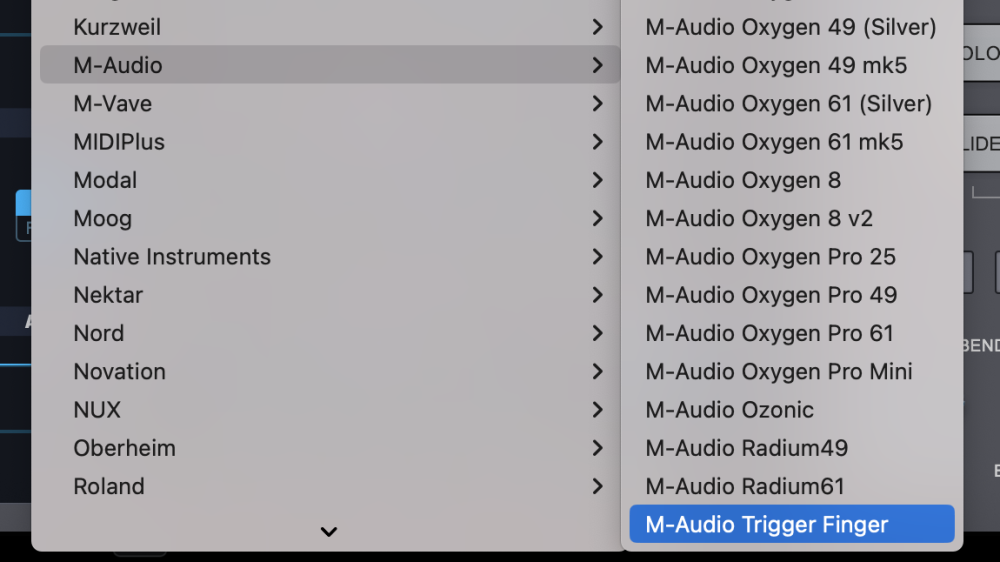

• Open Omnisphere and from the header, select the HW menu button.
• From the drop-down menu, select “M-Audio > M-Audio Trigger Finger” to activate the Trigger Finger hardware profile.

TROUBLESHOOTING

Not working? Here are some things to try:

• Is your DAW receiving MIDI from the Trigger Finger?
• Is your host not seeing the Trigger Finger as a MIDI input device? You may need to try connecting your Trigger Finger to your MIDI interface instead of using USB.
• Make sure your DAW is configured to correctly route the MIDI output of the Trigger Finger to the MIDI channel assigned to the desired part in Omnisphere.
• If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Trigger Finger matches the MIDI channel of the Omnisphere Part you want to control.
• Are the knobs on the Trigger Finger sending the correct MIDI CC messages?

*A simple way to check this is by recording knob movement in your DAW. If your knobs are sending different MIDI CC#s, then you’ll need to use M-Audio’s Enigma editor application to either restore Preset 16 or manually recofigure the preset to match the MIDI CC#s listed at the top of the page.

NOTE: M-Audio’s Enigma editor application is no longer supported on current operating systems. You’ll need to use an older computer in order to use the editor app.
SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
