Omnisphere 3 Hardware Guide

Setting up the Trigon-6

Setup

To control Omnisphere using the Sequential Trigon 6, you’ll need to do the following:

  • Connect the Trigon 6.
  • Set up the front panel of the Trigon 6 to send NRPNs via USB.
  • Enable “Sequential Trigon 6” as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  • Activate the Sequential Trigon 6 Hardware Profile in Omnisphere 3 or later.

MIDI OUTPUT SETUP

  • Press the GLOBAL button on the front panel.
  • Use the SELECT knob to navigate to parameter “MIDI Param Snd”.
  • Use the VALUE knob to set it to NRPN.
  • Press the GLOBAL button again to exit the menu and save the changes.

HOST CONNECTION

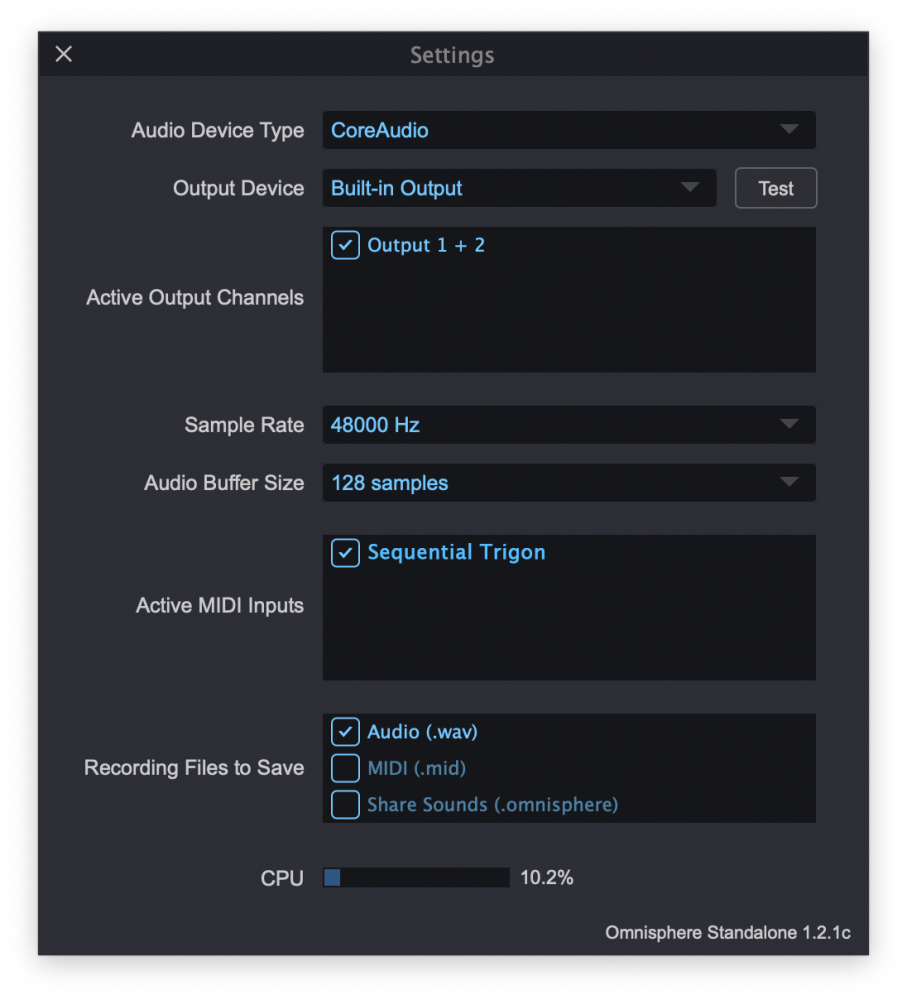

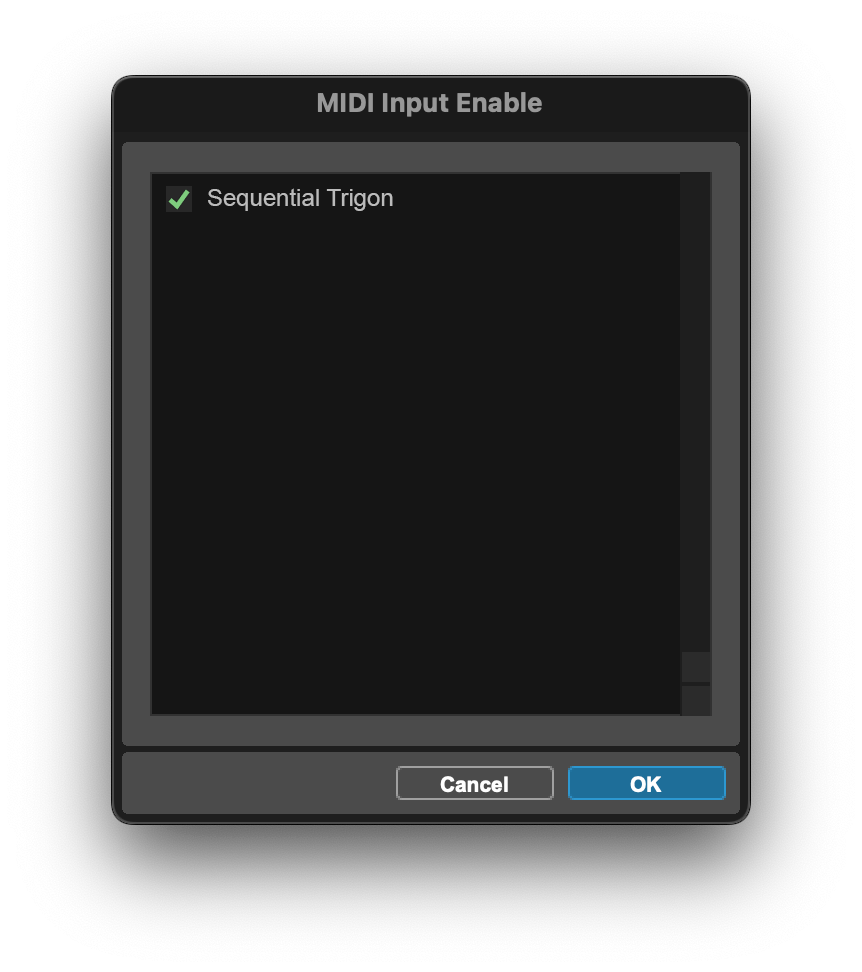

Open your host (DAW, Standalone, etc.) and make sure the Sequential Trigon 6 is enabled as a MIDI input device.
Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “Sequential>Sequential Trigon 6” to activate that Hardware Profile.


Unassigned Controls

The following Sequential Trigon 6 controls have no effect on Omnisphere:

  • Aftertouch FX Mix A
  • Aftertouch FX Mix B
  • Transpose
  • Hold
  • Key Mode

Troubleshooting

Not working? Here are some things to try:

  • Make sure the GLOBAL button is deselected on the Trigon-6.
  • Is your DAW receiving MIDI from the Sequential Trigon 6?
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the Trigon 6 matches the MIDI channel of the Omnisphere Part you want to control.
  • Make sure your DAW is configured to correctly route the MIDI output of the Trigon 6 to the MIDI channel assigned to the desired Part in Omnisphere.
  • Are you using a USB hub? Try connecting your Trigon 6 or MIDI Interface directly to your computer.
