Omnisphere 3 Hardware Guide

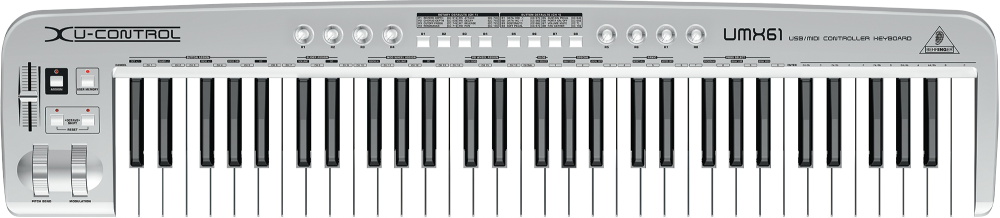

Setting Up the UMX61

When using the Behringer UMX61 to control Omnisphere, the knobs on the UMX61 are assigned to the following Omnisphere parameters:

Knob 1 (CC#91) – Global Controls Ambience Amount
Knob 2 (CC#93) – Global Controls Unison
Knob 3 (CC#74) – Global Controls Cutoff
Knob 4 (CC#71) – Global Controls Resonance
Knob 5 (CC#73) – Global Controls Amp and Filter Envelope Attack
Knob 6 (CC#75) – Global Controls Amp and Filter Envelope Decay
Knob 7 (CC#72) – Global Controls Amp and Filter Envelope Release
Knob 8 (CC#10) – Layer A, B, C, and D Pan

B1 (CC#97) – Patch Browser Down / Next Patch
B2 (CC#96) – Patch Browser Up / Previous Patch

Setup

To control Omnisphere using the UMX61, you’ll need to do the following:

  1. Connect the UMX61 to your computer’s MIDI interface.
  2. Set up the UMX61 to control Omnisphere.
  3. Enable the UMX61 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the UMX61 Hardware Profile in Omnisphere 3 or later.

THE UMX61 SETUP

Omnisphere relies on the default settings of the Factory Preset on the UMX61. Typically, the Factory preset is automatically activated when the UMX61 is turned ON.

  • If needed, you can quickly activate the Factory preset by turning the control OFF and back ON.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the UMX61 is enabled as a MIDI input device.

OMNISPHERE SETUP

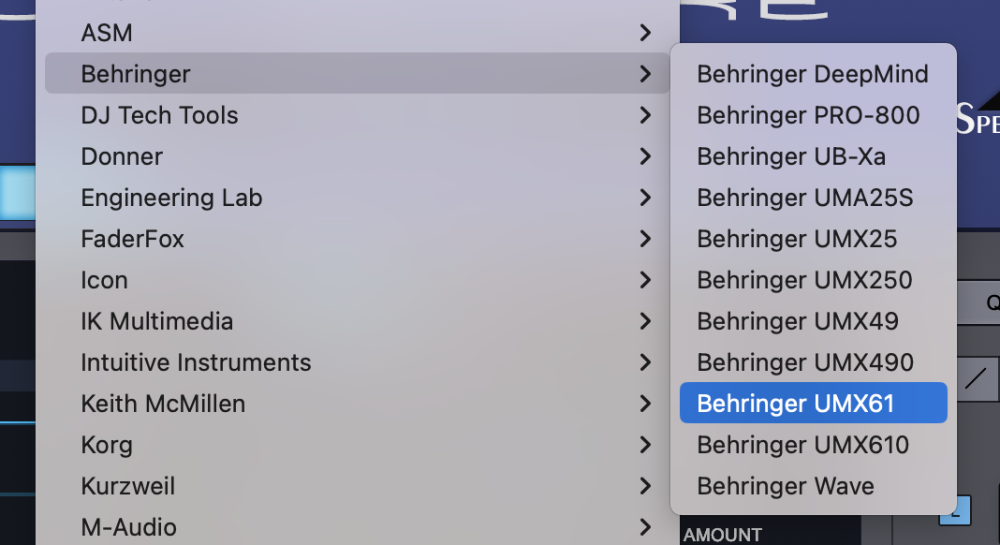

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Behringer >Behringer UMX61” to activate the UMX61 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the UMX61?
  • Make sure your DAW is configured to correctly route the MIDI output of the UMX61 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the UMX61 matches the MIDI channel of the Omnisphere Part you want to control.
  • Are the knobs and faders on the UMX61 sending the correct MIDI CC#s used to control Omnisphere? A simple way to check this is by using MIDI Monitor by Snoize or recording knob movement in your DAW. See the list at the top of the page for the correct MIDI CC#s.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
