Setting up the UNO Synth - Omnisphere 3 Hardware Guide

Setup

To control Omnisphere using the UNO Synth, you’ll need to do the following:

Using a USB cable, connect the UNO Synth to your computer.
Enable “UNO Synth” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
Activate the UNO Synth Hardware Profile in Omnisphere 3 or later.

HOST CONNECTION

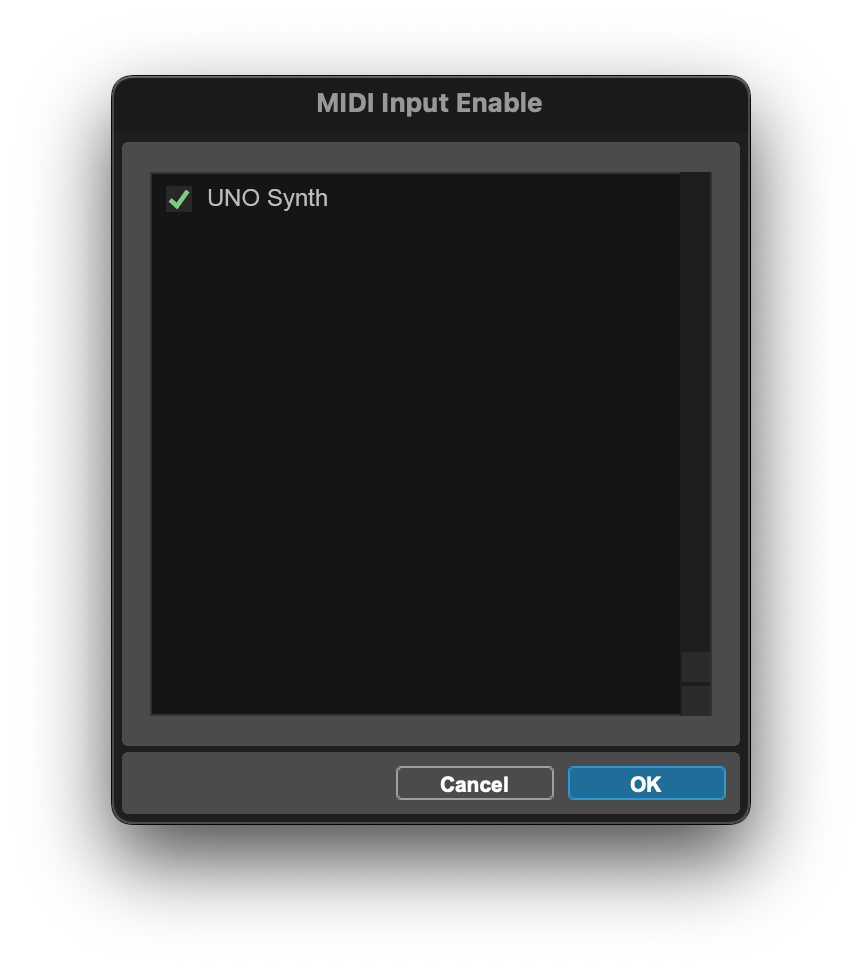

Open your host (DAW, Standalone, etc.) and make sure the Uno Synth is enabled as a MIDI input device.


Omnisphere Standalone	Pro Tools

OMNISPHERE SETUP

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “IK Multimedia>IK Multimedia UNO Synth Pro” to activate that Hardware Profile.

The UNO Synth Vibrato Depth and Vibrato performance button are both assigned to Global Vibrato Depth in Omnisphere.

The following UNO Synth controls have no effect on Omnisphere:

Not working? Here are some things to try:

Make sure the MIDI Channel is set to Ch.1.
If you are using the Omnisphere standalone host, make sure the MIDI output channel of the UNO Synth matches the MIDI channel of the Omnisphere part you want to control.
Make sure your DAW is configured to correctly route the MIDI output of the UNO Synth to the MIDI channel assigned to the desired Part in Omnisphere.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time
