Omnisphere 3 Hardware Guide

Setting up the JX-08

Setup

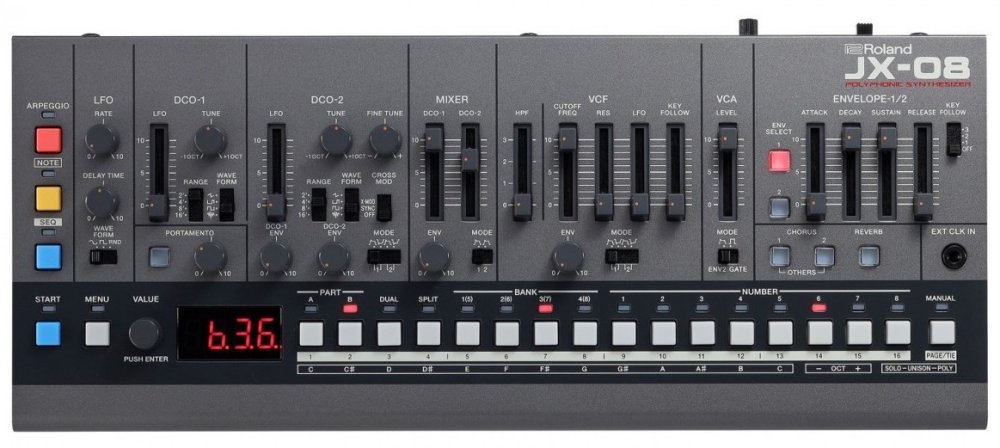

To control Omnisphere using the JX-08 you’ll need to do the following:

  • Using a USB cable, connect the JX-08 to your computer.
  • Verify that your JX-08 system firmware is up to date with v1.02 or higher.
  • Verify that your JX-08 is transmitting MIDI control through USB.
  • Download and install the appropriate JX-08 USB driver on your computer.
  • Enable “JX-08 Boutique” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
  • Activate the JX-08 Hardware Profile in Omnisphere 3 or later.

FIRMWARE

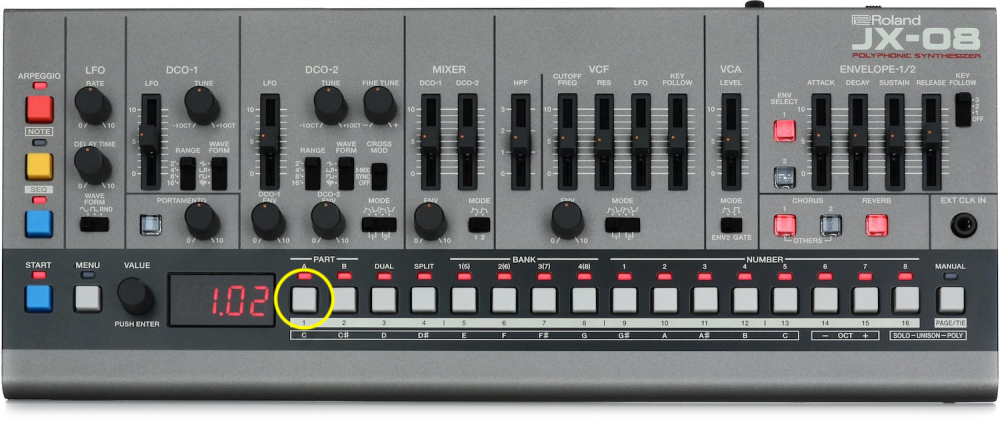

  • Check the firmware (system program version) of your JX-08 by holding down [PART A(1)] button switch on the power to the unit.

  • Wait several seconds and the system program version will shown in the display.
  • Restart the JX-08.
  • If those indicators are not lit as shown above, access the Roland website, download and install the latest JU-06A System Program version.

MIDI SETUP

  • To make sure the controls in your JX-08 transmit MIDI through USB, hold down the ARPEGGIO [ON/OFF] button, then press the [ BANK 11 ] button for CONTROL CHANGE OUTPUT MODE. Turn the VALUE knob to ALL.

USB DRIVER

  • Check to see if the necessary Boutique USB driver has already been installed by opening up the Omnisphere Standalone (or your preferred DAW) and verify the Roland JX-08 is on your list of MIDI inputs.
  • If the JX-08 is not listed as a MIDI input, download and install the driver that is compatible with your computer’s operating system from the Roland Support page. Restart the host and you should see it listed.

HOST CONNECTION

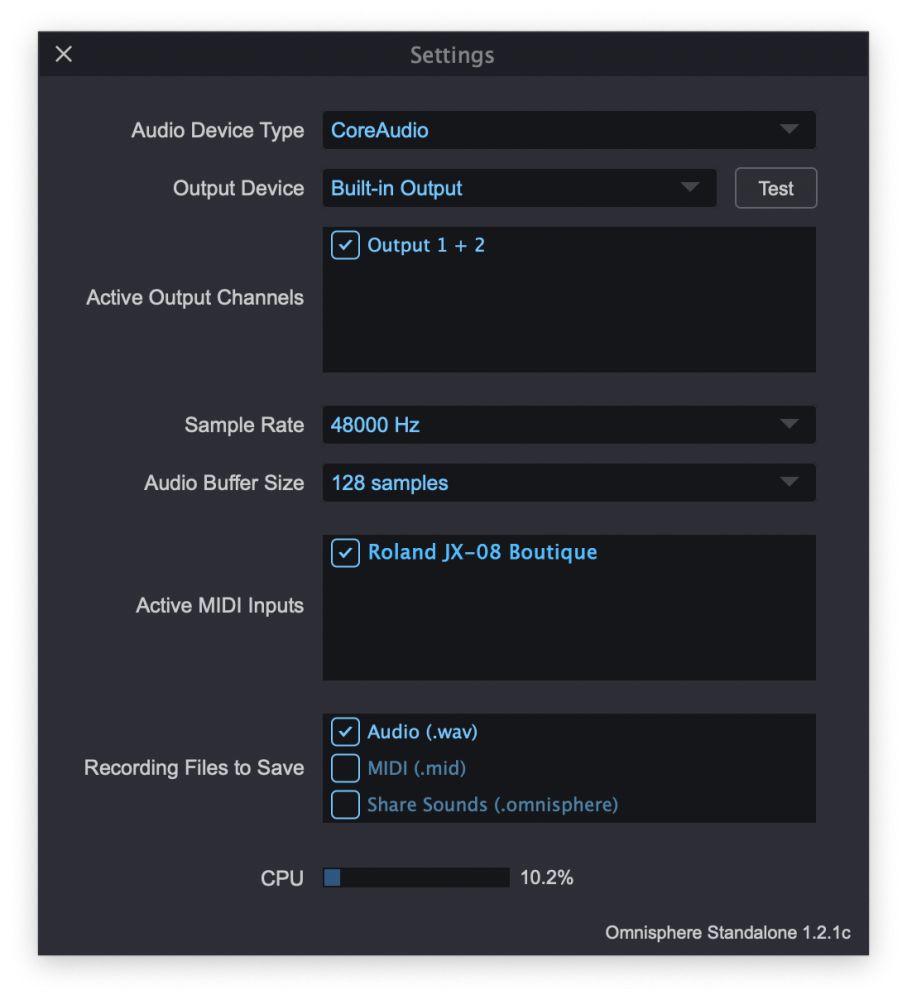

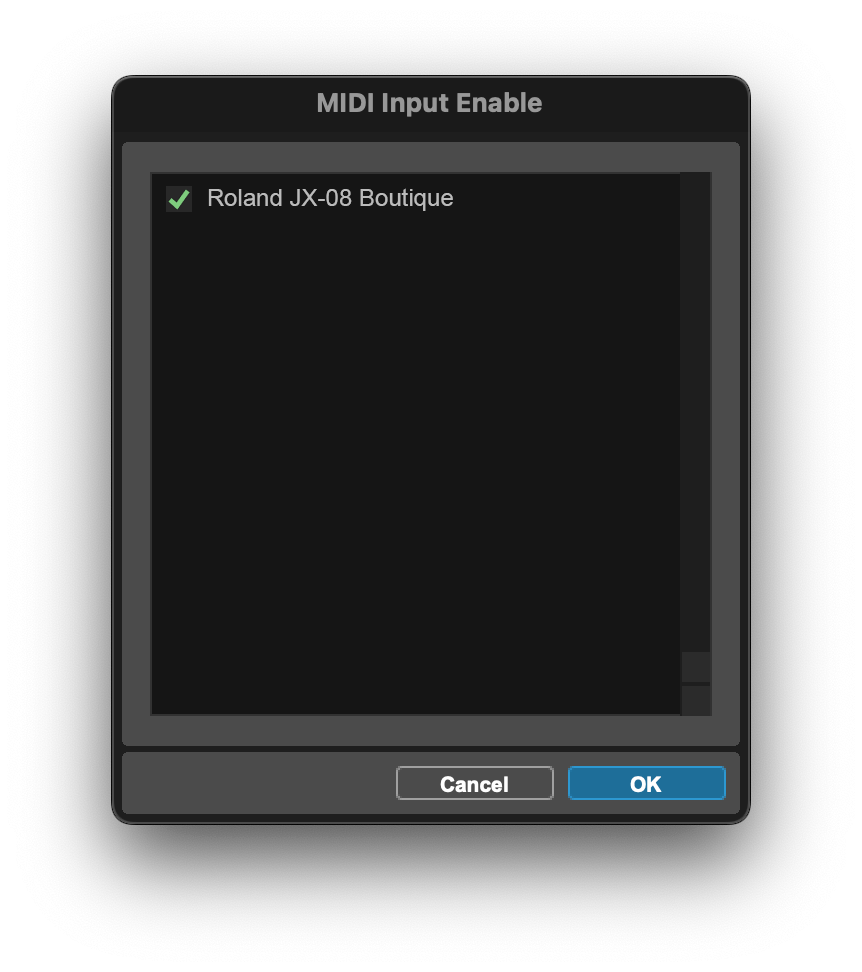

Open your host (DAW, Standalone, etc.) and make sure the JX-08 is enabled as a MIDI input device.
Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

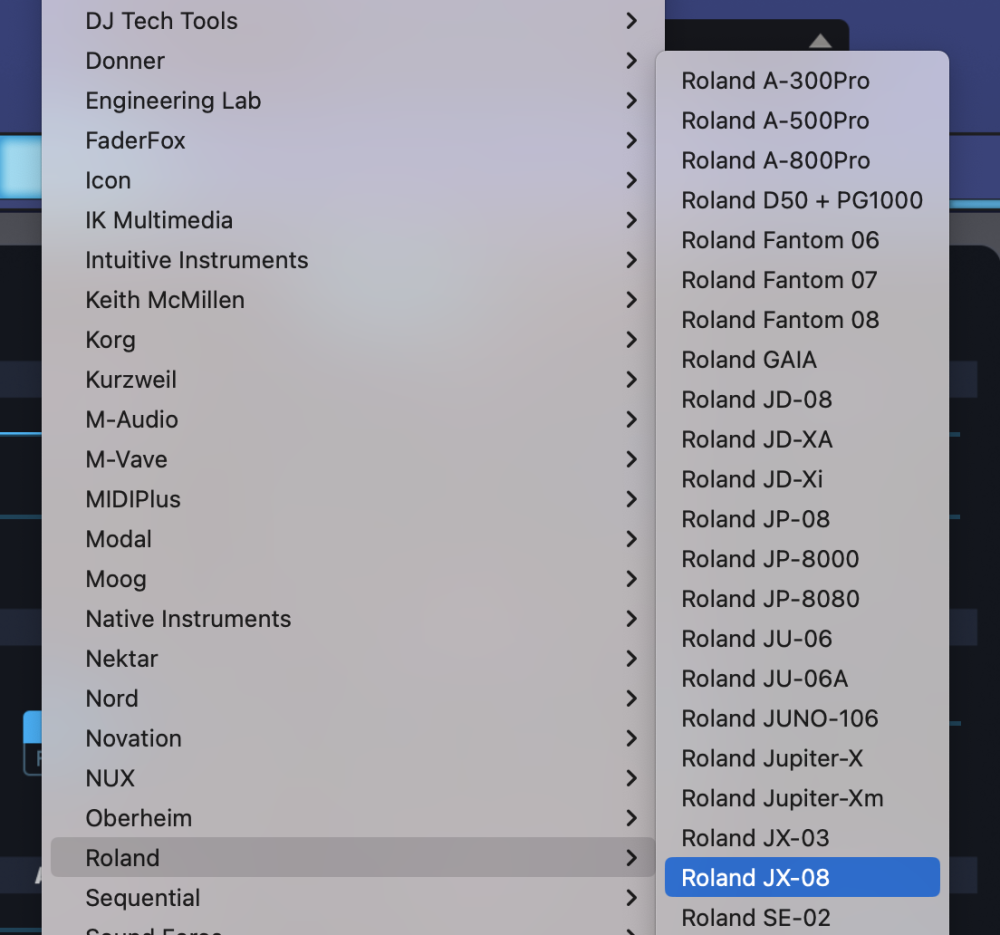

Open Omnisphere and from the header, select the HW menu button:

From the drop-down menu, select “Roland>Roland JX-08” to activate that Hardware Profile.



LOADING OMNISPHERE PATCHES FROM THE JX-08

If you want the load Omnisphere Patches from the JX-08, follow these steps:

  • In the Omnisphere Patch Browser, right-click the name of the Patch you want to load.
  • Select “MIDI Program Change Learn” from the menu.
  • On the JX-08, select the patch you wish to use.
  • A MIDI icon will appear next to the name of the Patch in the Omnisphere browser if the learning is successful.

Unassigned Controls

The following JX-08 controls have no effect on Omnisphere:

  • Arpeggio
  • Note
  • Seq
  • Start
  • Value
  • Chorus 1
  • Chorus 2
  • Reverb
  • Part A
  • Part B

Troubleshooting

Not working? Here are some things to try:

  • Make sure the MIDI Channel is set to Ch.1.
  • Is the Control Change Output Mode set up correctly?
  • Is your DAW receiving MIDI from the JX-08?

As a last resort, you can reset all Global parameters to the factory defaults by the following steps:

  • While holding down the [BANK 2] button, turn on the power. The [PAGE/TIE] button blinks. To cancel the factory reset, turn off the power.
  • Press the [PAGE/TIE] button.
  • Turn the power of the JX-08 off and then on again.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
