Omnisphere 3 Hardware Guide

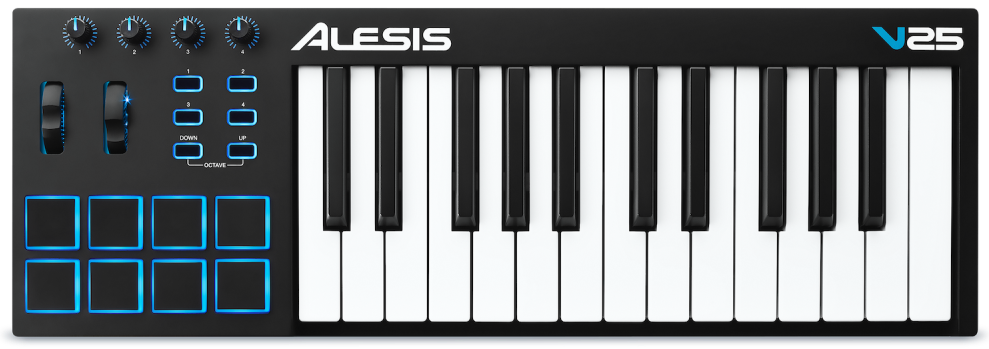

Setting Up the V25 mk1

When using the Alesis V25 mk1 to control Omnisphere, the knobs on the V25 mk1 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#20) – Global Controls Cutoff
  • Knob 2 (CC#21) – Global Controls Ambience Amount
  • Knob 3 (CC#22) – Global Controls Vibrato Depth
  • Knob 4 (CC#23) – Global Controls Glide

Setup

To control Omnisphere using the V25 mk1, you’ll need to do the following:

  1. Connect the V25 mk1 to your computer via USB.
  2. Set up the V25 mk1 to control Omnisphere.
  3. Enable the V25 mk1 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the V25 mk1 Hardware Profile in Omnisphere 3 or later.

V25 MK1 SETUP

Omnisphere relies on the factory default settings of the Alesis V25 mk1 for external control.

  • If you have not customized the MIDI CC#s of the knobs on the V25 mk1 using the Alesis V25 Editor then you can move on to the steps under “HOST CONNECTION.”
  • If you have changed the MIDI CC#s assigned to the knobs on the V25 mk1, please use the Alesis V25 Editor to reset the knobs to match the MIDI CC#s at the top of the page.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the V25 mk1 is enabled as a MIDI input device.

OMNISPHERE SETUP

  • Open Omnisphere and from the header, select the HW menu button.

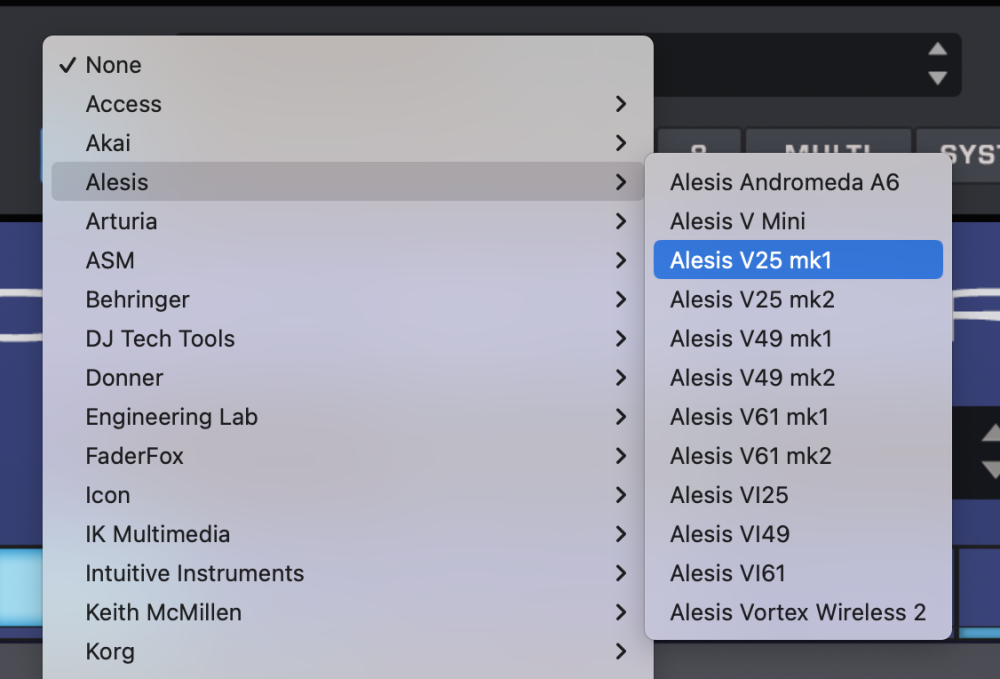

  • From the drop-down menu, select “Alesis > Alesis V25 mk1” to activate the V25 mk1 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the V25 mk1?
  • Make sure your DAW is configured to correctly route the MIDI output of the V25 mk1 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the V25 mk1 matches the MIDI channel of the Omnisphere Part you want to control.
