Omnisphere 3 Hardware Guide

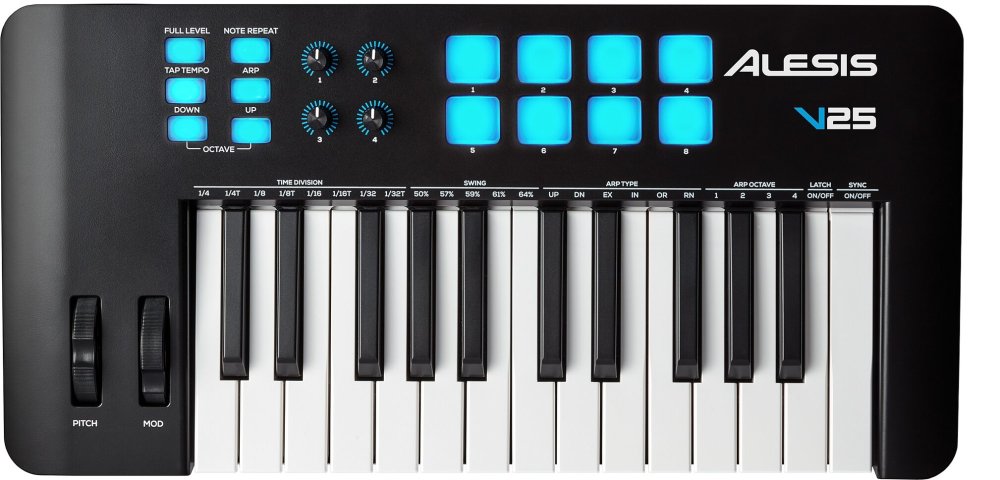

Setting Up the V25 mk2

When using the Alesis V25 mk2 to control Omnisphere, the knobs on the V25 mk2 are assigned to the following Omnisphere parameters:

  • Knob 1 (CC#74) – Global Controls Cutoff
  • Knob 2 (CC#75) – Global Controls Ambience Amount
  • Knob 3 (CC#76) – Global Controls Vibrato Depth
  • Knob 4 (CC#77) – Global Controls Glide

Setup

To control Omnisphere using the V25 mk2, you’ll need to do the following:

  1. Connect the V25 mk2 to your computer via USB.
  2. Set up the V25 mk2 to control Omnisphere.
  3. Enable the V25 mk2 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the V25 mk2 Hardware Profile in Omnisphere 3 or later.

ALESIS V25 MK2 SETUP

Omnisphere relies on the factory default settings of the Alesis V25 mk2 for external control.

  • If you have not customized the MIDI CC#s of the knobs on the V25 mk2 then you can move on to the next steps under “HOST CONNECTION.”
  • If you have changed the MIDI CC#s assigned to the knobs on the V25 mk2, please use the Alesis V Series MKII Editor to reset the knobs to match the MIDI CC#s at the top of the page.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the V25 mk2 is enabled as a MIDI input device.

OMNISPHERE SETUP

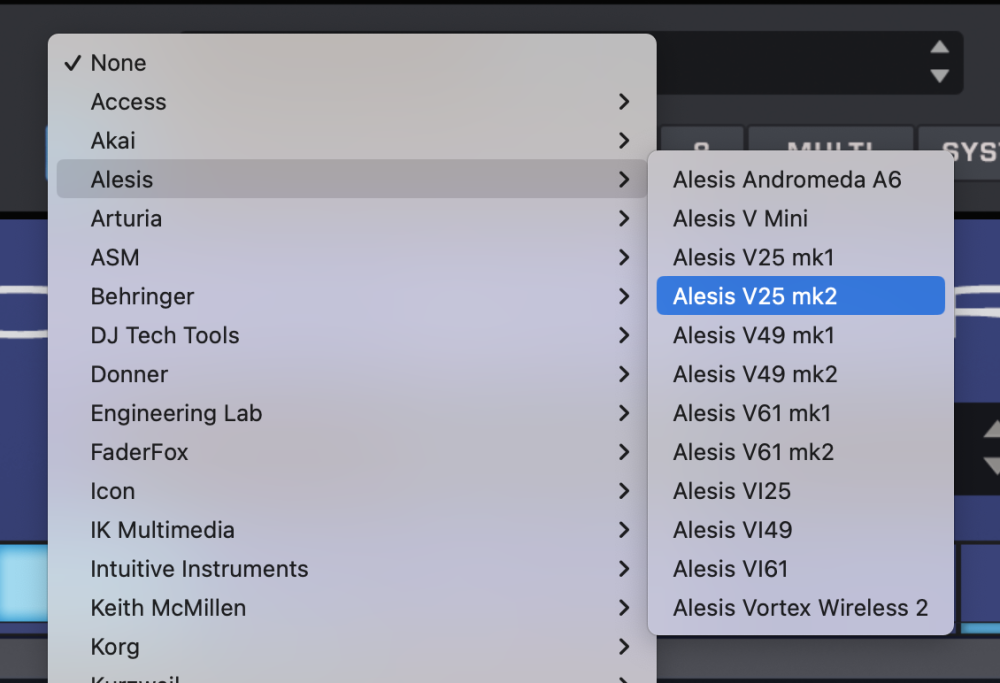

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Alesis > Alesis V25 mk2” to activate the V25 mk2 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the V25 mk2?
  • Make sure your DAW is configured to correctly route the MIDI output of the V25 mk2 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the V25 mk2 matches the MIDI channel of the Omnisphere Part you want to control.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
