Omnisphere 3 Hardware Guide

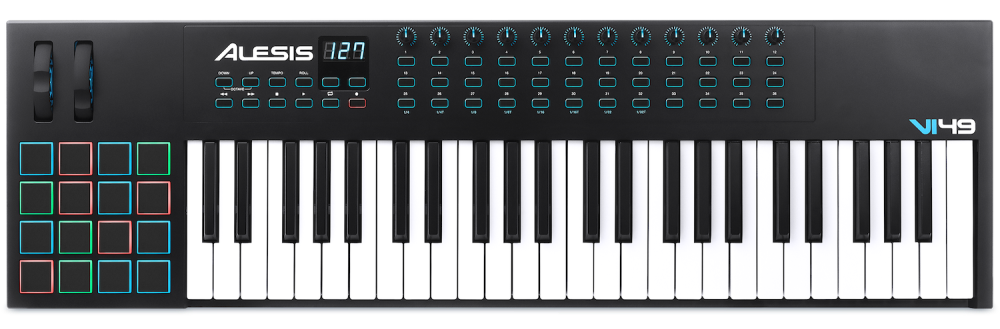

Setting Up the VI49

When using the Alesis VI49 to control Omnisphere, the Knobs on the VI49 are assigned to the following Omnisphere parameters:

  • Knob 01 (CC#20) – Global Controls Cutoff
  • Knob 02 (CC#21) – Global Controls Resonance
  • Knob 03 (CC#22) – Global Controls Filter Envelope Amount
  • Knob 04 (CC#23) – Global Controls Vibrato Depth
  • Knob 05 (CC#24) – Global Controls Vibrato Rate
  • Knob 06 (CC#25) – Global Controls Ambience Amount
  • Knob 07 (CC#26) – Global Controls Ambience Length
  • Knob 08 (CC#27) – Global Controls EQ Low
  • Knob 09 (CC#28) – Global Controls EQ Mid
  • Knob 10 (CC#29) – Global Controls EQ High
  • Knob 11 (CC#30) – Global Controls Unison
  • Knob 12 (CC#31) – Global Controls Glide

Setup

To control Omnisphere using the VI49, you’ll need to do the following:

  1. Connect the VI49 to your computer via USB.
  2. Set up the VI49 to control Omnisphere.
  3. Enable the VI49 as a MIDI input device in the host software you’re using (DAW, Standalone, etc.).
  4. Activate the VI49 Hardware Profile in Omnisphere 3 or later.

ALESIS VI49 SETUP

Omnisphere relies on the factory default settings of any blank Preset on the Alesis VI49 for external control.

  • If you haven’t customized any Presets on the VI49, then you can move on to the next steps under “HOST CONNECTION.”
  • If you have customized any of the 25 available Presets on the VI49, you can simply load a new/ unused Preset that has not been customized using the Preset UP and DOWN arrow buttons located below the LCD display
  • If you have customized all available Presets on the VI49 then you’ll need to use the Alesis VI49 Preset Editor to make a Preset that matches each knob to the MIDI CC#s at the top of the page.

HOST CONNECTION

  • Open your host (DAW, Standalone, etc.) and make sure the VI49 is enabled as a MIDI input device.

OMNISPHERE SETUP

  • Open Omnisphere and from the header, select the HW menu button.
  • From the drop-down menu, select “Alesis > Alesis VI49” to activate the VI49 Hardware Profile.

TROUBLESHOOTING

Not working? Here are some things to try:

  • Is your DAW receiving MIDI from the VI49?
  • Make sure your DAW is configured to correctly route the MIDI output of the VI49 to the MIDI channel assigned to the desired part in Omnisphere.
  • If you are using the Omnisphere standalone host, make sure the MIDI output channel of the VI49 matches the MIDI channel of the Omnisphere Part you want to control.

SUPPORT

Still not working? More questions?

Feel free to contact us directly and we can work with you:

Tech Support
888-870-4223 toll free
818-955-8444
Monday – Friday 10AM – 5PM Pacific Time

email: info@spectrasonics.net
