Setup

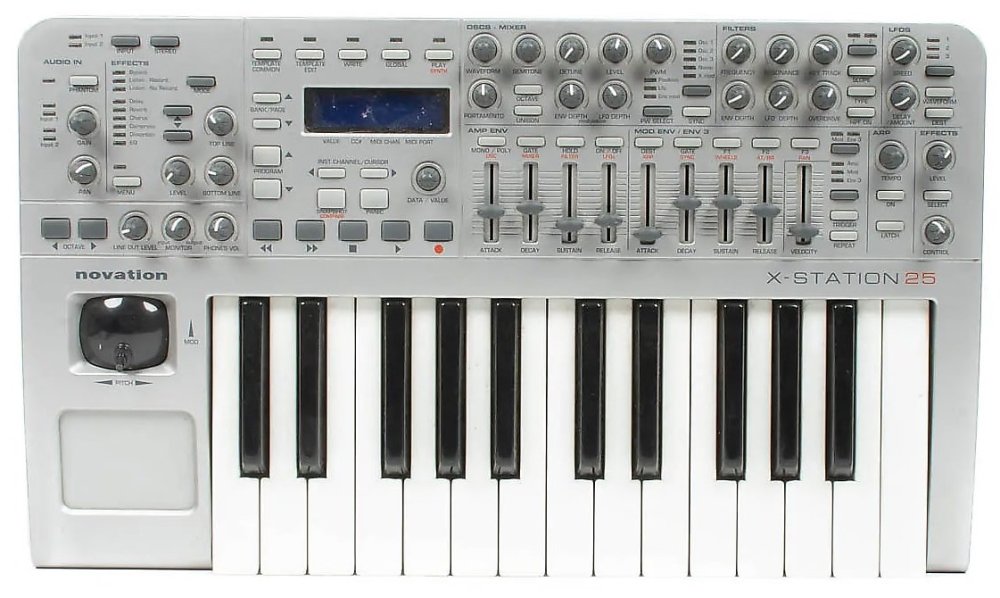

To control Omnisphere using the Novation X-Station, you’ll need to do the following:
- Using a USB cable, connect the X-Station to your computer.
- Enable “X-Station” as a MIDI input device to Omnisphere in the host software you’re using (DAW, Standalone, etc.).
- Activate the X-Station Hardware Profile in Omnisphere 3 or later.

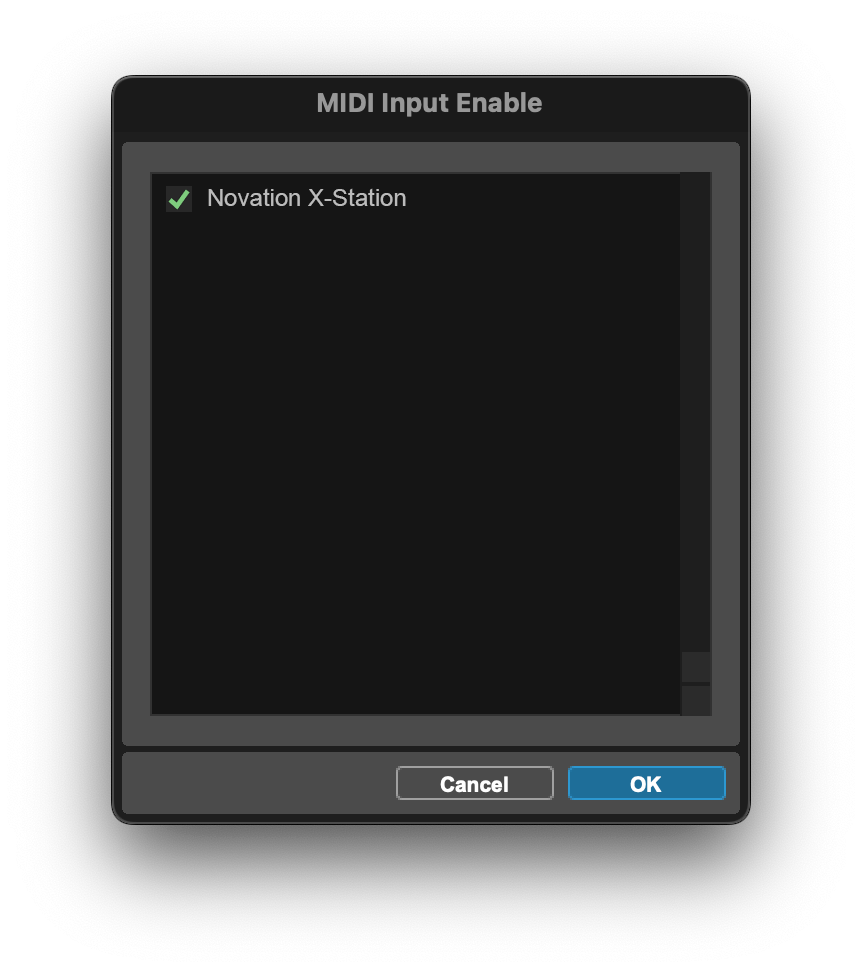

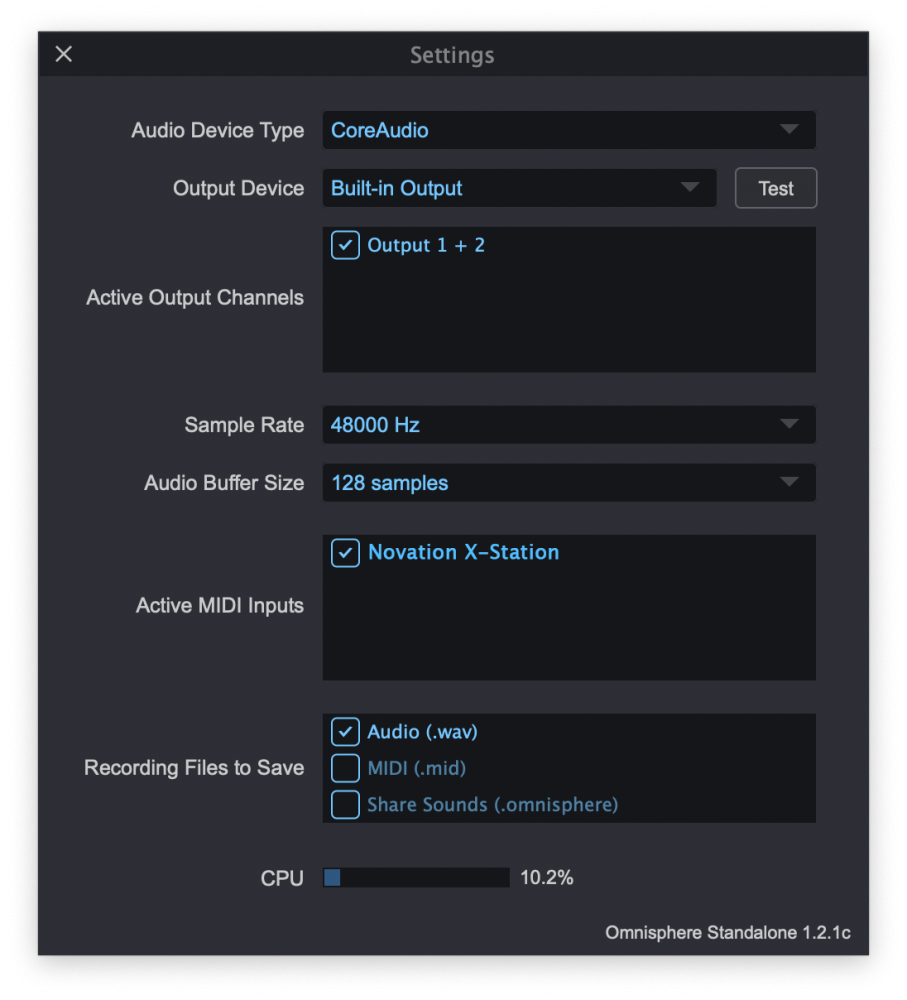

HOST CONNECTION
Open your host (DAW, Standalone, etc.) and make sure the Uno Synth is enabled as a MIDI input device.
 |
 |
| Omnisphere Standalone | Pro Tools |
OMNISPHERE SETUP

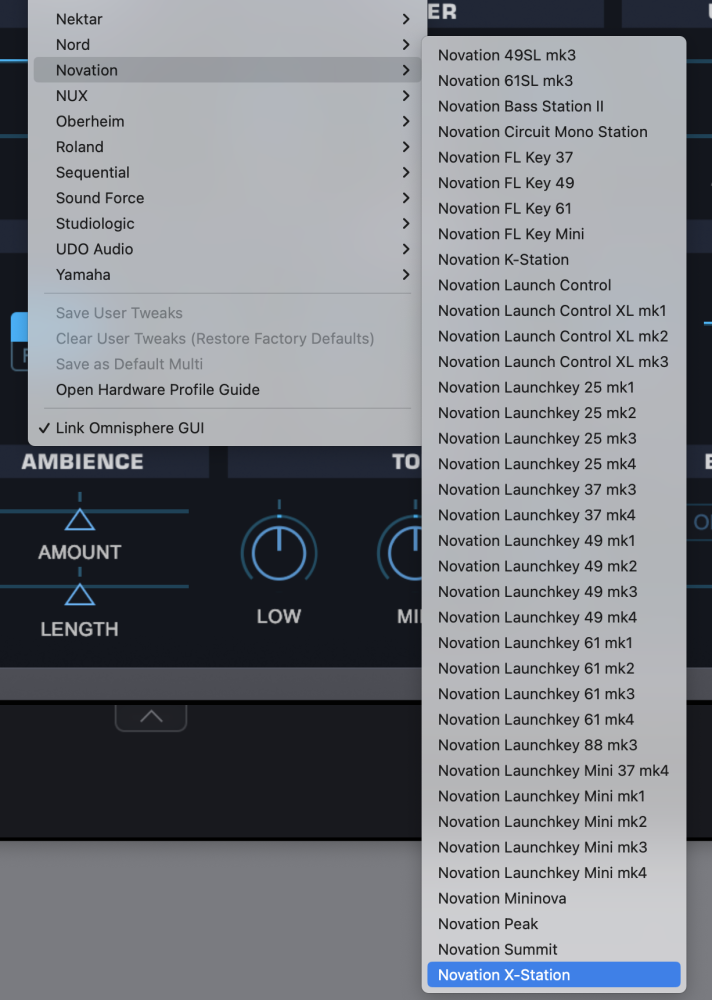

Open Omnisphere and from the header, select the HW menu button:
From the drop-down menu, select “Novation>Novation X-Station” to activate that Hardware Profile.
Profile Notes
The OSCILLATOR LFO DEPTH and LFO1 SPEED in the X-Station are assigned to Global Vibrato Depth and Rate in Omnisphere. The LFO1 DELAY knob and LFO1 WAVEFORM button are not supported.
Unassigned Controls
The following X-Station controls have no effect on Omnisphere:
- AUDIO IN Section
- EFFECTS Section
- LINE OUT LEVEL
- MONITOR
- PHONES VOL
- TEMPLATE COMMON
- TEMPLATE EDIT
- WRITE
- GLOBAL
- PLAY
- BANK/PAGE
- PROGRAM
- INST CHANNEL/CURSOR
- SNAPSHOT
- PANIC
- DATA/VALUE
- TRANSPORT CONTROLS
- HPF ON
- ENVELOPE SWITCHES
Troubleshooting
Not working? Here are some things to try:
- Make sure the MIDI Channel is set to Ch.1.
- If you are using the Omnisphere standalone host, make sure the MIDI output channel of the X-Station matches the MIDI channel of the Omnisphere part you want to control.
- Make sure your DAW is configured to correctly route the MIDI output of the X-Station to the MIDI channel assigned to the desired Part in Omnisphere.
