Setting up the Virus B

Setup

To control Omnisphere using the Access Virus B, you’ll need to do the following:

  • Using a MIDI cable, connect the Virus B to your MIDI interface.

  • Set up the front panel controls to to send MIDI CCs.

  • Make certain your MIDI interface is configured as the input in the host software you’re using (DAW, Standalone, etc.).

  • Activate the Access Virus B Hardware Profile in Omnisphere 2.5 or higher.

FRONT PANEL SETUP

To set up the front panel controls on the Virus A to send MIDI, follow these steps:

  • Press CRTL and using the PARAMETER buttons go to the “1 MIDI Panel” page.
  • Use the VALUE buttons to set it to “Int+MIDI.”
  • Then use PARAMETER buttons go to “1 MIDI CONTROL LoPage.”
  • Use the VALUE buttons to set it to “Contr.”

You can set up the DEFINABLE 1 and 2 knobs to control Effects Send and Noise level by following these steps:

  • Press CRTL and using the PARAMETER buttons go to the “1 DEFINABLE 1 Mode” page.
  • Use the VALUE buttons to set it to “MidiContrl.”
  • Use the PARAMETER buttons go to the “1 DEF 1 MIDI” page.
  • Use the VALUE buttons to set it to “12.”
  • Use the PARAMETER buttons go to the “1 DEFINABLE 2 Mode” page.
  • Use the VALUE buttons to set it to “MidiContrl.”
  • Use the PARAMETER buttons go to the “1 DEF 2 MIDI” page.
  • Use the VALUE buttons to set it to”*37.”

HOST CONNECTION

Open your host (DAW, Standalone, etc.) and make sure the MIDI interface to which you’ve connected the Access Virus B is enabled as a MIDI input device.
Omnisphere Standalone Pro Tools

OMNISPHERE SETUP

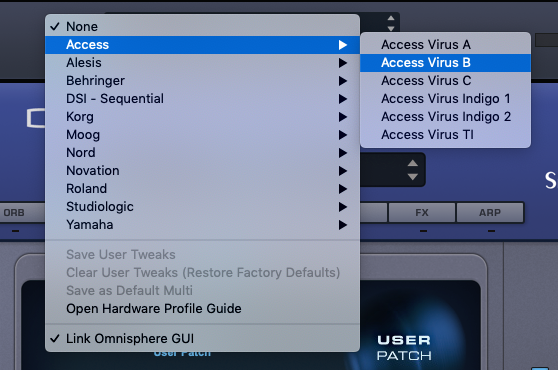

Open Omnisphere and from the header, select the HW menu button:

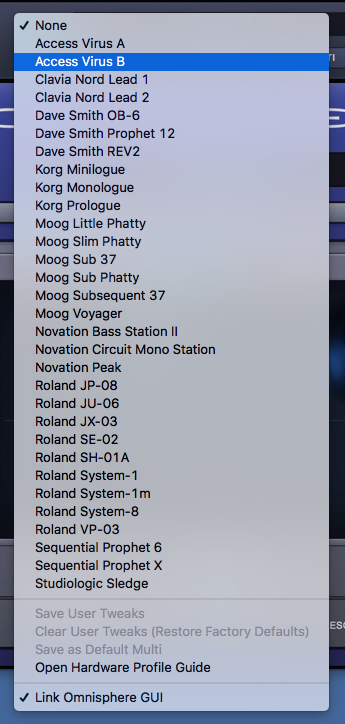

From the drop-down menu, select “Access>Access Virus B” to activate that hardware profile.

Unassigned Controls

The following Virus B controls have no effect on Omnisphere:

  • Master Volume

Troubleshooting

Not working? Here are some things to try:

  • Make sure the MIDI Channel is set to Ch.1.
  • Is the front panel of the Virus properly set up to send CCs?

As a last resort, you can reset all Global parameters to the factory defaults by doing the following (NOTE: Pressing the SINGLE button during this process will erase your custom presets):

  • Turn the unit’s power OFF.
  • Hold down both of the LFO SHAPE 1 and LFO SHAPE 2 buttons while powering the unit ON.
  • Once the unit powers on, you will be given the option to erase or keep your custom presets.
  • To keep your presets intact but reset Global parameters only, press any button other than SINGLE for each prompt that appears.
