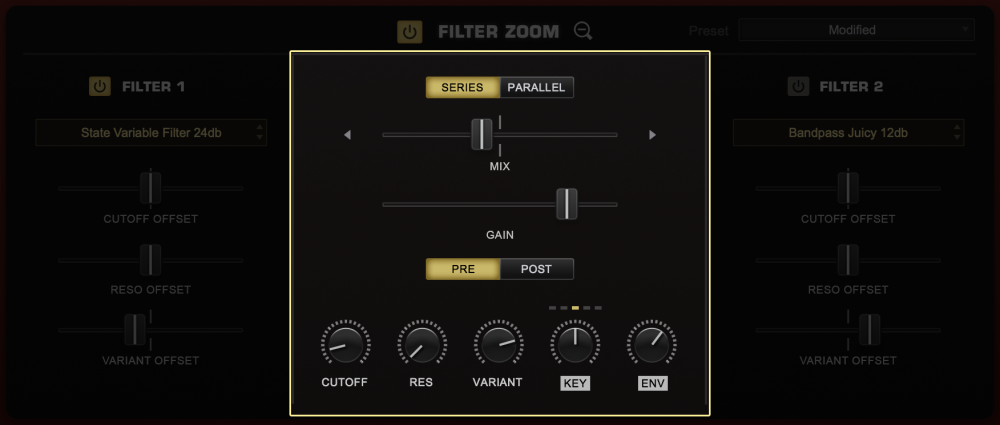

The central part of the FILTER ZOOM section is dedicated for controls that are common to both of the Filters, including the ability to route to two Filters in parallel or series and to place them before or after the Amplifier.

The CUTOFF, RES, VARIANT, KEY, ENV, and GAIN controls mirror those in the Filter section on the LAYER pages. Any changes made to these controls are reflected on both pages.

SERIES / PARALLEL

When Trilian’s two Filters are in “Series,” the output of FILTER 1 is feeding into FILTER 2 and affects the character of FILTER 2. When the two Filters are in Series, the Mix control is not in use. “Parallel“ indicates the two Filters are both working, but they are not directly affecting the other—they are operating side-by-side and mixed together. The MIX controls the balance between the two filters.

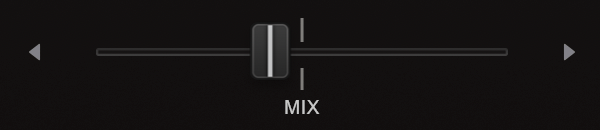

MIX

In Parallel mode, each of the two Filters pass thru the Filter Mixer, and the MIX control determines how much of each filter is heard. Centering the slider will allow both filters to be heard equally, and sliding it to the right or left will favor one over the other.
Range 100.00 to 00.100 (50.50 is the center point)

MIX is modulatable.

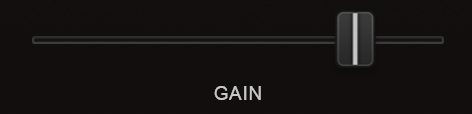

GAIN

GAIN adjusts the level of the input or output of the Filter Module depending on the Pre & Post setting.
Range between – inf (0) and +9.54.dB

GAIN is modulatable.

PRE / POST

The Dual-Filter can be placed before or after the GAIN Control. These switches determine if the GAIN Control will be used before or after the Filter. Aggressive Filter sounds will have a different character depending if PRE or POST is enabled.

PRE

The GAIN Control is applied before the Filters.

POST

The GAIN Control is applied after the Filters.
