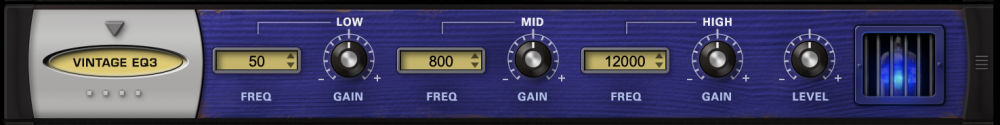

The Vintage 3-Band EQ is modeled after the great fixed-frequency design of the vintage Pultec™ EQP series tube equalizers, which are renowned for their extremely musical and fat tones that can have a lot of gain without getting harsh.

  • [LOW] FREQ
    Drop-down menu that provides frequency options of 20, 30, 50, 60, 75, 100, and 200 Hertz
  • [LOW] GAIN
    Adjusts the gain of the Low Band.
    Range: -20 ~ +20 dB
  • [MID] FREQ
    Drop-down menu that provides Frequency choices. Choices: 300, 500, 800, 1200, and 1600 Hz
  • [MID] GAIN
    Adjusts the gain of the Mid Band.
    Range: -20 ~ +20 dB
  • [HIGH] FREQ
    Drop-down menu that provides frequency choices of 2000, 3000, 4000, 5000, 8000, 10000, 12000, 140000, 16000, and 18000 Hertz
  • [HIGH] GAIN
    Adjusts the gain of the High Band.
    Range: -20 ~ +20 dB
  • LEVEL
    Adjusts the overall output.
    Range: 0 ~ 13 dB
