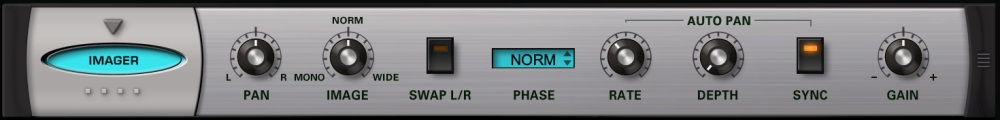

The Imager is a “Swiss Army Knife” utility device that can be used as a panner, stereo/mono image control, L/R channel inverter, phase corrector, auto-panner, and gain control.

  • PAN
    Controls the placement and balance of the audio within the stereo field.
    Range: -100% Left to 100% Right
    Controls the stereo width of the audio. Center is normal stereo.
    Range: Mono ( -100%) to Wide Stereo (+100%)
  • SWAP L/R
    Allows you to swap the Left and Right Channels of a stereo audio source.
    Options: L/R, R/L
    Allows control over phase relationship between Left and Right Channels.
    Menu options: Normal, Inverted, Inverted-Left Channel, Inverted-Right Channel
    Controls how fast or slow the auto-panning will occur.
    When Synced: 16x, 8x, 7x, 6x, 5x, 4x, 3x, 2x, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/2D, 1/4D, 1/8D, 1/16D, 1/2T, 1/4T, 1/8T, 1/16T
    Unsynced: 0 to 8.8 Hz
    Controls how much auto-panning occurs.
    Range: OFF to 100%
    Engages and disengages auto-pan synchronization with the host’s tempo.
  • GAIN
    Adjusts the overall output volume.
    Range: 0 to 13 dB
